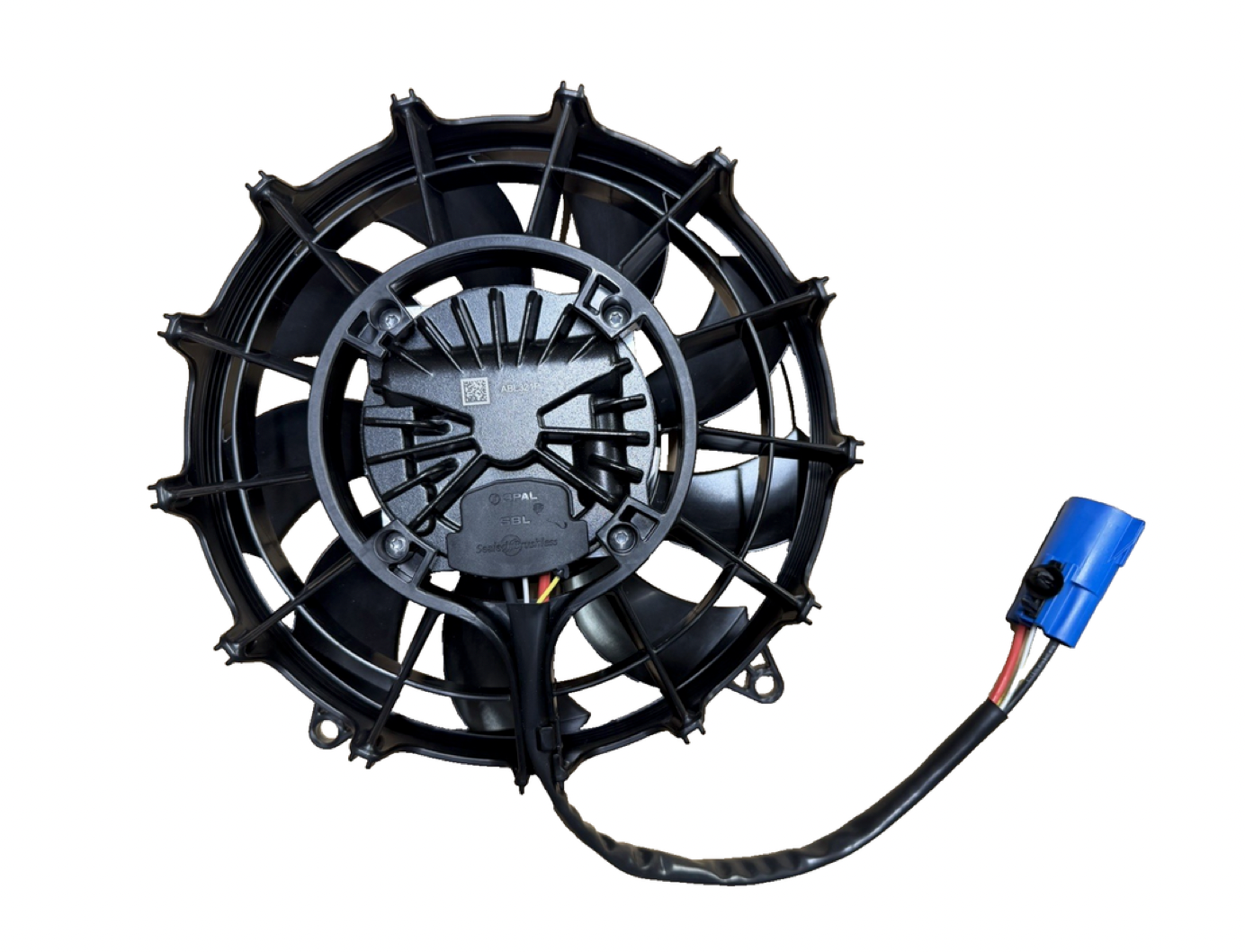

VA109-ABL321P/N-109A/SH For SPAL Brushless Fan 10" (255mm) 12V OEM SPAL

We are a 100% U.S.-based business operating out of Florida. We create local jobs and fully comply with all U.S. tax obligations. When you choose our products, you support an American company dedicated to quality, integrity, and exceptional service.

Our company offers premium universal A/C kits compatible with classic cars, hot rods, antique vehicles, trucks, and a wide variety of custom projects. Designed for performance and reliability, our products are ideal for restorations, upgrades, and complete custom builds.

BRAND NEW OEM SPAL

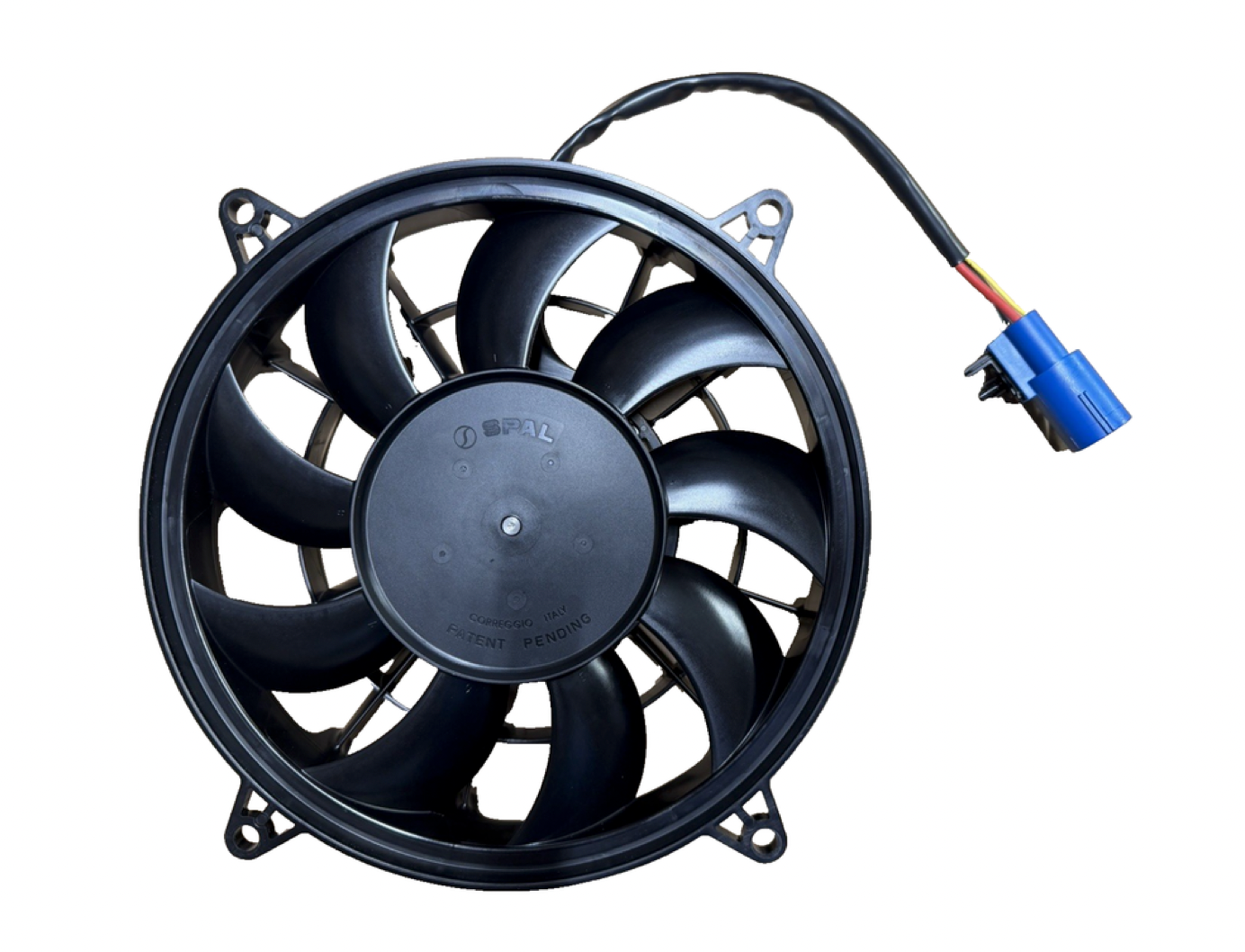

SPAL brushless axial fan, mainly used in automotive A/C systems, mobile HVAC, buses, heavy equipment, and industrial cooling applications.

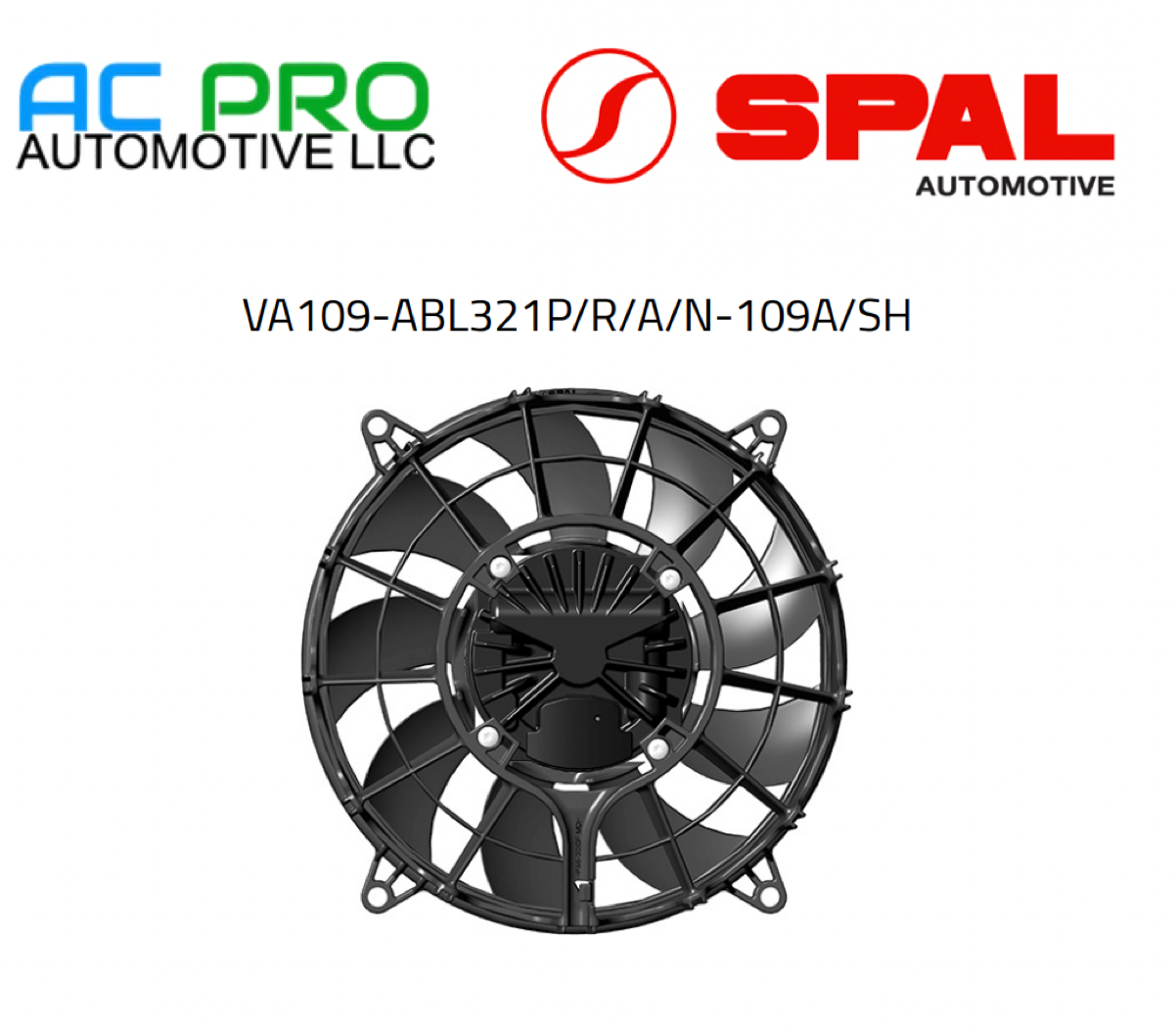

VA109-ABL321P/N-109A/SH For SPAL Brushless Fan 10" (255mm) 12V.

Model:

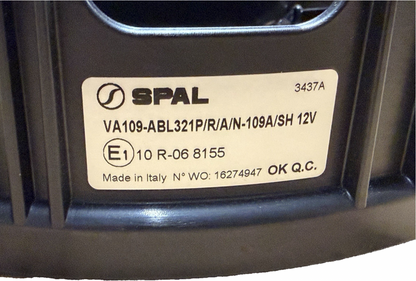

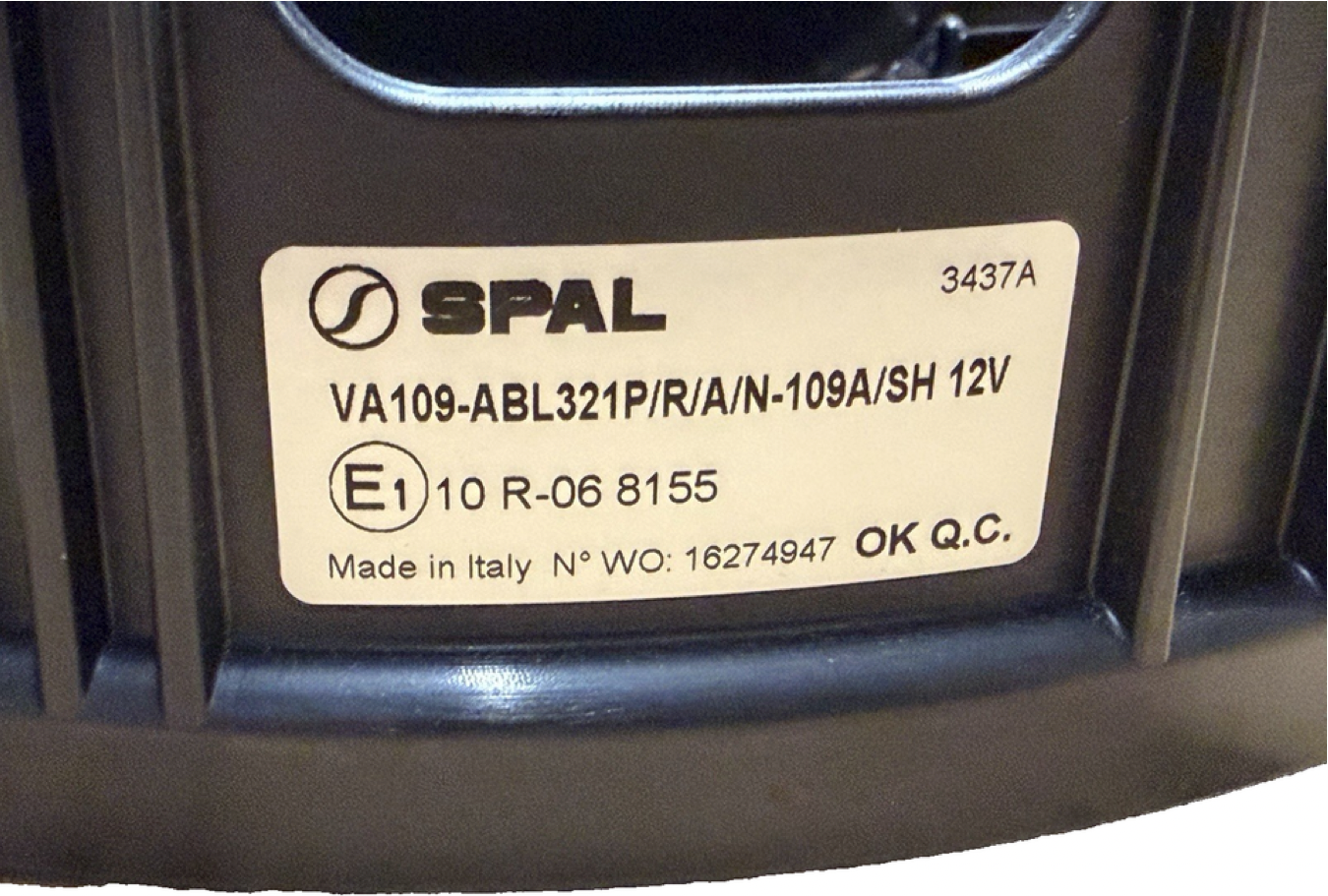

VA109-ABL321P/R/A/N-109A/SH 12V

Technical specifications:

• Voltage: 12V

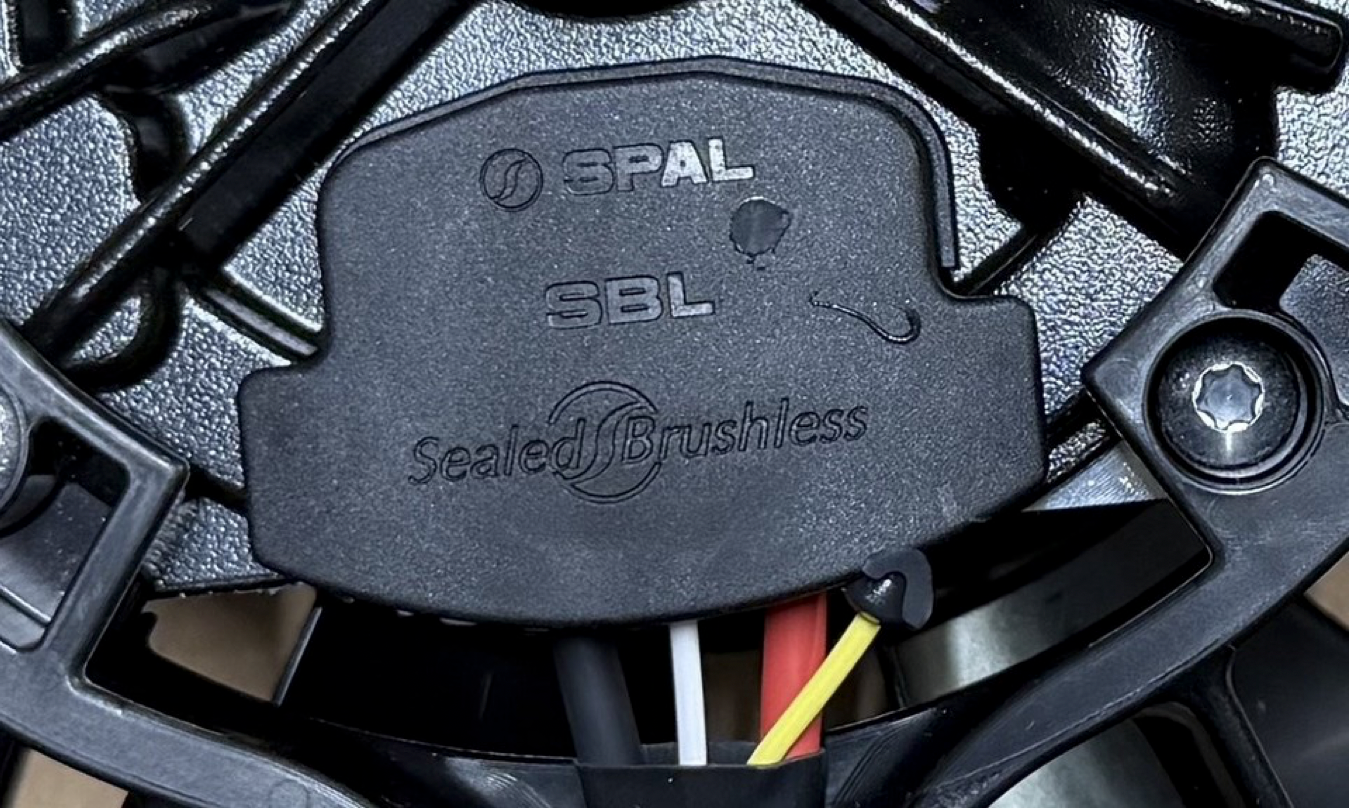

• Type: Brushless axial fan

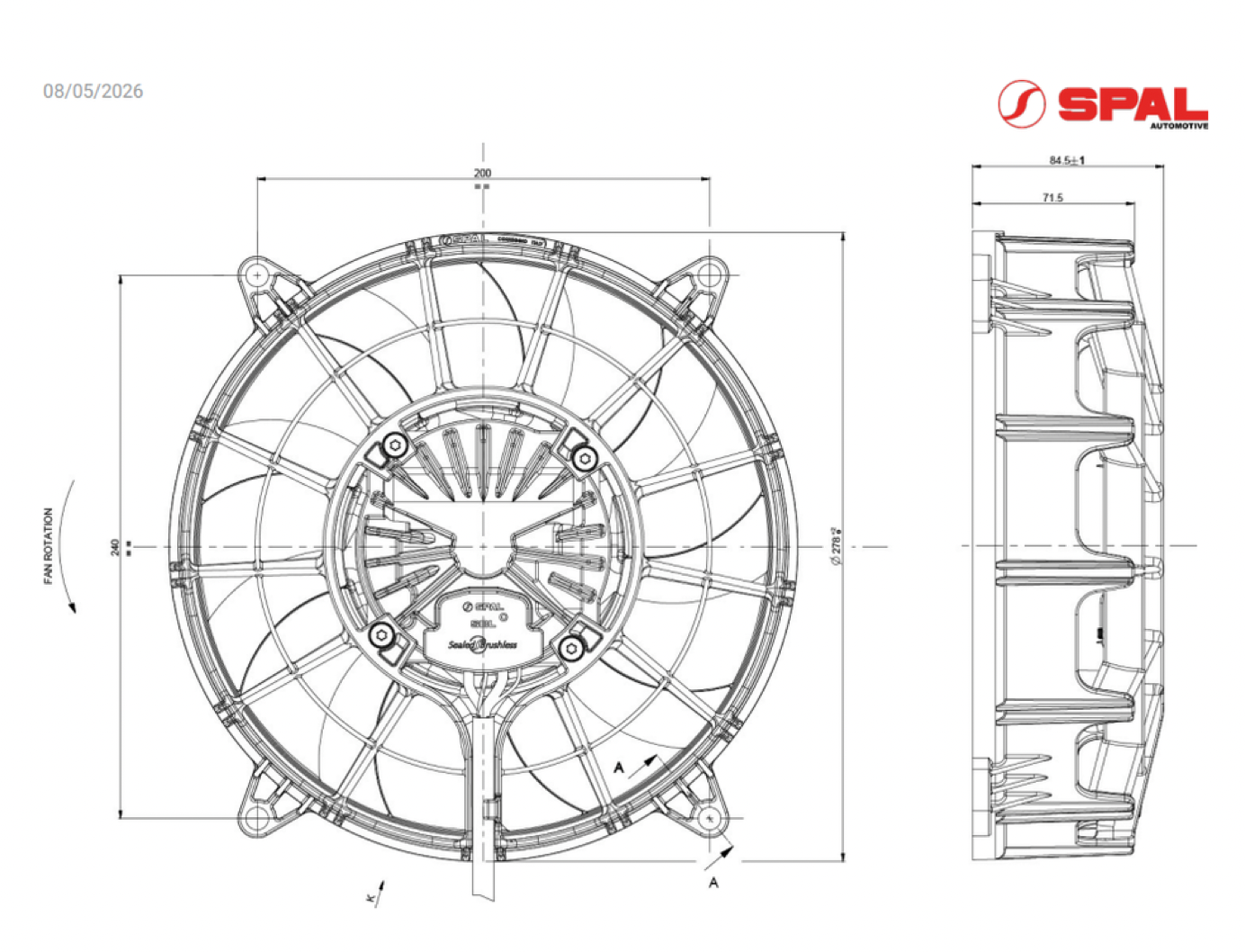

• Blade diameter: 255 mm (10”)

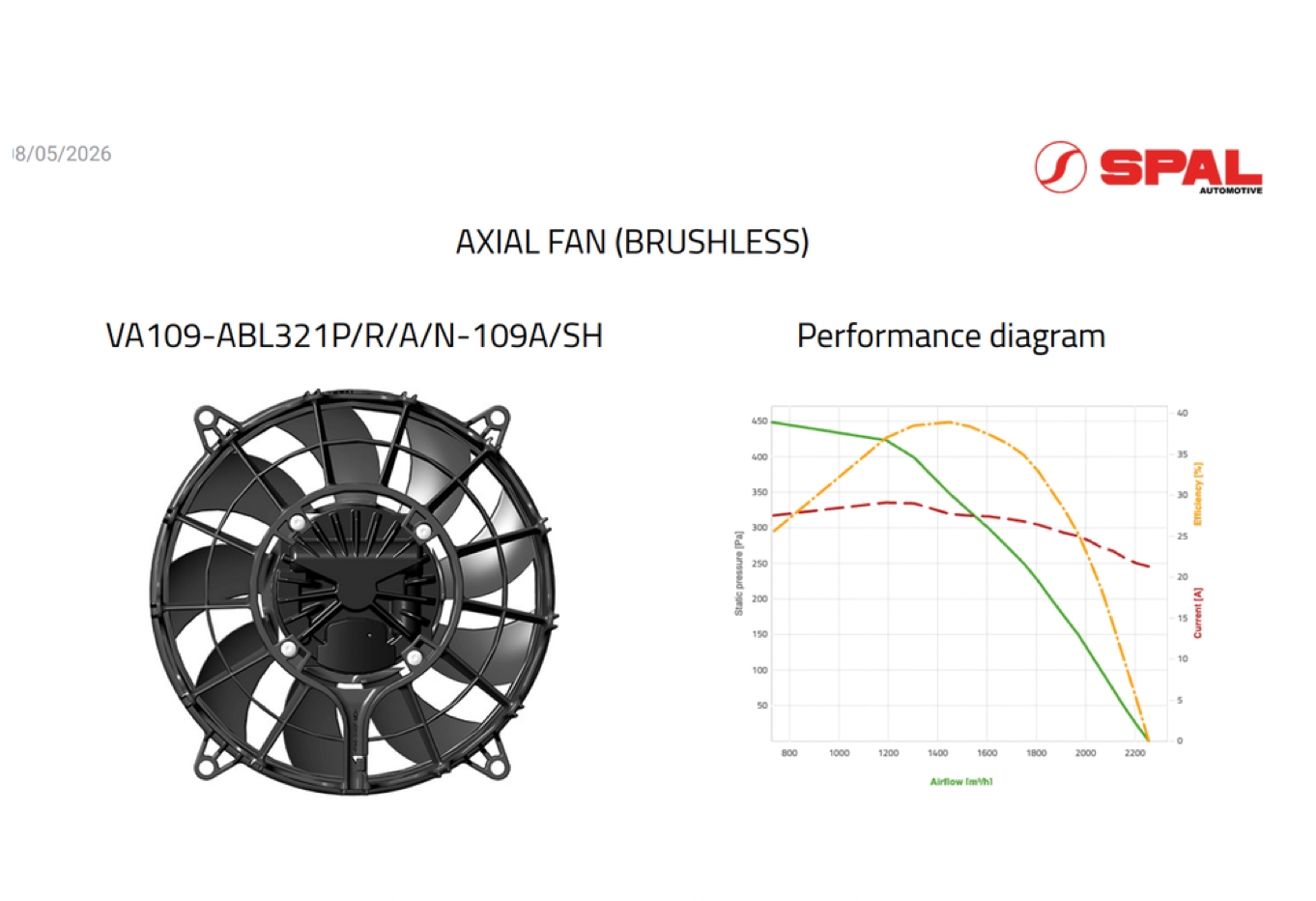

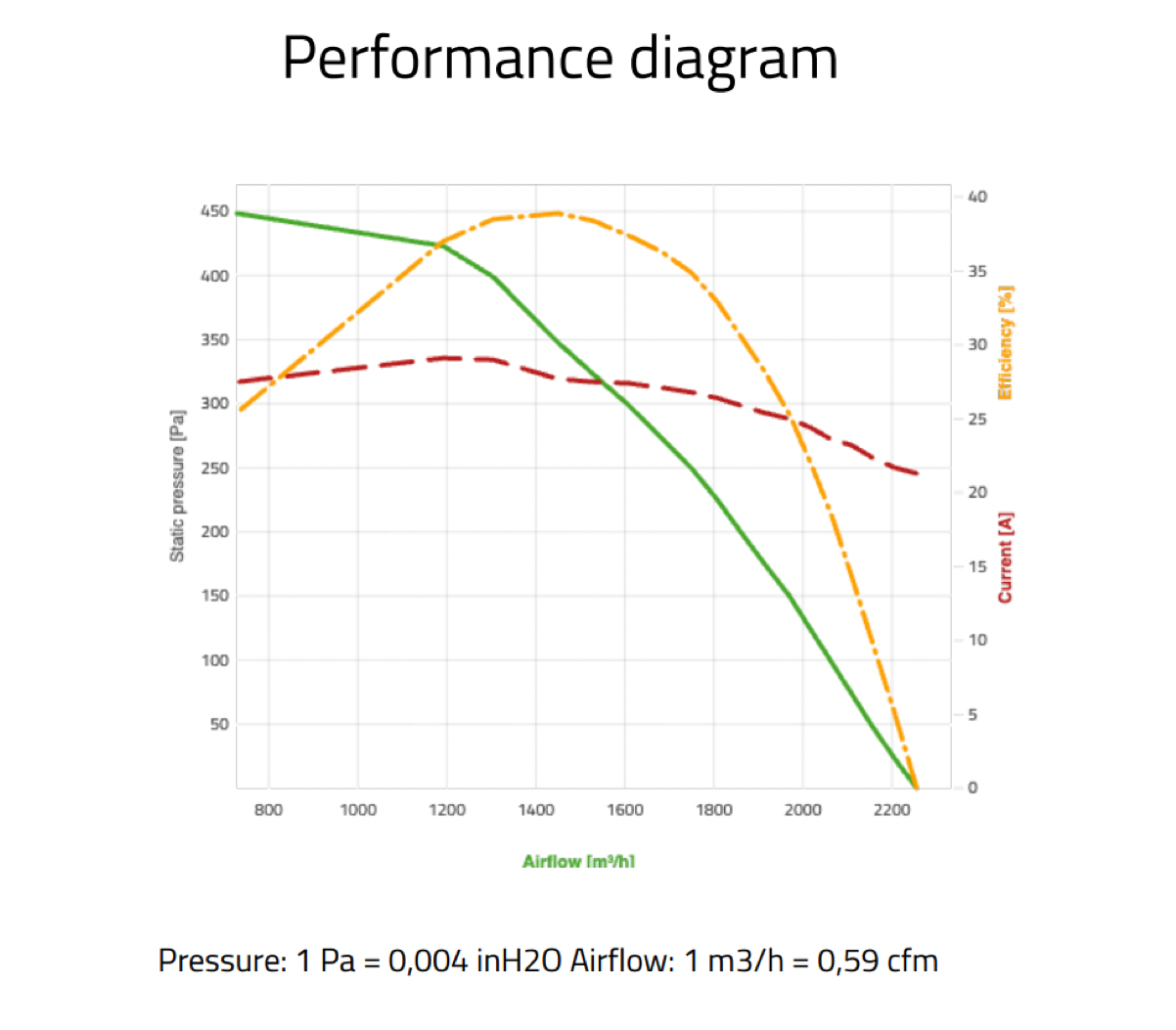

• Airflow: approximately 1360–1800 m³/h depending on setup
• Rotation type: Suction / puller
• Current draw: around 8.7A
• Thickness: about 84 mm
• Protection rating: IP68 / IP6K9K (high water and dust resistance)
• Maximum speed: around 4000 RPM
• Expected lifespan: up to 40,000 hours

Associated SPAL references:

• 3010.7089
• VA109-ABL321P/N-109A/SH

• Features Protection Degree: IP68-IP6K9K
• Max fan speed rpm 4.000
• Min fan speed rpm 1.000
• Sound pressure level (at 1 m from the fan module - lateral side) dBA 76±0.5
• Weight kg 2.1
• Operating supply voltage range (at the Drive connector) V 9.0 .. 16.0
• Supply voltage to reach max speed (at the Drive connector) V 13.0 .. 16.0
• Operating ambient temperature range °C -40 .. +115
• Speed derating threshold °C +105 (A)
• Storage temperature range °C -40 .. +125
• Lifetime hours up to (depending on mission profile) h 40.000
• Time from 0 rpm to max speed s 14
• Load dump protection (Pulse 5b - Pulse peak voltage (Us*) - ISO16750 - 2:2010) V 35 Reverse polarity: ISO 16750-1 functional status class C - device fully funcional after correcting the polarity
• Note (A): Few minutes ambient temperature transients do not engage the derating owing to the thermal inertia of the system. Overloads may anticipate derating.

FAQ.... Please contact us we will be happy to help you make the best decision

SE HABLA ESPAÑOL Located in Tampa Bay Area Florida USA. Nationwide shipping

 Shipping for continental U.S. only. International buyers, including Puerto Rico, Alaska, and Hawaii, Please contact for quote before buying.
We includes full DIY installation guidelines, also we can provide you a technical support over the phone or via email during the installation process no extra cost, even so we recommend that the installation be done by a certified professional We are not responsible for any damage caused to you or your vehicle.

NOTE: Gas R-134a, compressor mounting bracket, heater hoses and control valve is not included, we sold separately  We can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc.
