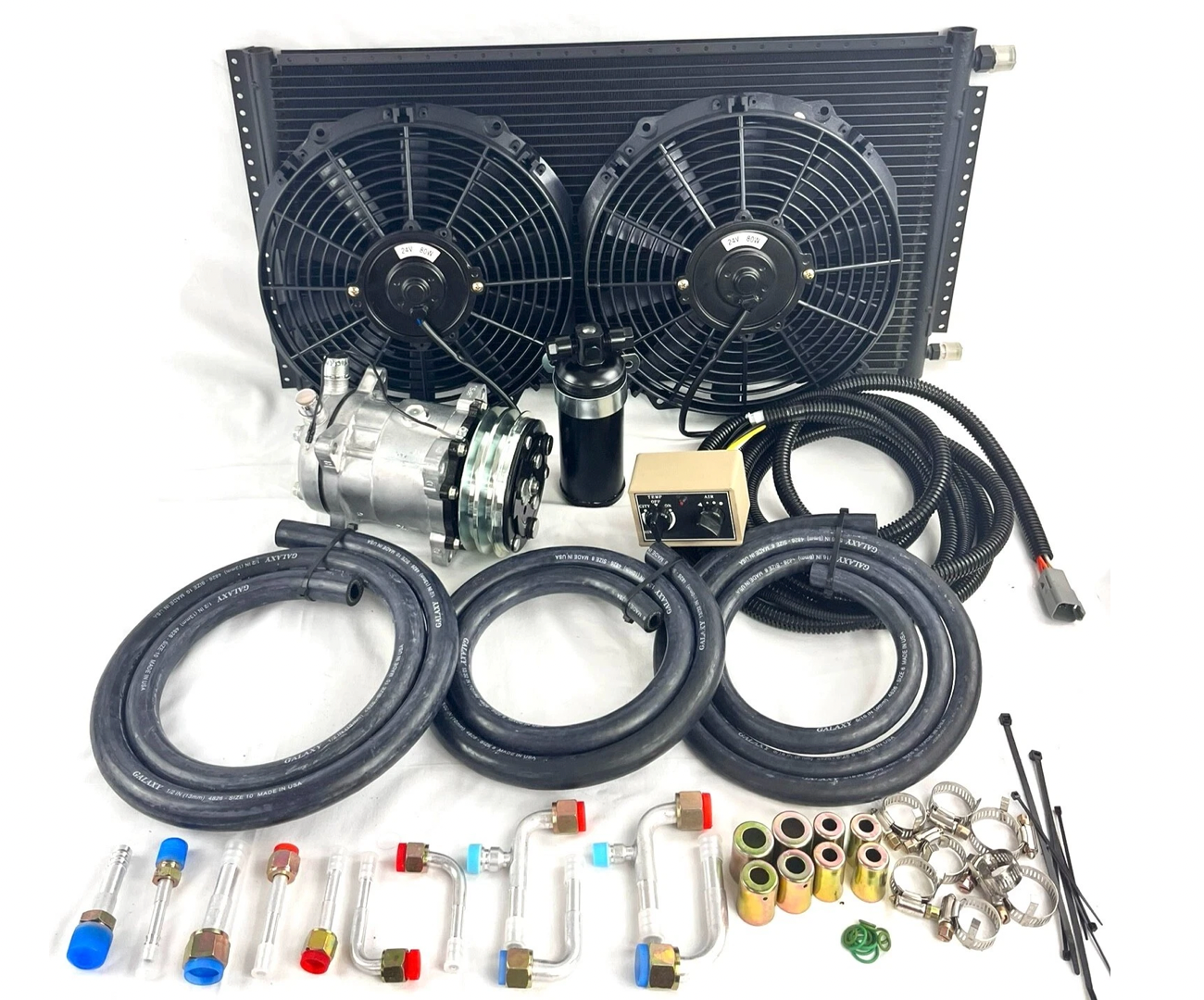

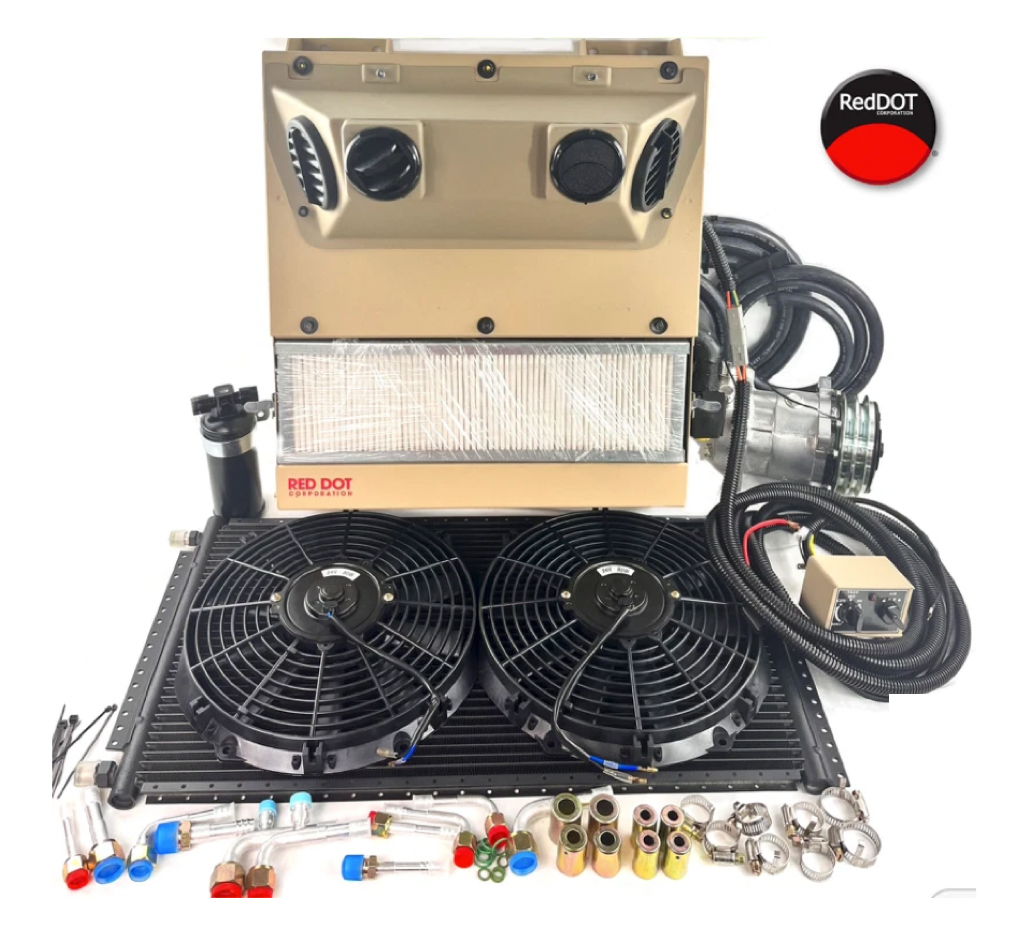

HUMVEE A/C Air Conditioning KIT R-2400-0 OEM Red Dot Backwall W/FRONT VENTS

We are a 100% U.S.-based business operating out of Florida. We create local jobs and fully comply with all U.S. tax obligations. When you choose our products, you support an American company dedicated to quality, integrity, and exceptional service.

Our company offers premium universal A/C kits compatible with classic cars, hot rods, antique vehicles, trucks, and a wide variety of custom projects. Designed for performance and reliability, our products are ideal for restorations, upgrades, and complete custom builds.

Contact us for special orders.

727 647 2158

APPLICATION:

HMMWV M998 SOFT TOP SLANT OR SIMILAR

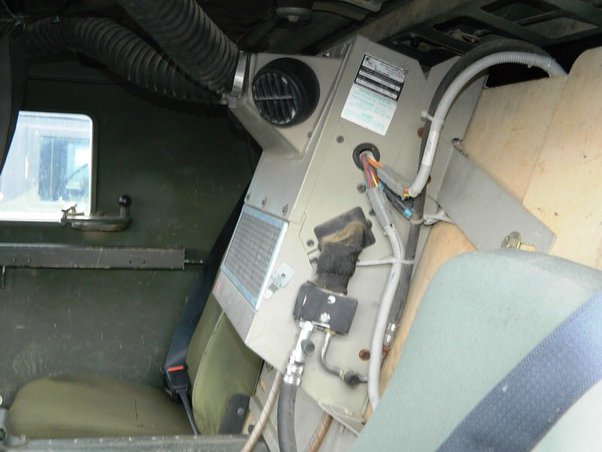

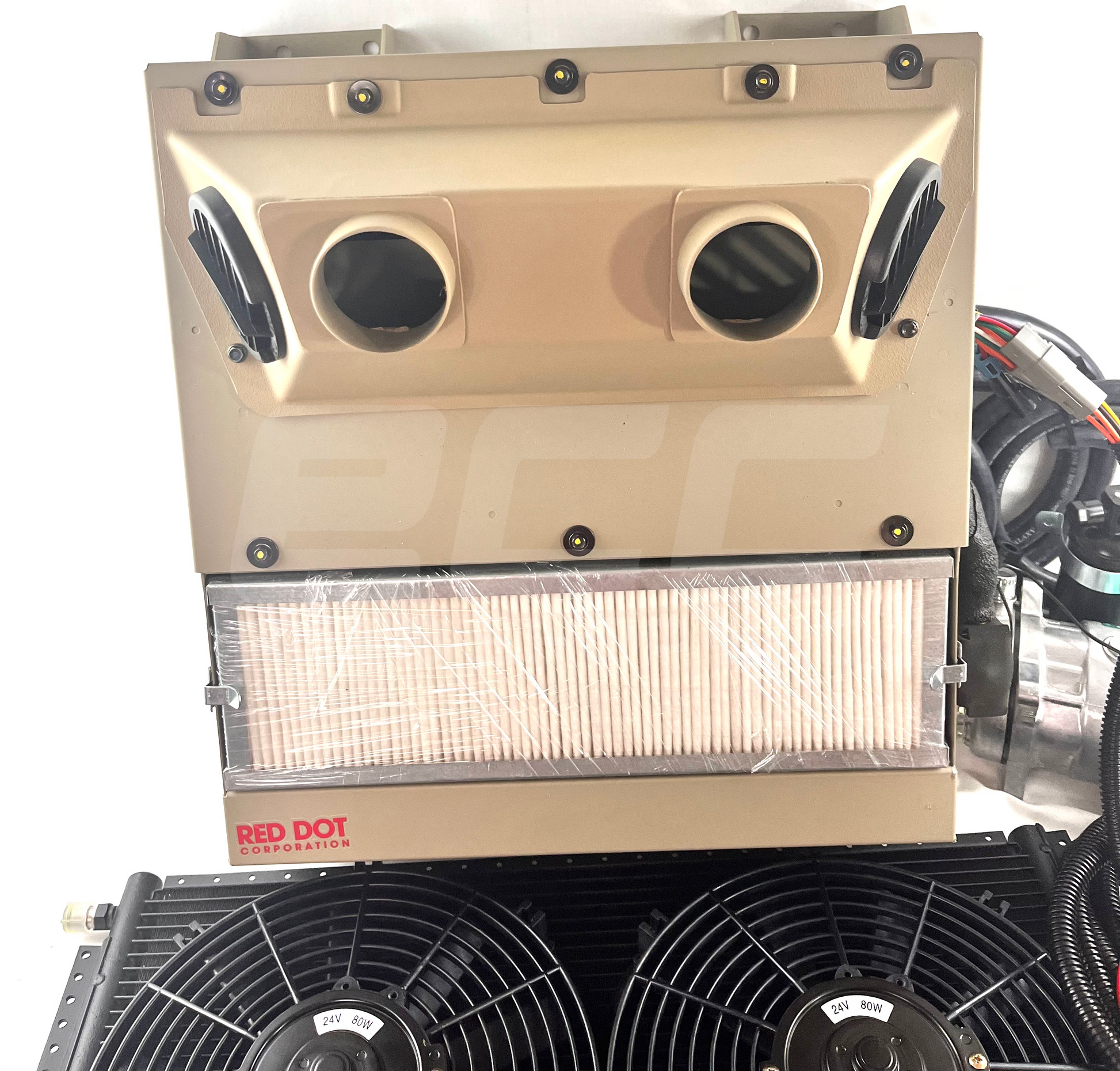

OEM RED DOT Backwall Evaporator Unit

Model:  RED DOT.  R-2400-0 RD-2-4369-1

Backwall OEM RED DOT Unit

FRONT VENTS

Cool Only Capacity 25.000 BTU

Expansion valve Block type w/Insert male fitting include

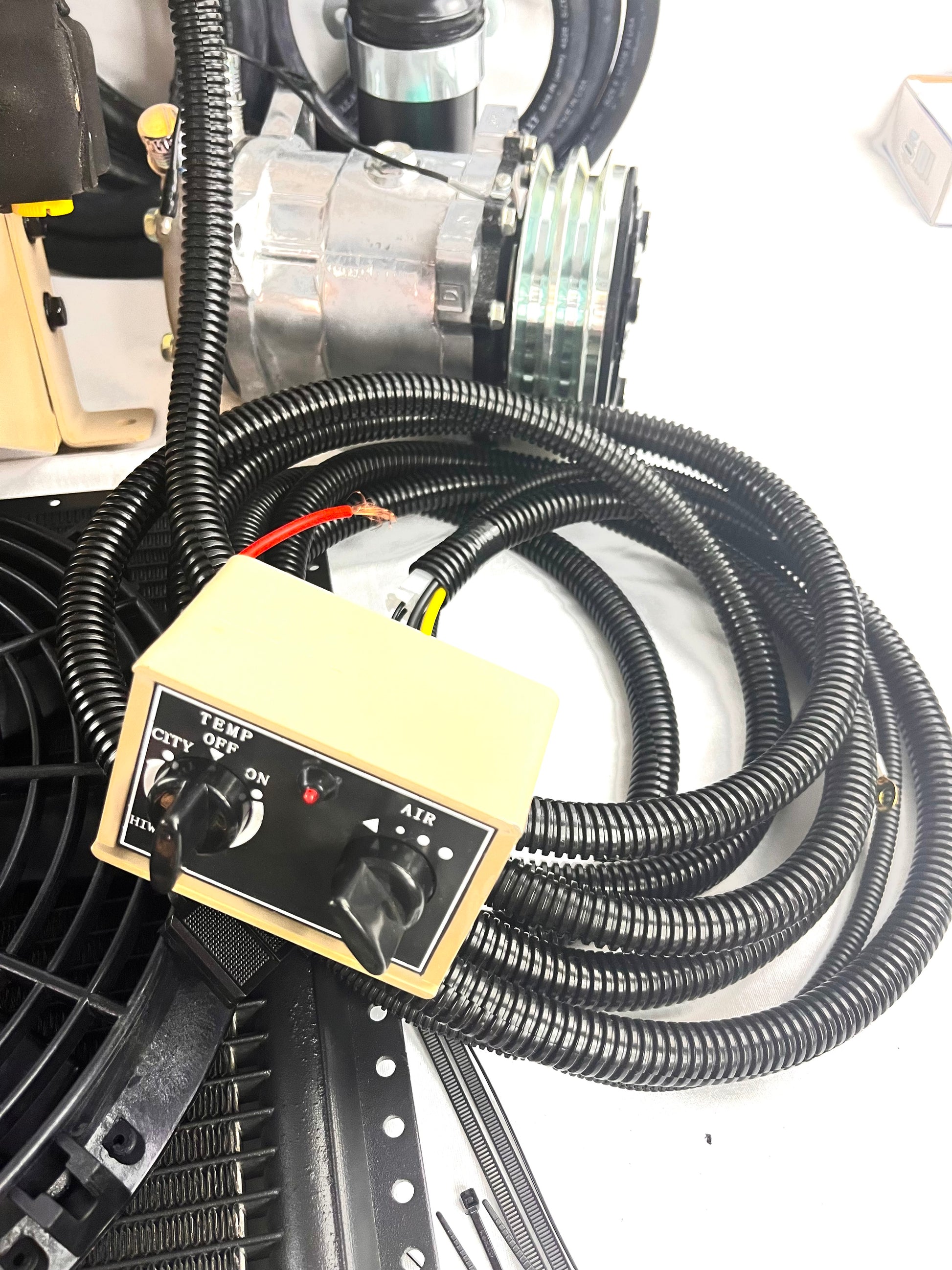

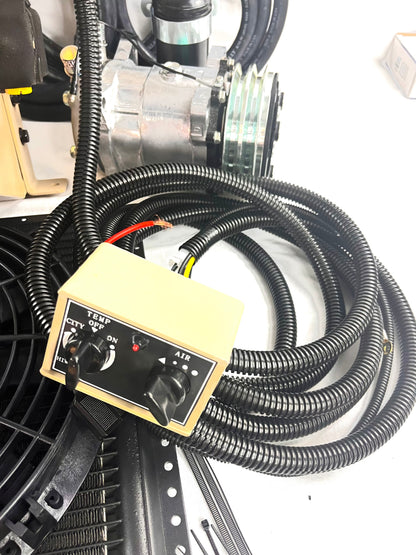

Thermostat and rotative 3-speed blower switch

24 VOLTS DOUBLE SHALF BLOWER MOTOR  SPAL 708 CFM

Mounting bracket included

DIMENSIONS: L18½" X D8½" X H21½"

ALSO AVAILABLE IN BLACK COLOR (contact us for special color)

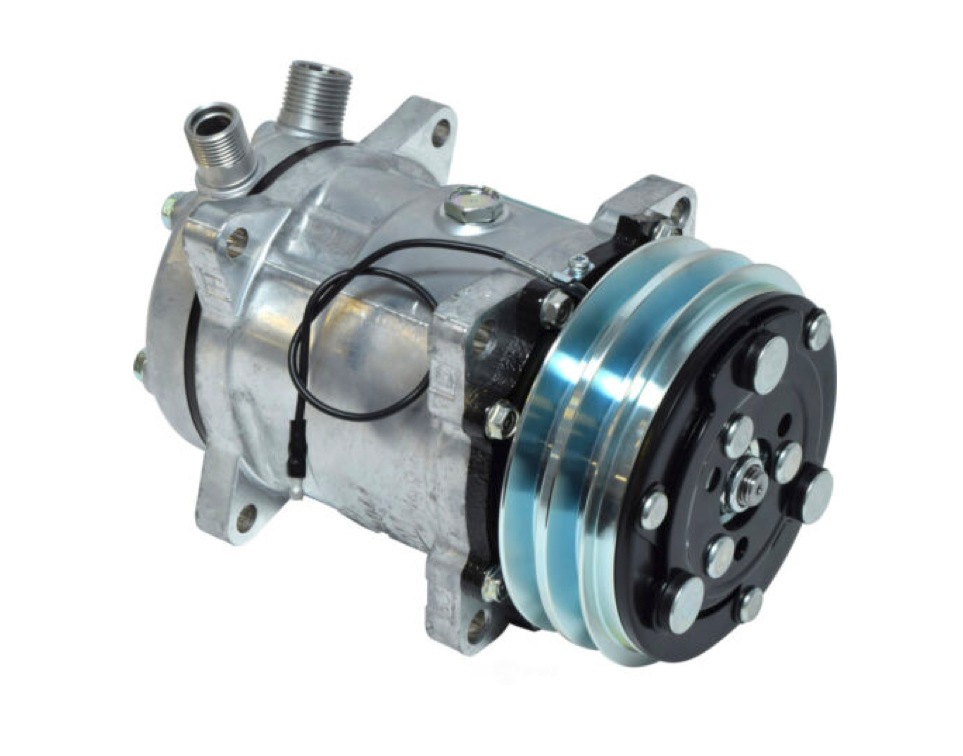

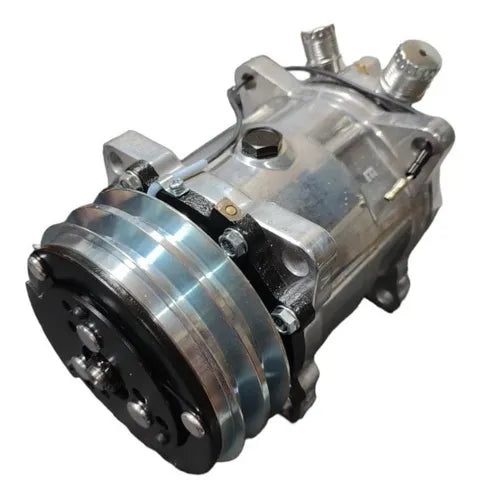

Compressor

Model: C5H142A24V SD508 5H14

Sanden Style  2A Groove Pulley 24v coil

Also available 8PK Pulley

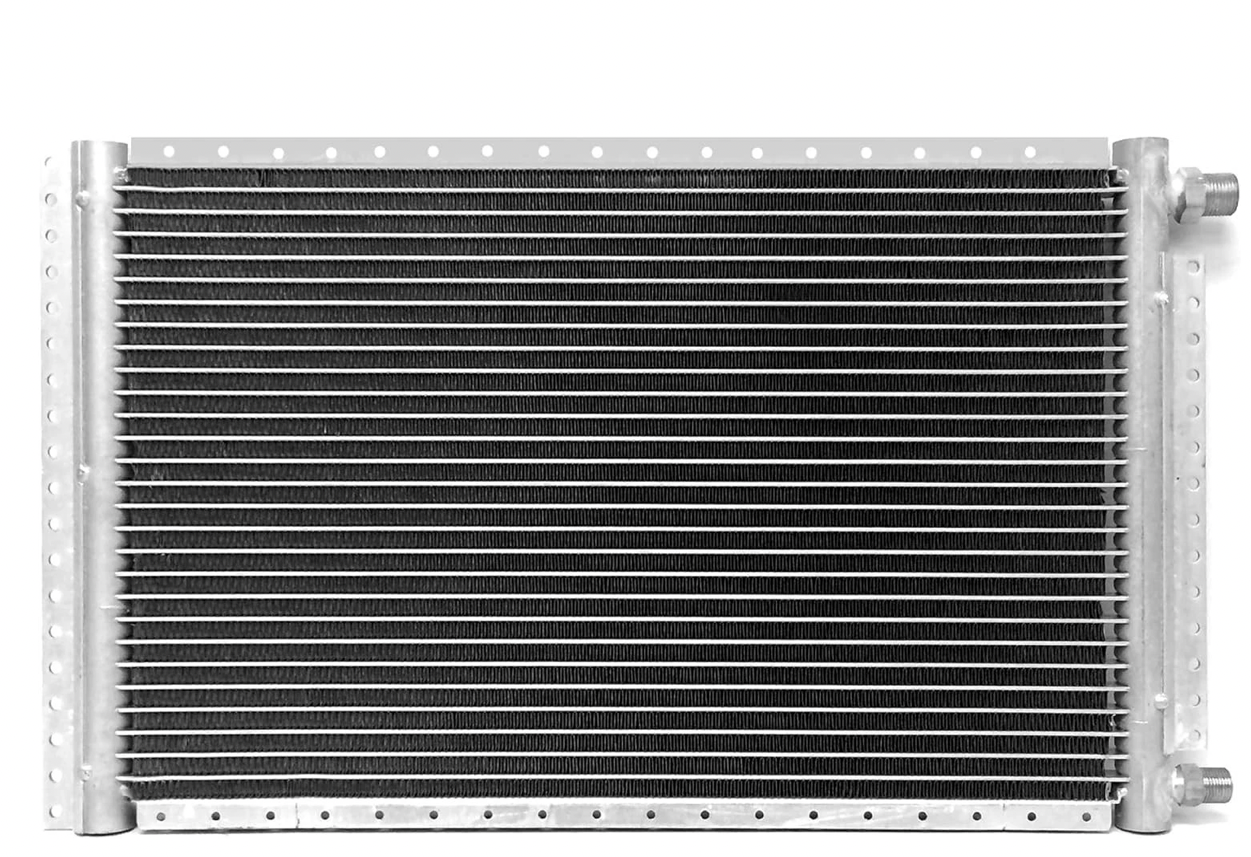

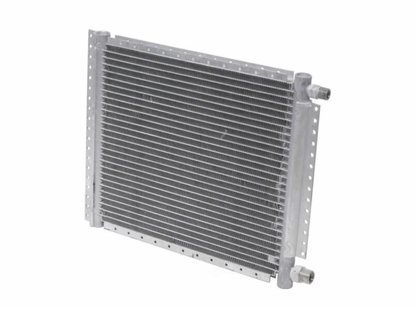

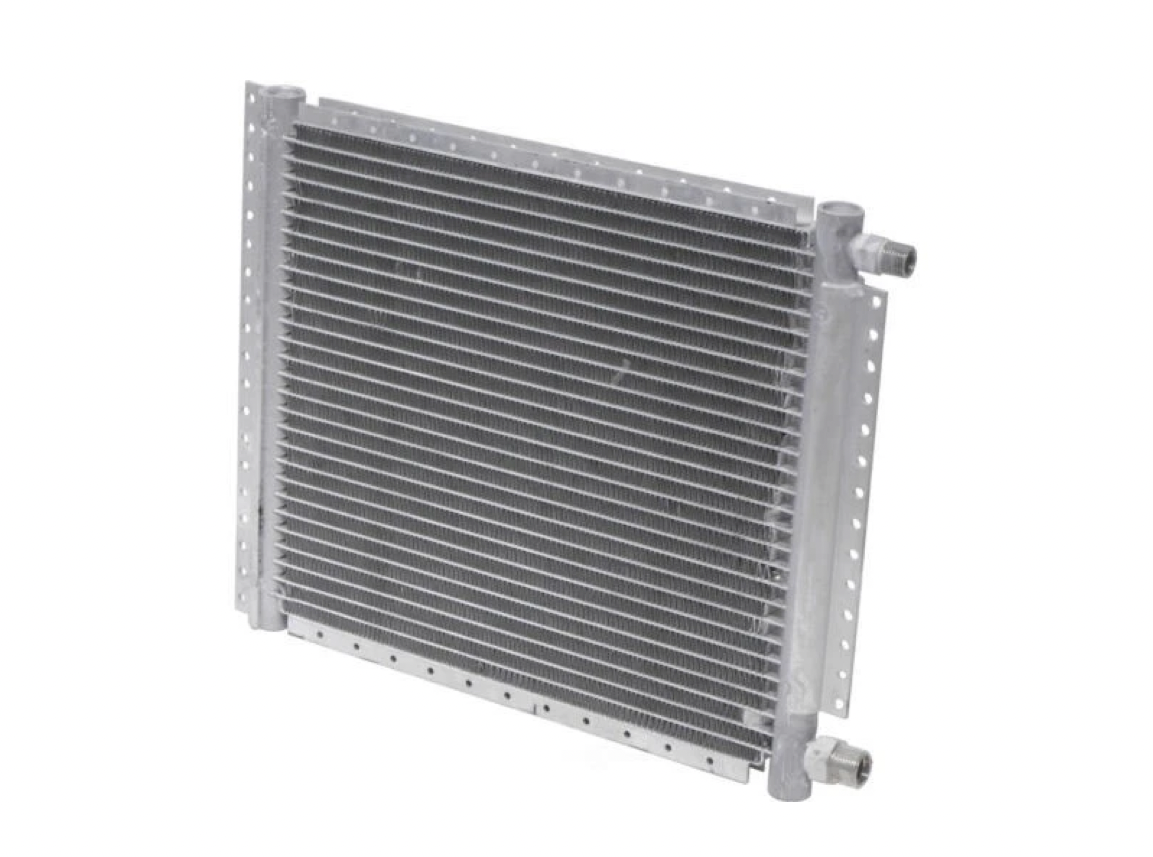

Condenser

Model: CPF142618

PARALLEL FLOW (micro-tube technology)

14"H X 26"L .70"(18mm)W

(Better fit in front of the radiator, better flow air with X2 12" 80w condenser fan)

4 Rails Aluminum

#8 O-ring IN  #6 O-ring OUT

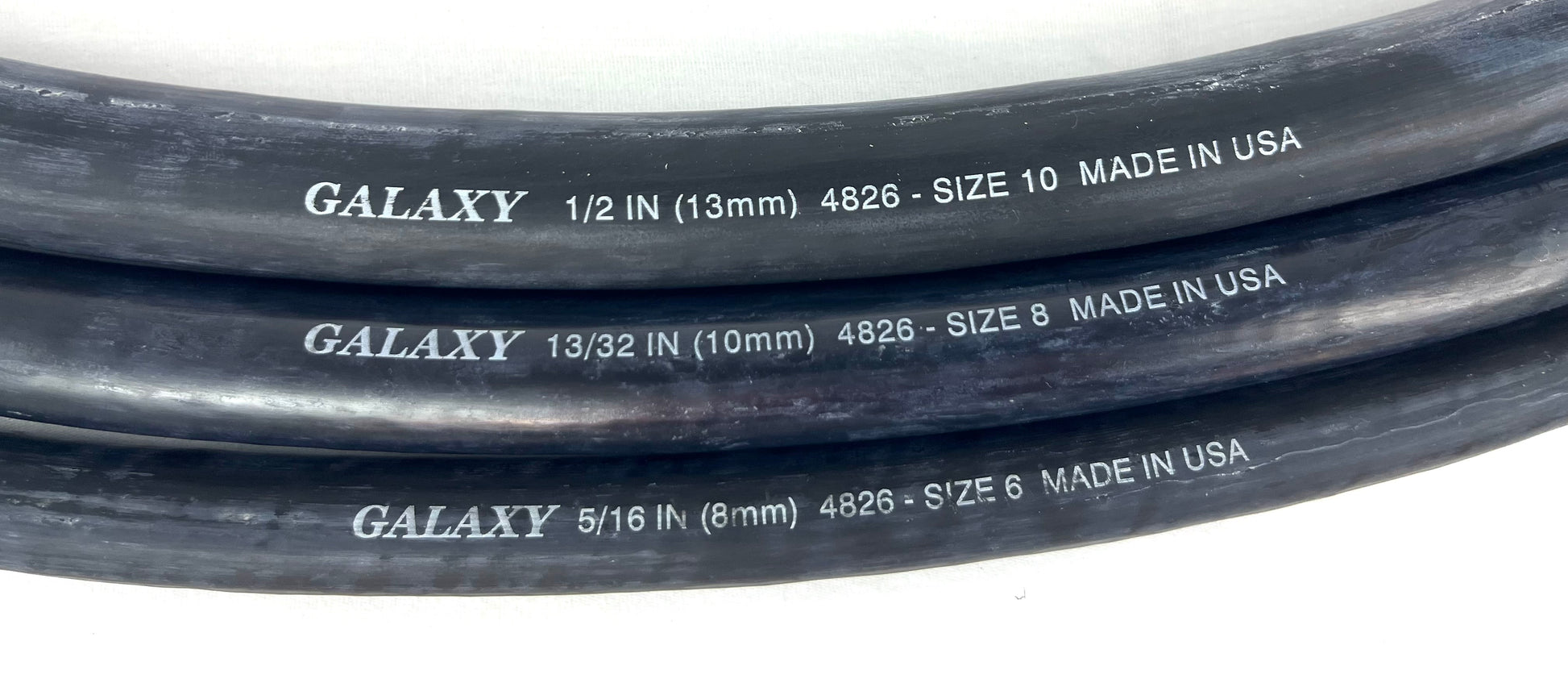

Hoses Set

Model: H6516,H81332, H1012

A/C HOSE

• #6 5/16 = 17' feet
• #8 13/32 = 8' feet
• #10 1/2 = 14' feet

(NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply)

Fitting Set

Model: FTSET404

• 1-N° 10 90° O-ring Fitting w/R134a Serv Port
• 1- N° 8 90° O-ring Fitting w/R134a Serv Port
• 1- N° 10 Straight Insert Male O-ring Fitting
• 1- N° 6 Straight Insert Male O-ring Fitting
• 1- N° 10 Straight O-ring Fitting
• 1- N° 10 90° O-ring Fitting
• 2- N° 6 90° O-ring Fitting
• 1- N° 8 90° O-ring Fitting
• 2- N° 6 Straight O-ring Fitting
• Set include metal FERRULES and CLAMPS

If you decided use a/c clamps you don't need special crimper tool

(YES... We include both systems)

O-ring set is included

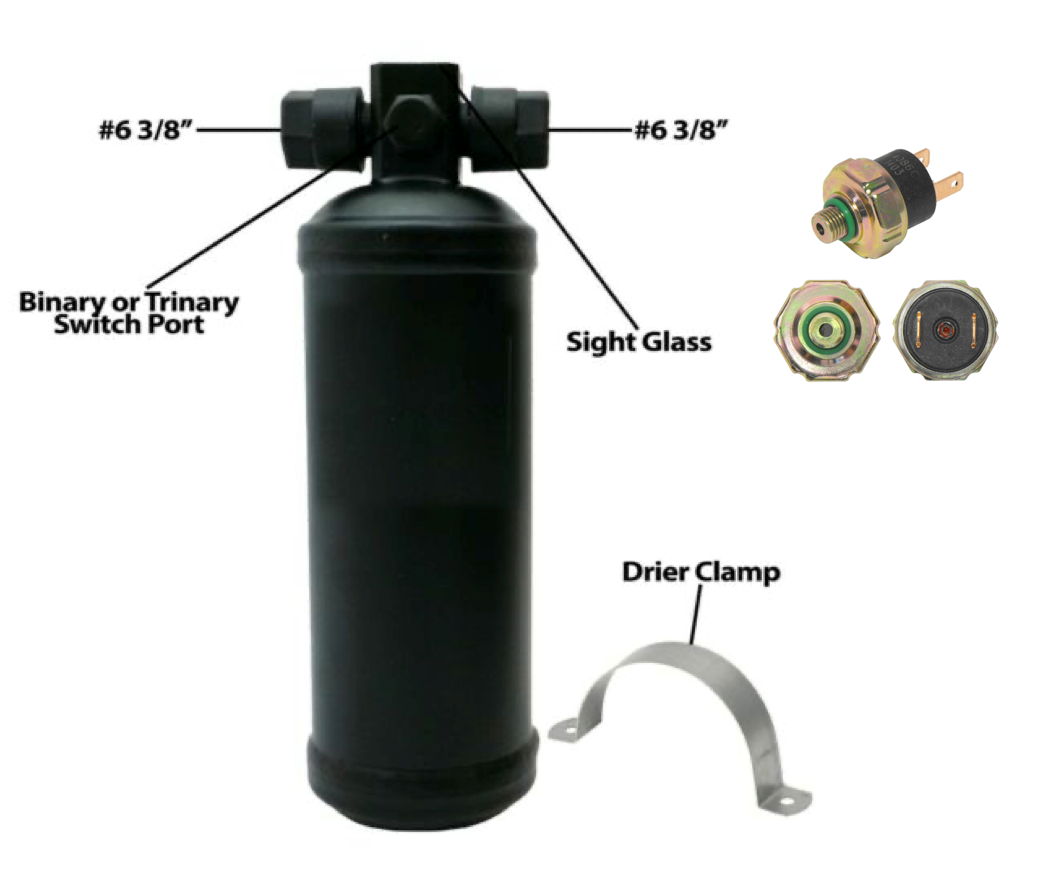

Filter Drier
Model: FD100A ALUMINUM
Model: FD100B BLACK
2½"Diameter 7½"Hight  Sight Glass
#6 ⅜ X ⅜ O-ring connections both sides

(HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED)
 (NOTE: Aluminum or Black) if you have a preference let us know leaving a message

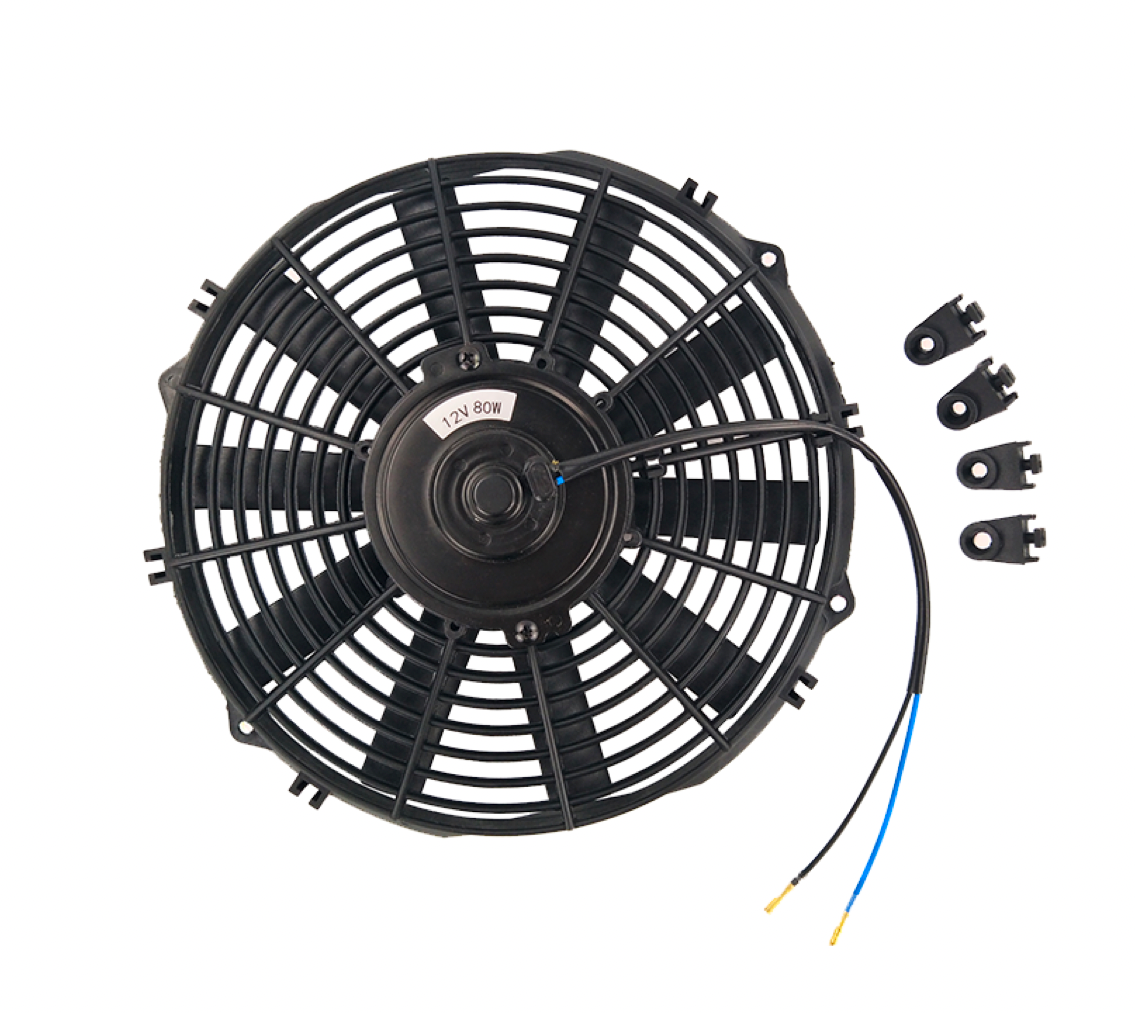

Condenser Fan

Model: CF1224
2x12" Diameter
24 Volts 80W 3.5 AMP <75db 1680 CFM
Reversible Puller or Pusher
4 Mounting Brackets included X FAN

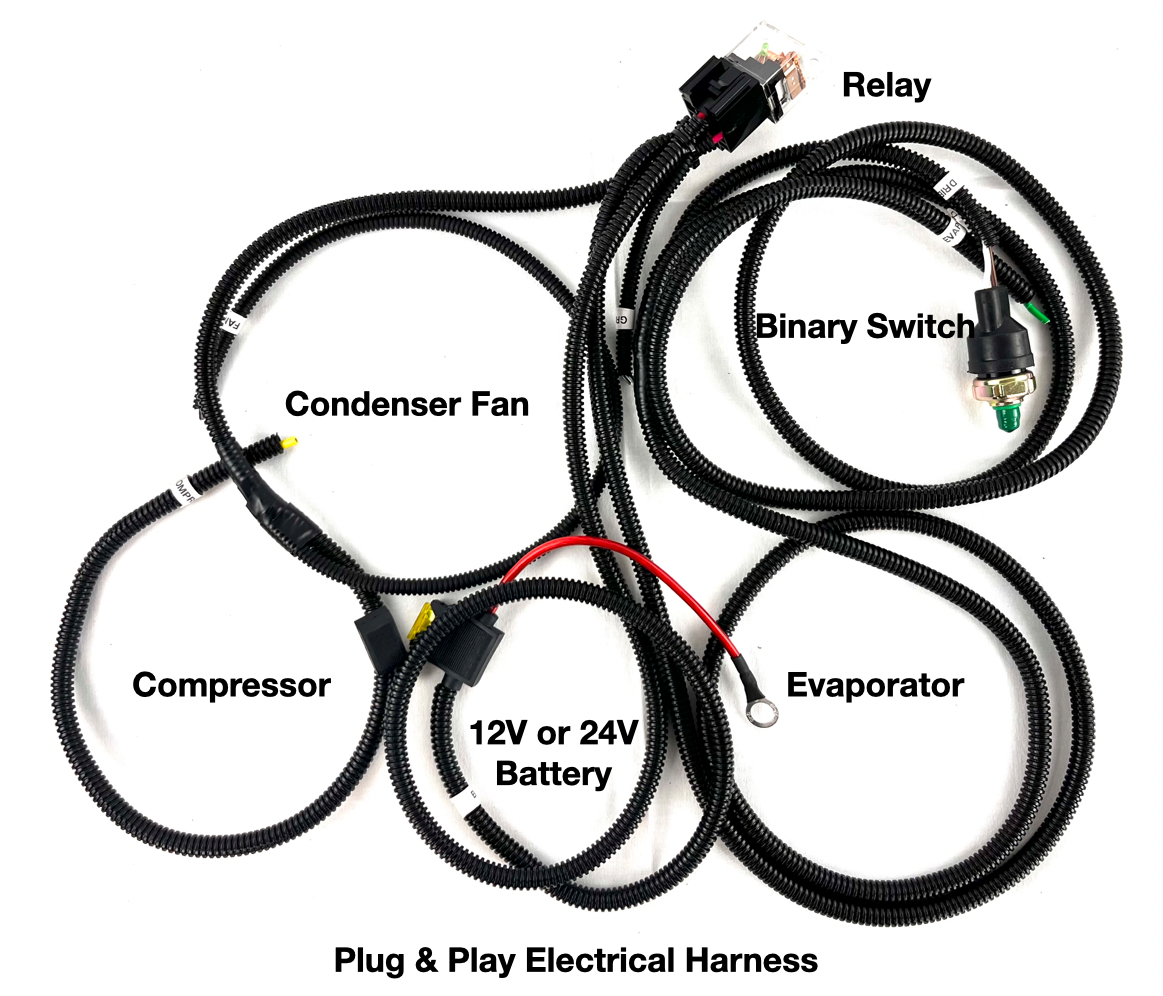

Electrical Harness 24V Relay 15' FT

all ours kits come with   “Plug and Play”  Electrical harness to easily connect all the components designed for a HUMVEE trucks applications.  for special Lengths applications please contact us extra charges maybe apply

NOTE: Electrical Harness after market NO THE ORIGINAL HUMVEE OR RED DOT , but work like the OEM or Better

FAQ.... Please contact us we will be happy to help you make the best decision

SE HABLA ESPAÑOL Located in Florida USA. Nationwide shipping

FREE Shipping for continental U.S. only. International buyers, including Puerto Rico, Alaska, and Hawaii, Please contact for quote before buying.
We includes full DIY installation guidelines, also we can provide you a technical support over the phone or via email during the installation process no extra cost, even so we recommend that the installation be done by a certified professional We are not responsible for any damage caused to you or your vehicle.

 Return policy, this item can be returned in its original condition and package for a full refund or replacement within 30 days

NOTE: Gas R-134a, compressor mounting bracket, heater hoses and control valve is not included, we sold separately  We can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc.
