A/C KIT UNIVERSAL UNDER DASH IN DASH EVAPORATOR 432-000 Top Outlet Cool Only

We are a 100% U.S.-based business operating out of Florida. We create local jobs and fully comply with all U.S. tax obligations. When you choose our products, you support an American company dedicated to quality, integrity, and exceptional service.

Our company offers premium universal A/C kits compatible with classic cars, hot rods, antique vehicles, trucks, and a wide variety of custom projects. Designed for performance and reliability, our products are ideal for restorations, upgrades, and complete custom builds.

Contact us for special orders.

727 647 2158

For many applications: IN-DASH

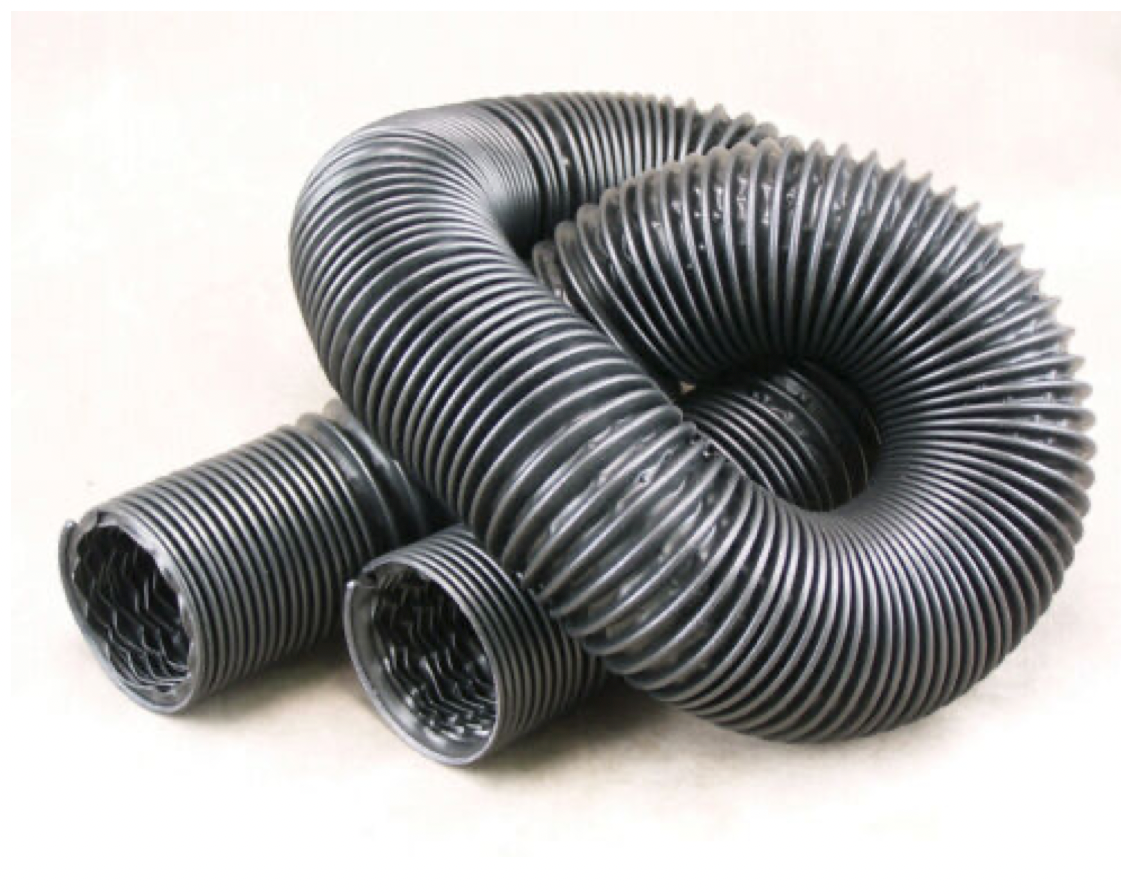

please read carefully about dimensions, flex duct 2.5" inch diameter

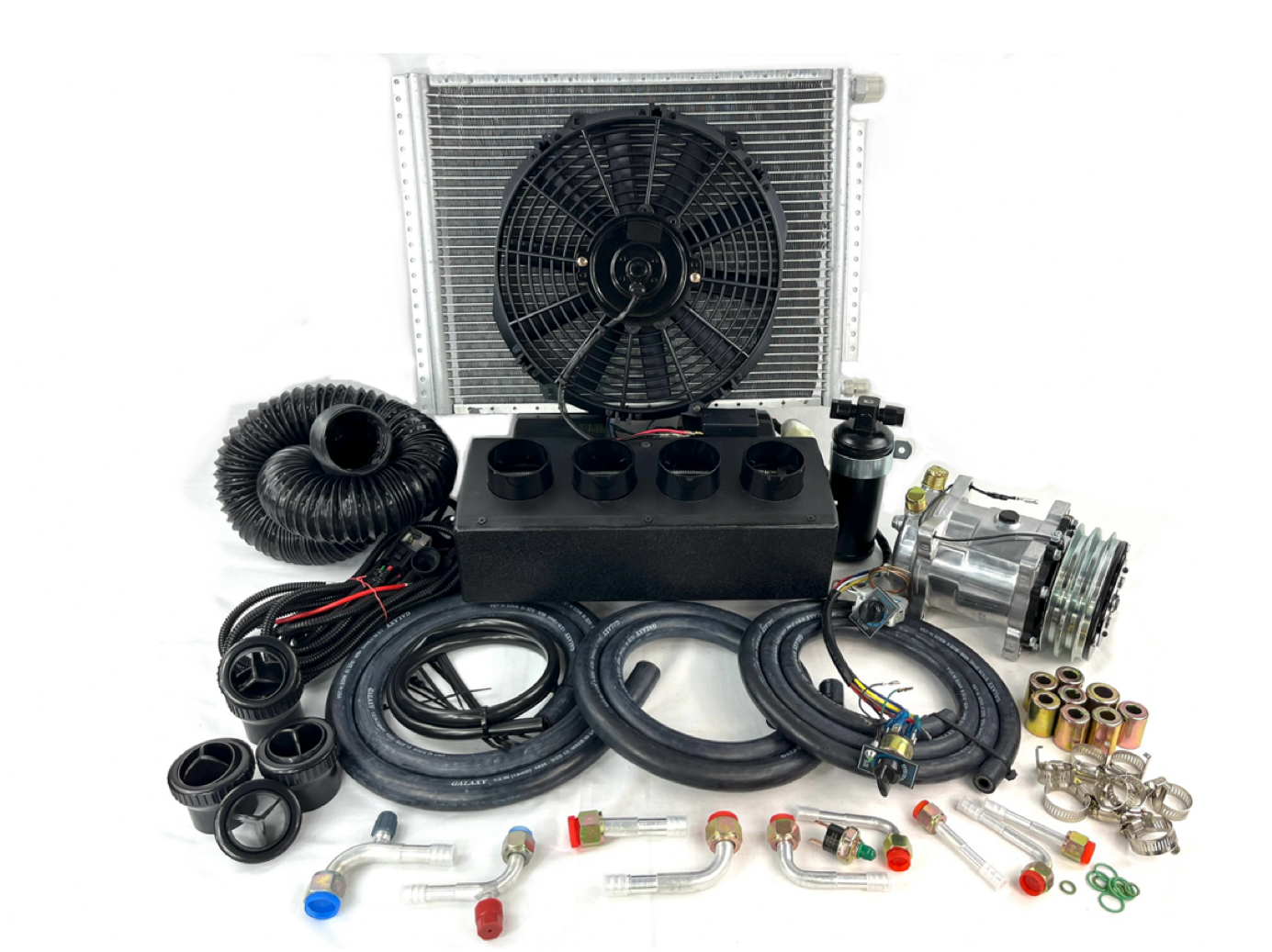

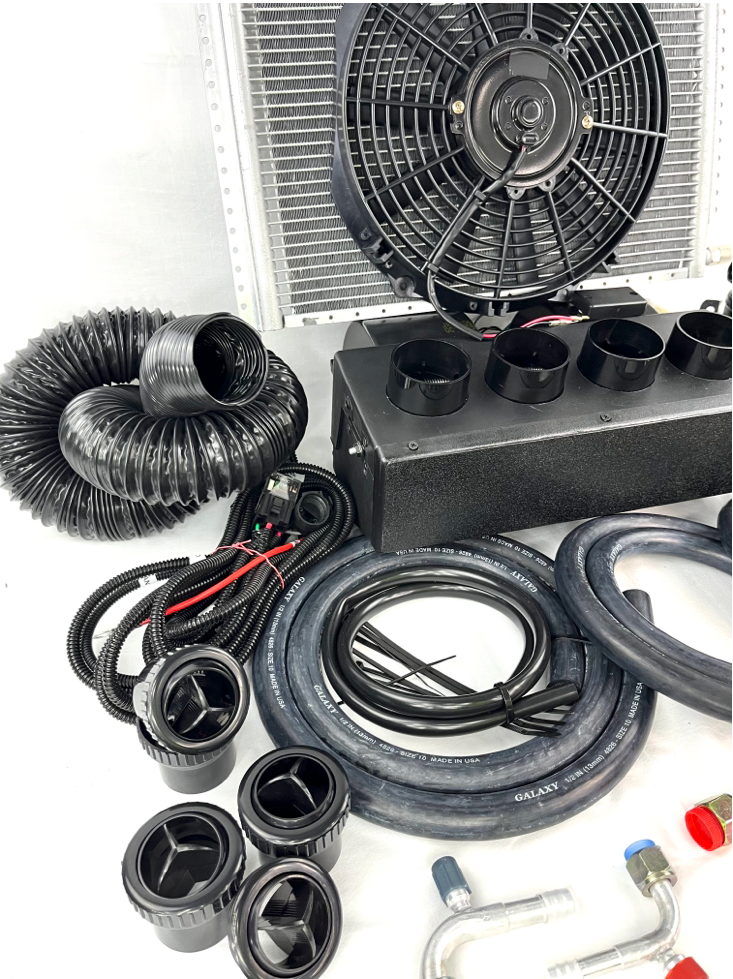

THE KIT INCLUDES:

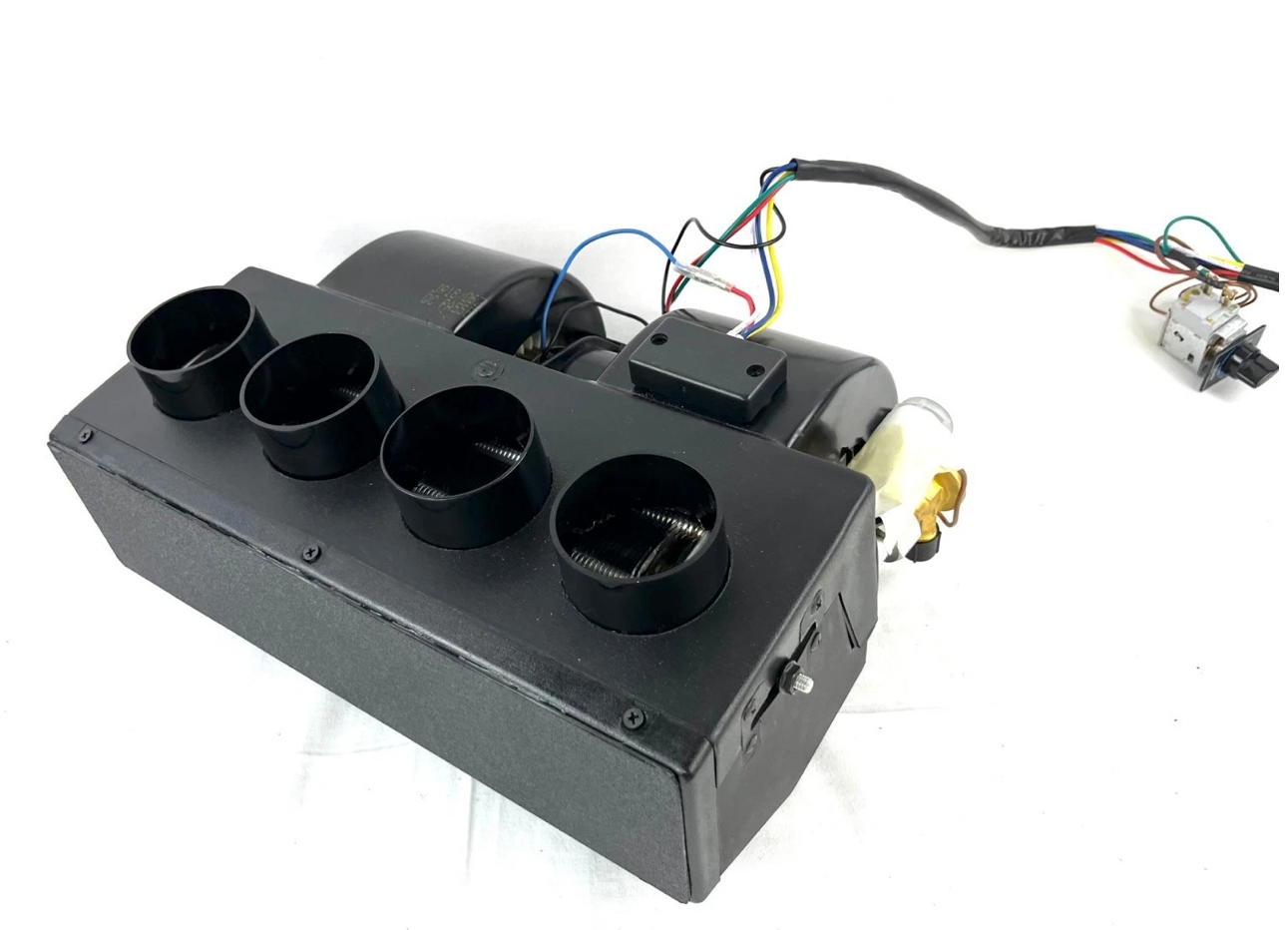

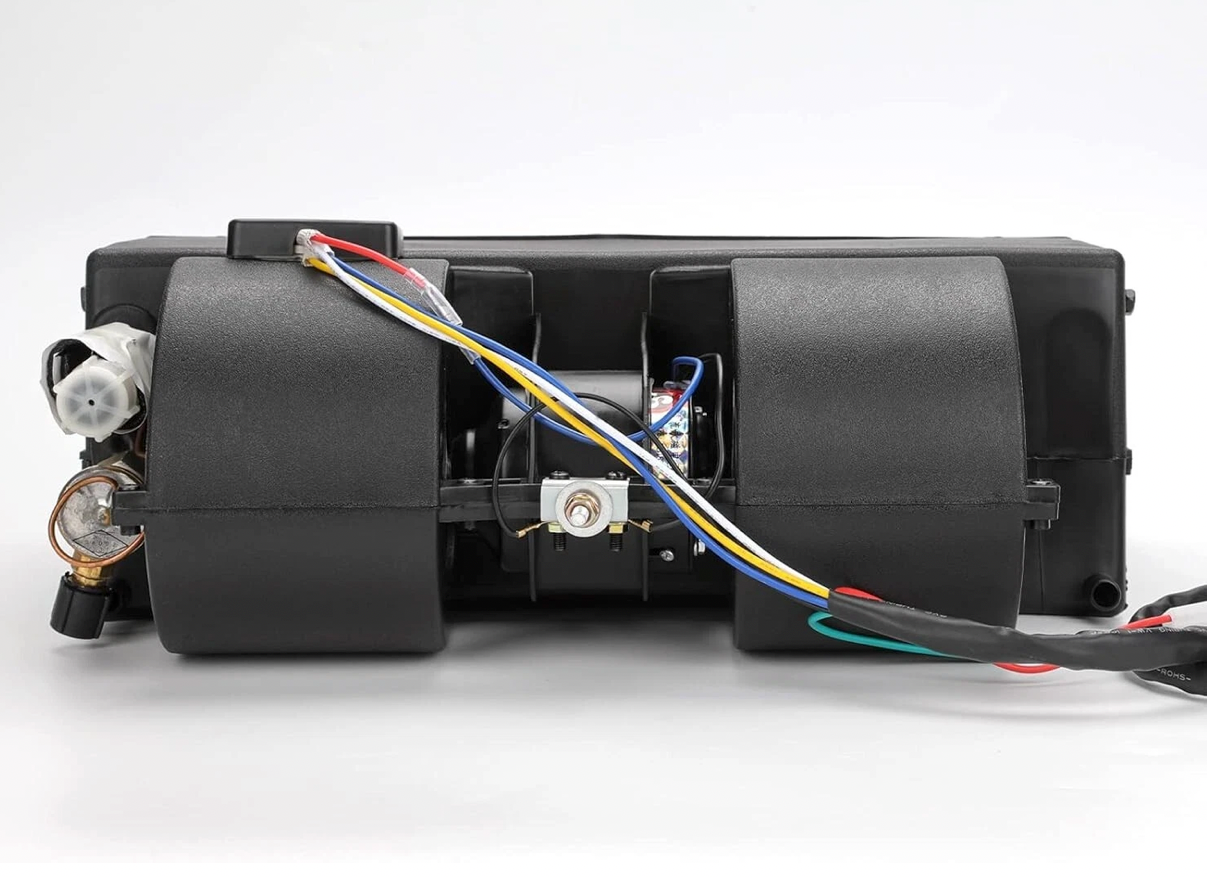

A/C KIT UNIVERSAL UNDERDASH EVAPORATOR 432-000 with 4 Vents and flex duct

MODEL: E 432-000 Top Outlets

12700 BTU CAPACITY 359 CFM

32 pass 4 Way all aluminum coil

Expansion valve 1.5

Thermostat and rotation 3 speed blower switch

12 volts double shaft blower motor

Mounting bracket drain hose and plastic T splitter included

Dimensions. L 14.5 In X D 10.5 In X H 5.5 In

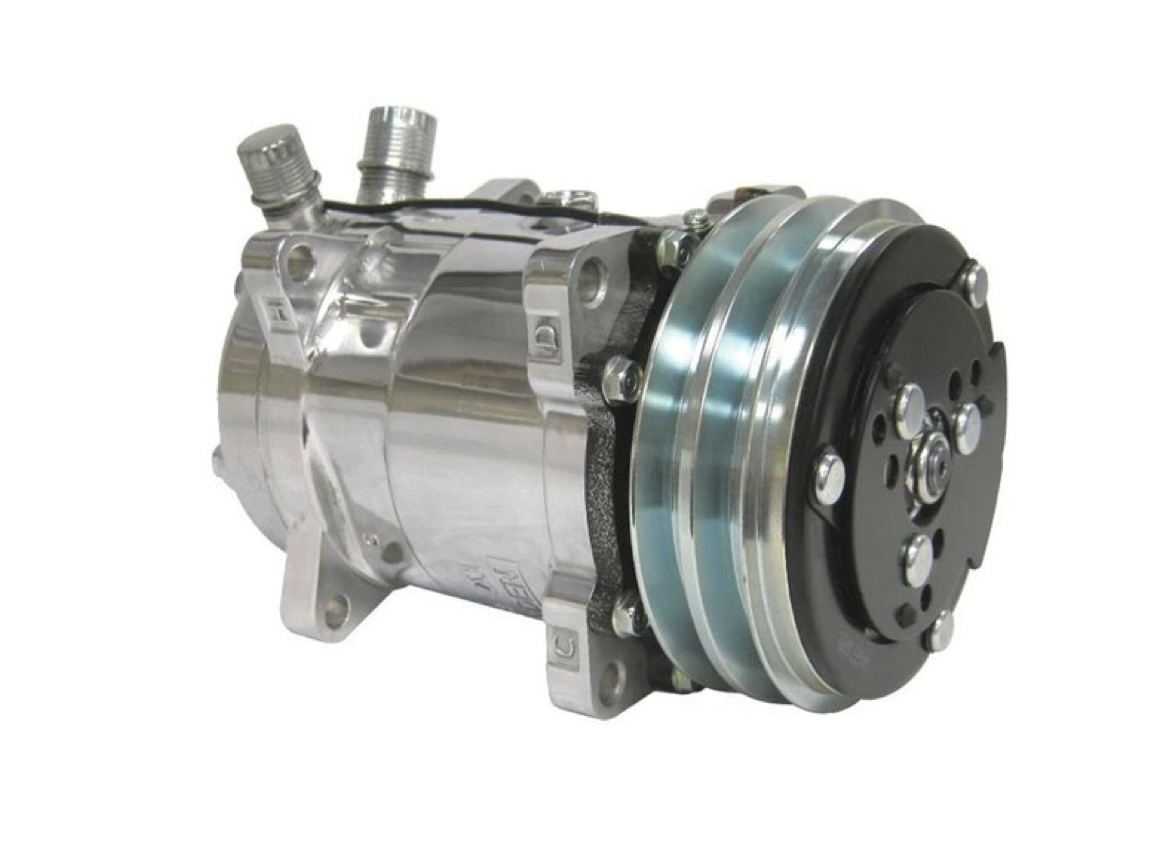

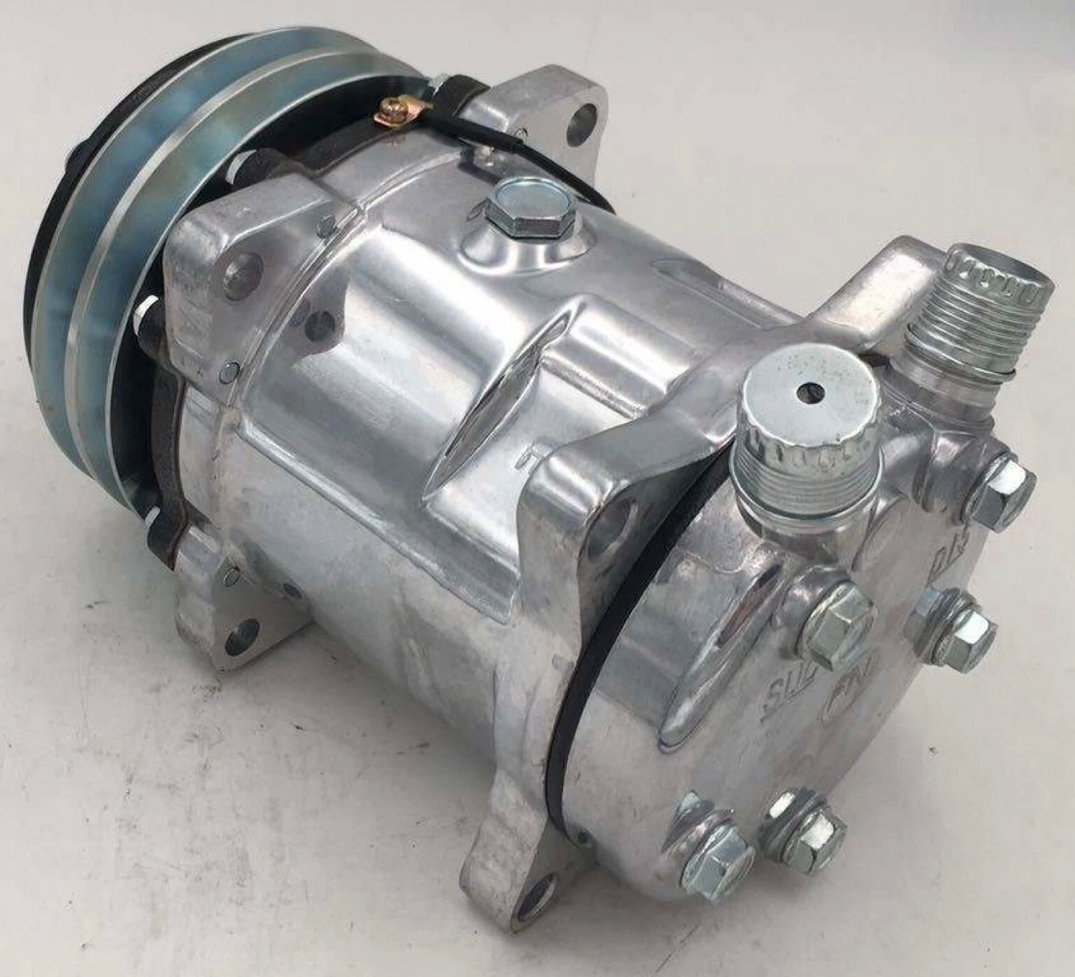

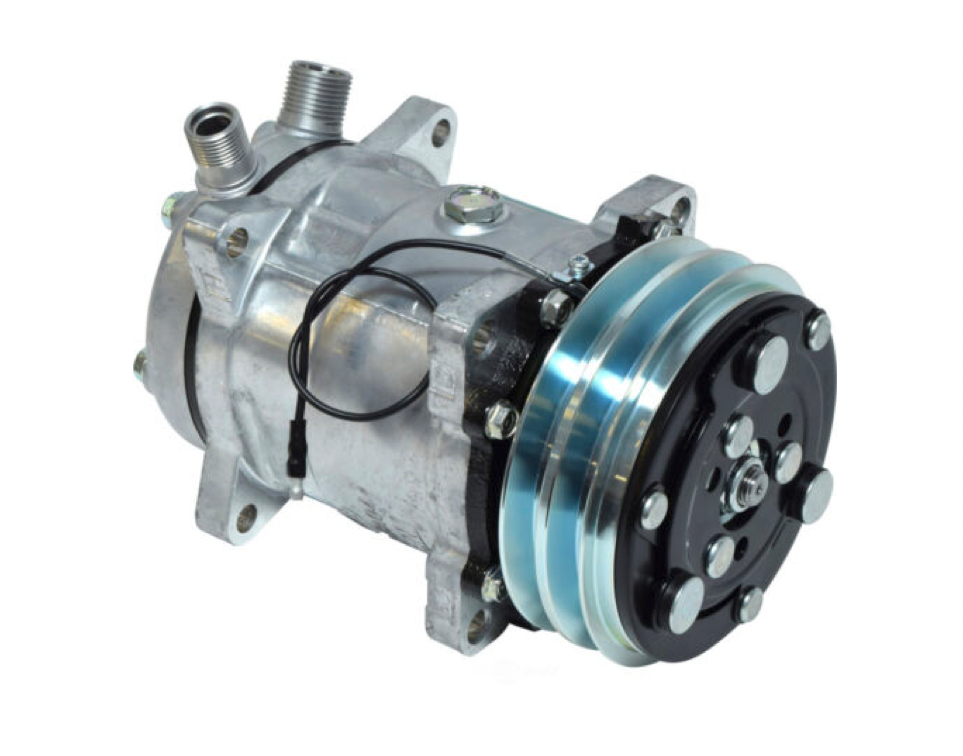

Compressor

Model: C5H142A12V SD508 5H14

Sanden Style  2A Groove Pulley 12v coil

Also available 8PK Pulley

100% Electric Compressor Available.

Contact us for more details, extra charges will apply

CALL 727-647-2158

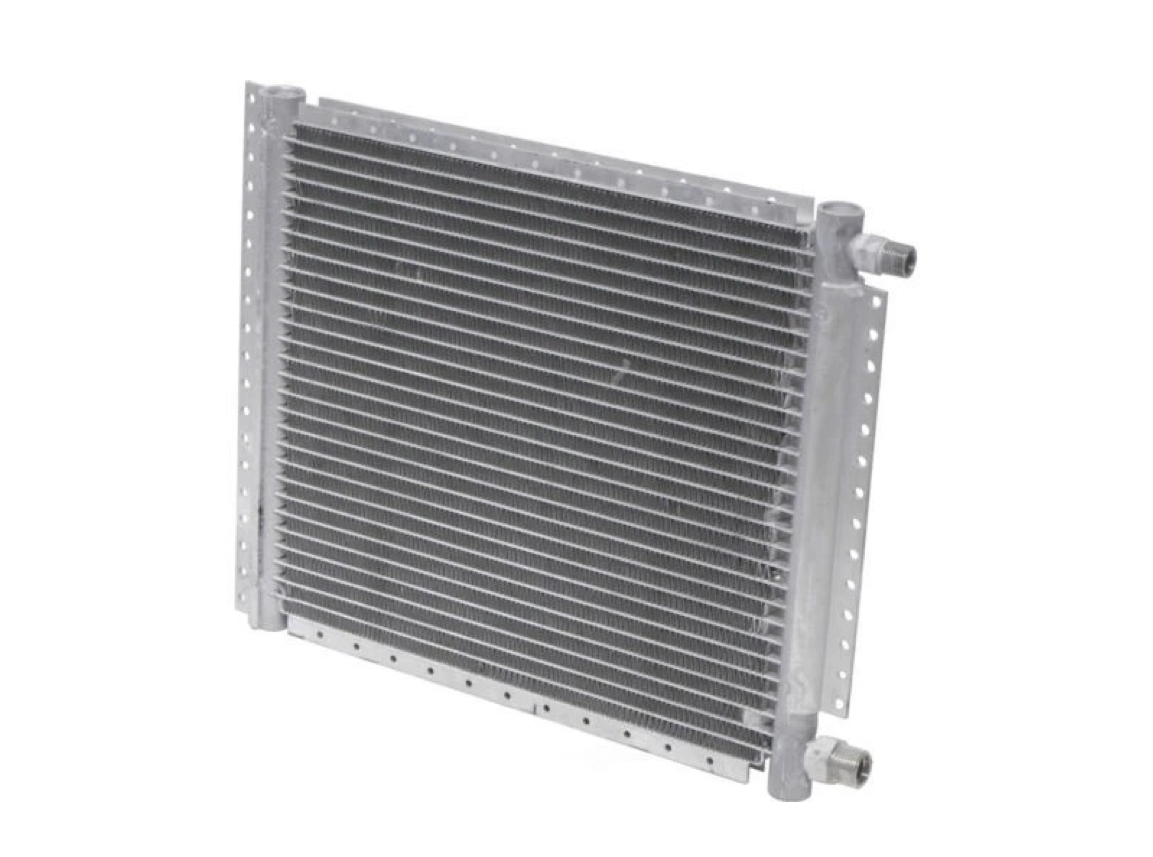

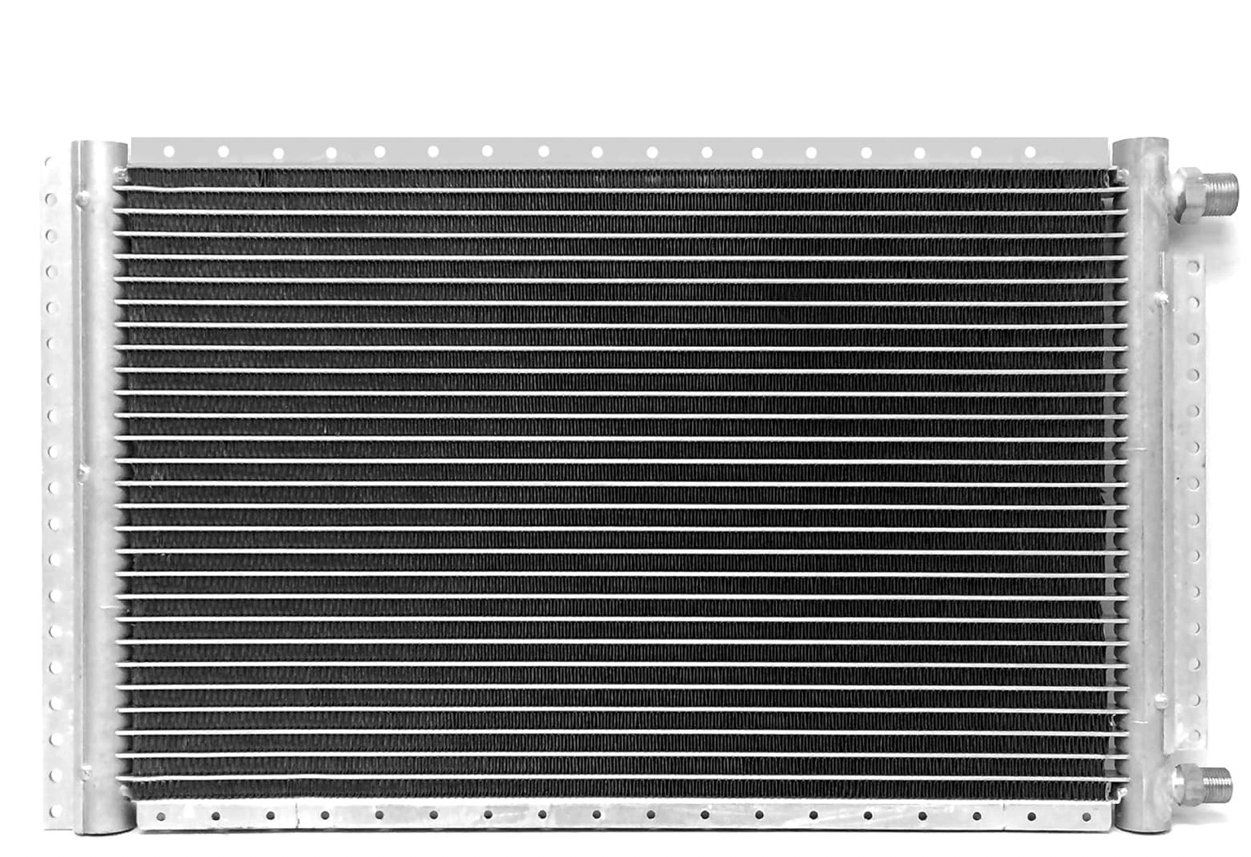

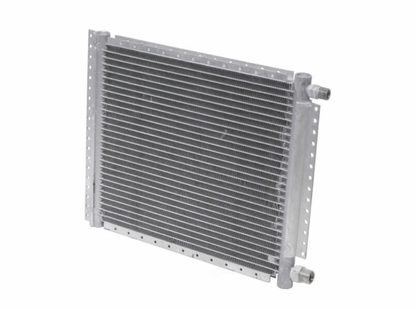

Condenser

Model: CPF121620 PARALLEL FLOW (micro-tube technology)

12"H X 16"L .70"(20mm Core Depth)W

4 Rails Aluminum

#8 O-ring IN  #6 O-ring OUT

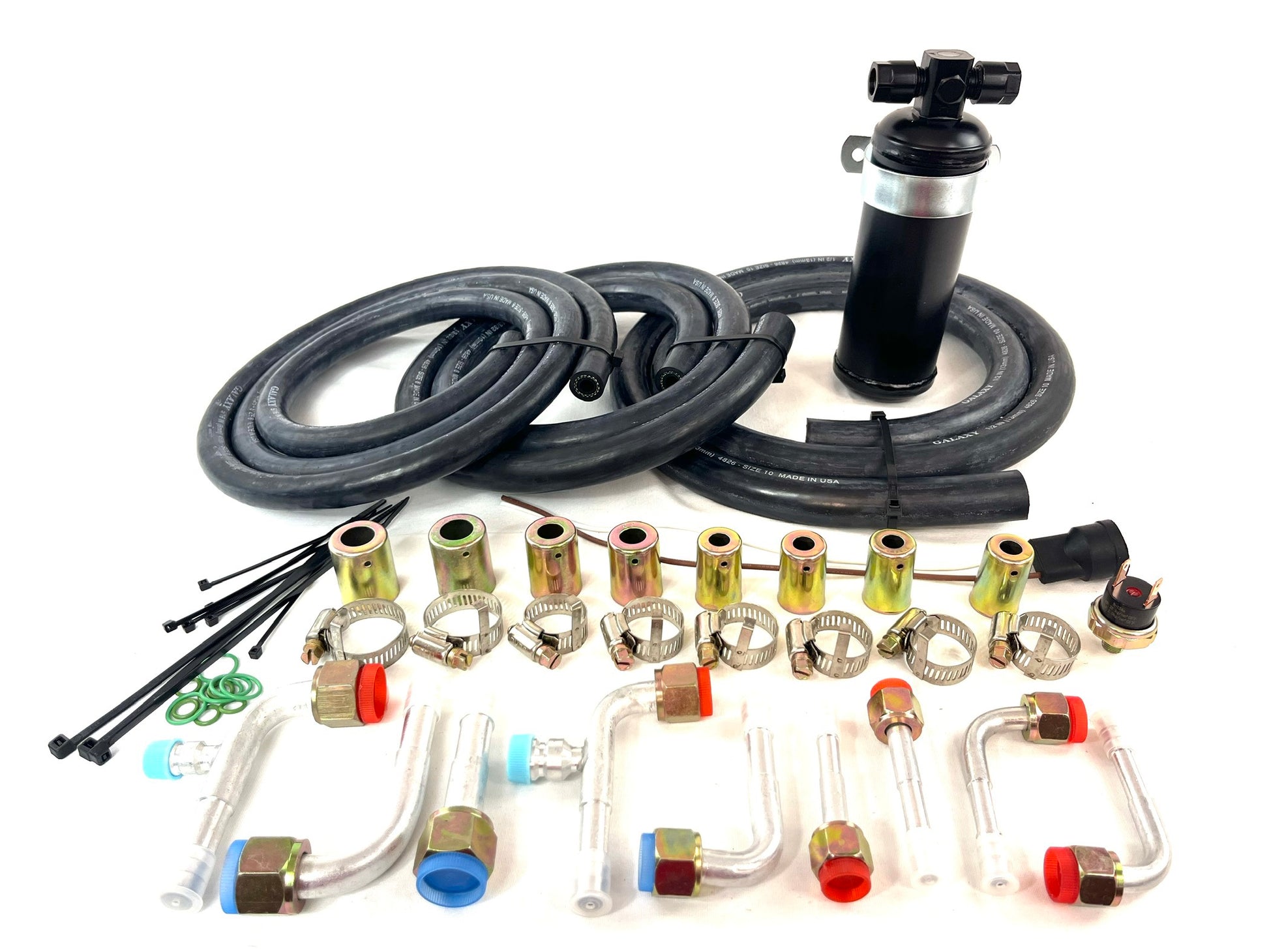

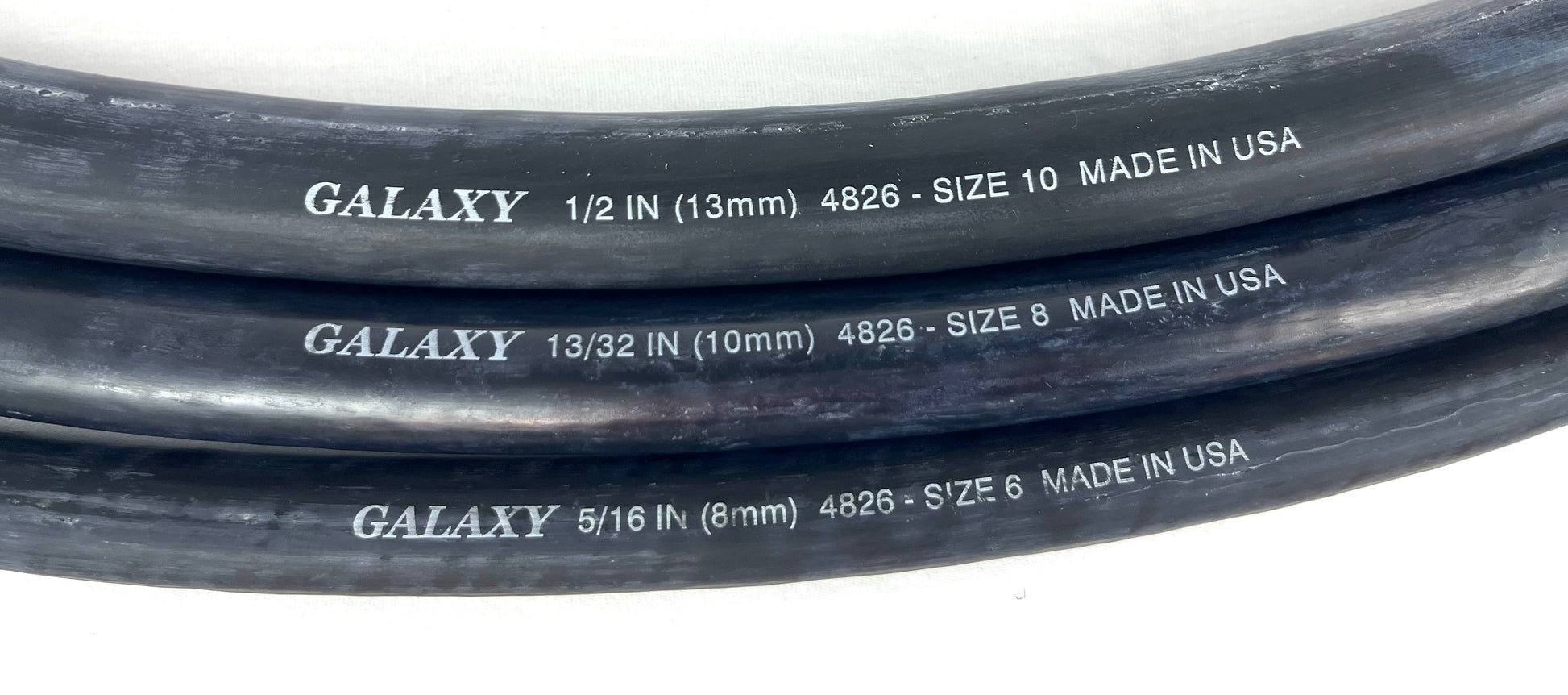

Hoses Set

Model: H6516,H81332, H1012 A/C HOSE

• #6 5/16 = 6'feet
• #8 13/32 = 4'feet
• #10 1/2 = 5' feet

(NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply)

Fitting Set

Model: FTSET404

• 1-N° 10 90° O-ring Fitting w/R134a Serv Port
• 1- N° 8 90° O-ring Fitting w/R134a Serv Port
• 1- N° 10 Straight O-ring Fitting
• 1- N° 10 90° O-ring Fitting
• 2- N° 6 90° O-ring Fitting
• 1- N° 8 90° O-ring Fitting
• 2- N° 6 Straight O-ring Fitting
• Set include metal FERRULES and CLAMPS

If you decided use a/c clamps you don't need special crimper tool

 (YES... We include both systems)O-ring set is included

Filter Drier

Model: FD100A ALUMINUM

Model: FD100B BLACK

2½"Diameter 7½" Height  Sight Glass

#6 ⅜ X ⅜ O-ring connections both sides

(HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED)

 (NOTE: Aluminum or Black) if you have a preference let us know leaving a message

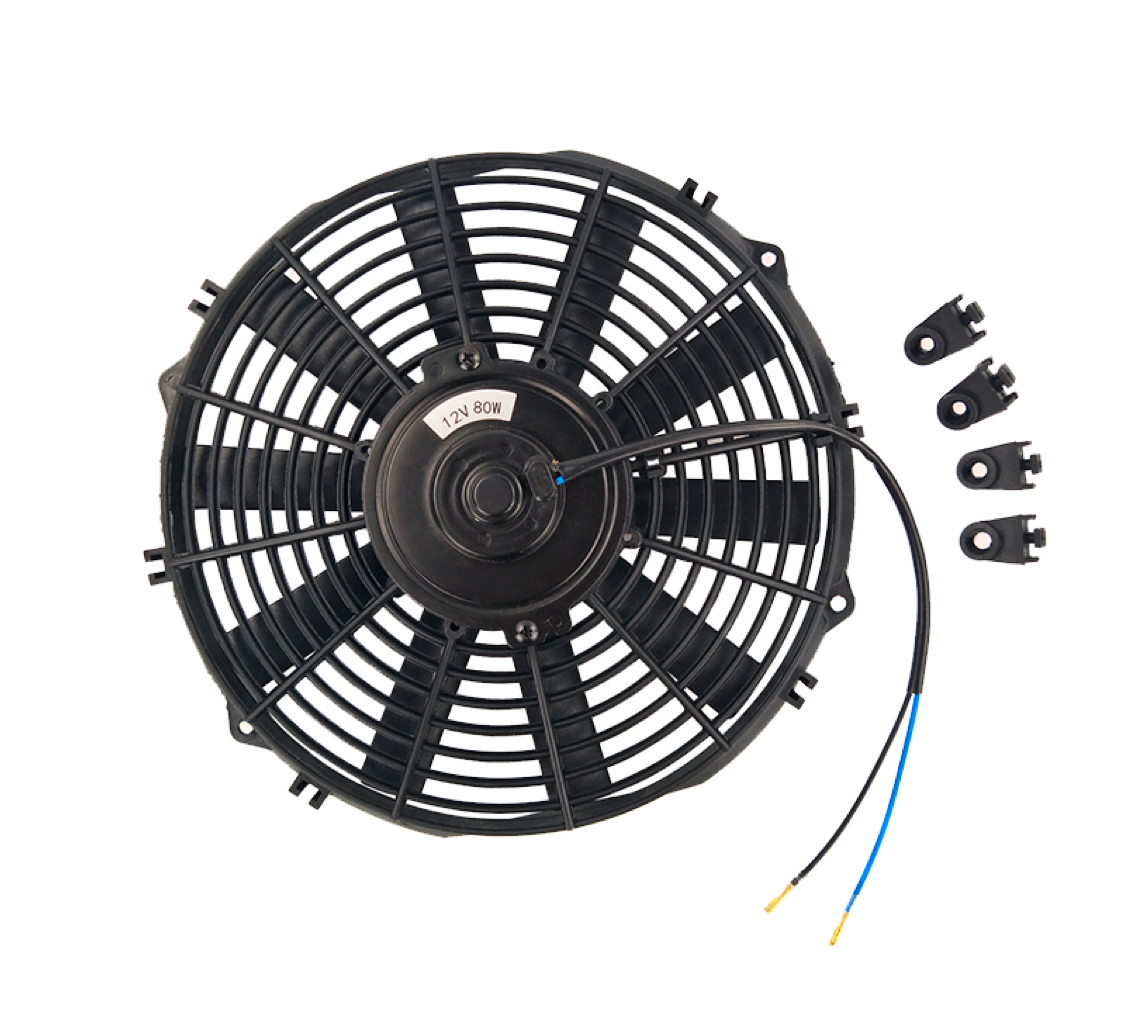

Condenser Fan

Model: CF1212

12" Diameter

12 Volts 80W 6 AMP

Reversible Puller or Pusher

4 Mounting Brackets included

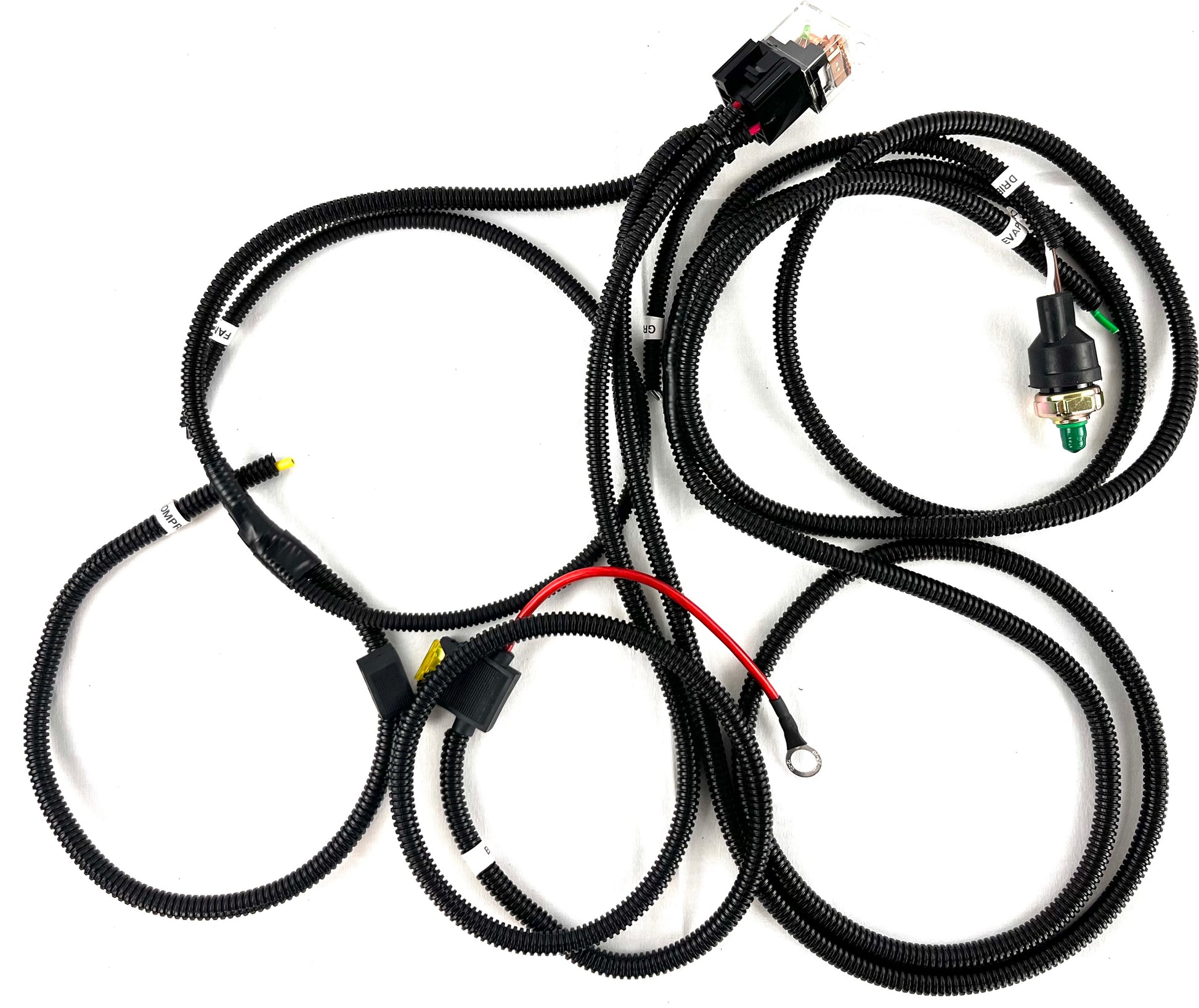

Electrical Harness

all ours kits come with   “Plug and Play”  Electrical harness to easily connect all the components designed for a regular size car or truck applications.  for special Lengths applications please contact us extra charges maybe apply.

FAQ.... Please contact us. We will be happy to help you make the best decision  SE HABLA ESPAÑOL Located in Tampa Bay Area Florida USA. Nationwide shipping

FREE Shipping for continental U.S. only. International buyers, including Puerto Rico, Alaska, and Hawaii, Please contact for a quote before buying.

We provide comprehensive DIY installation instructions and offer technical support via phone or email at no additional cost throughout the installation process. However, we strongly recommend that installation be carried out by a certified professional. Please note that we are not liable for any damage to you or your vehicle during installation.

Return policy, this item can be returned in its original condition and package for a full refund or replacement within 30 days

NOTE: Gas R-134a, compressor mounting bracket is not included, we sold separately  We can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc.
