A/C KIT UNIVERSAL IN DASH EVAPORATOR 450-000 Top port Outlets HEAT & COOL

We are a 100% U.S.-based business operating out of Florida. We create local jobs and fully comply with all U.S. tax obligations. When you choose our products, you support an American company dedicated to quality, integrity, and exceptional service.

Our company offers premium universal A/C kits compatible with classic cars, hot rods, antique vehicles, trucks, and a wide variety of custom projects. Designed for performance and reliability, our products are ideal for restorations, upgrades, and complete custom builds.

For many applications could be IN-DASH please read carefully about dimensions, flex duct 2" In diameter

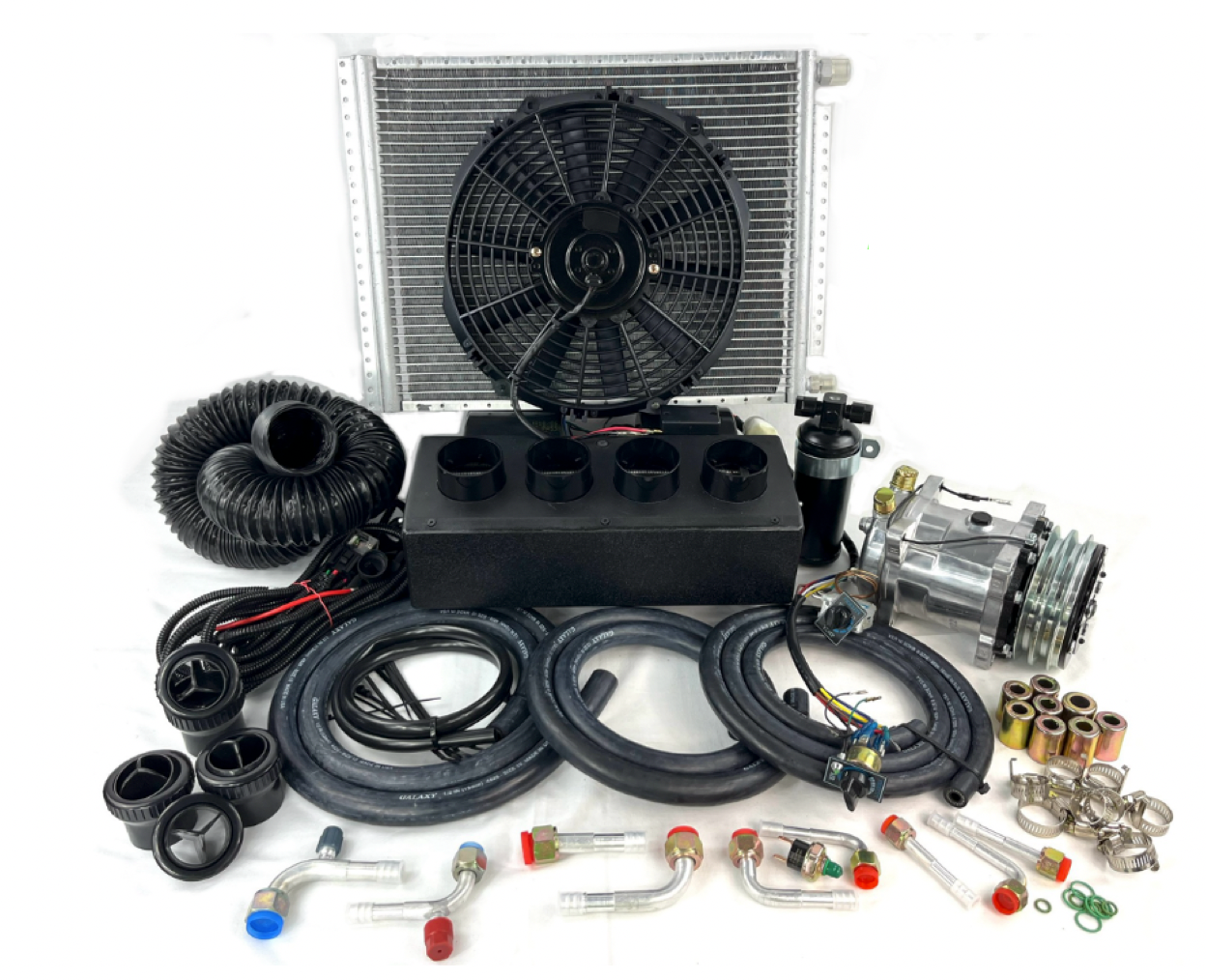

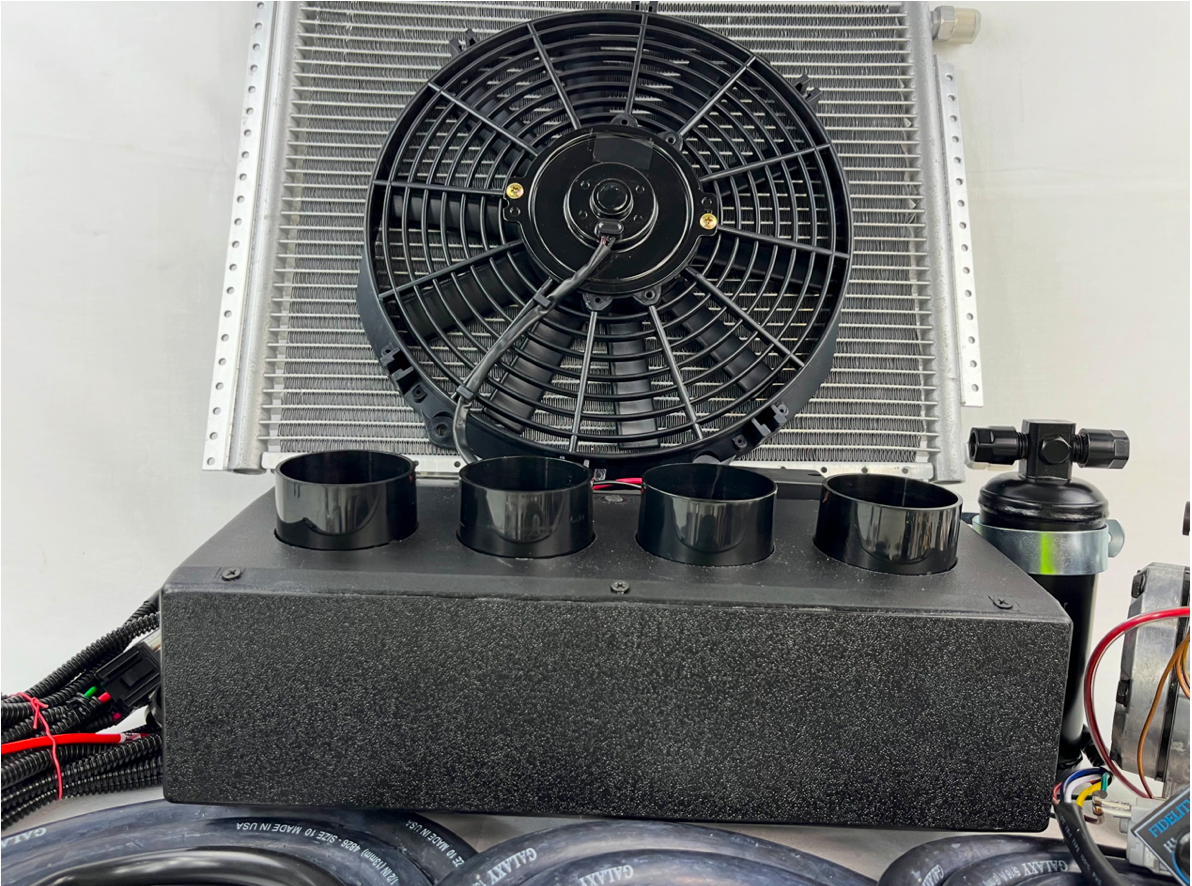

THE KIT INCLUDES:

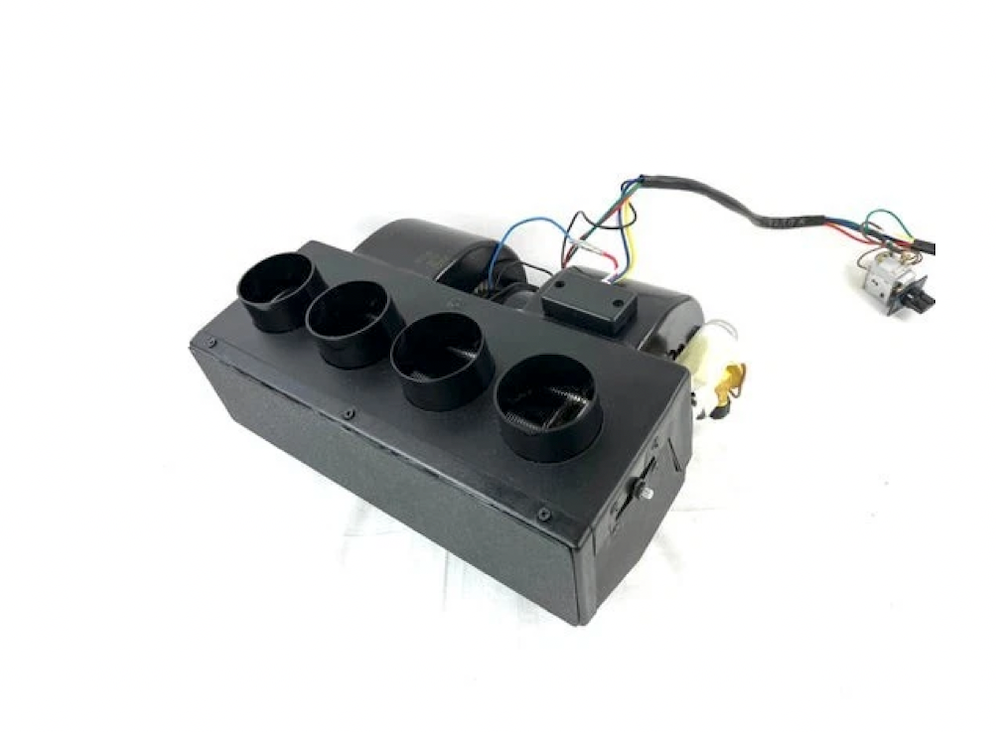

A/C KIT UNIVERSAL IN DASH EVAPORATOR 450-000 with 4 Vents and flex duct hose

Model: E-450B-000 TOP OUTLETS

HEAT AND COOL

36 pass 4way all aluminum coil

Expansion valve 1.5 Ton

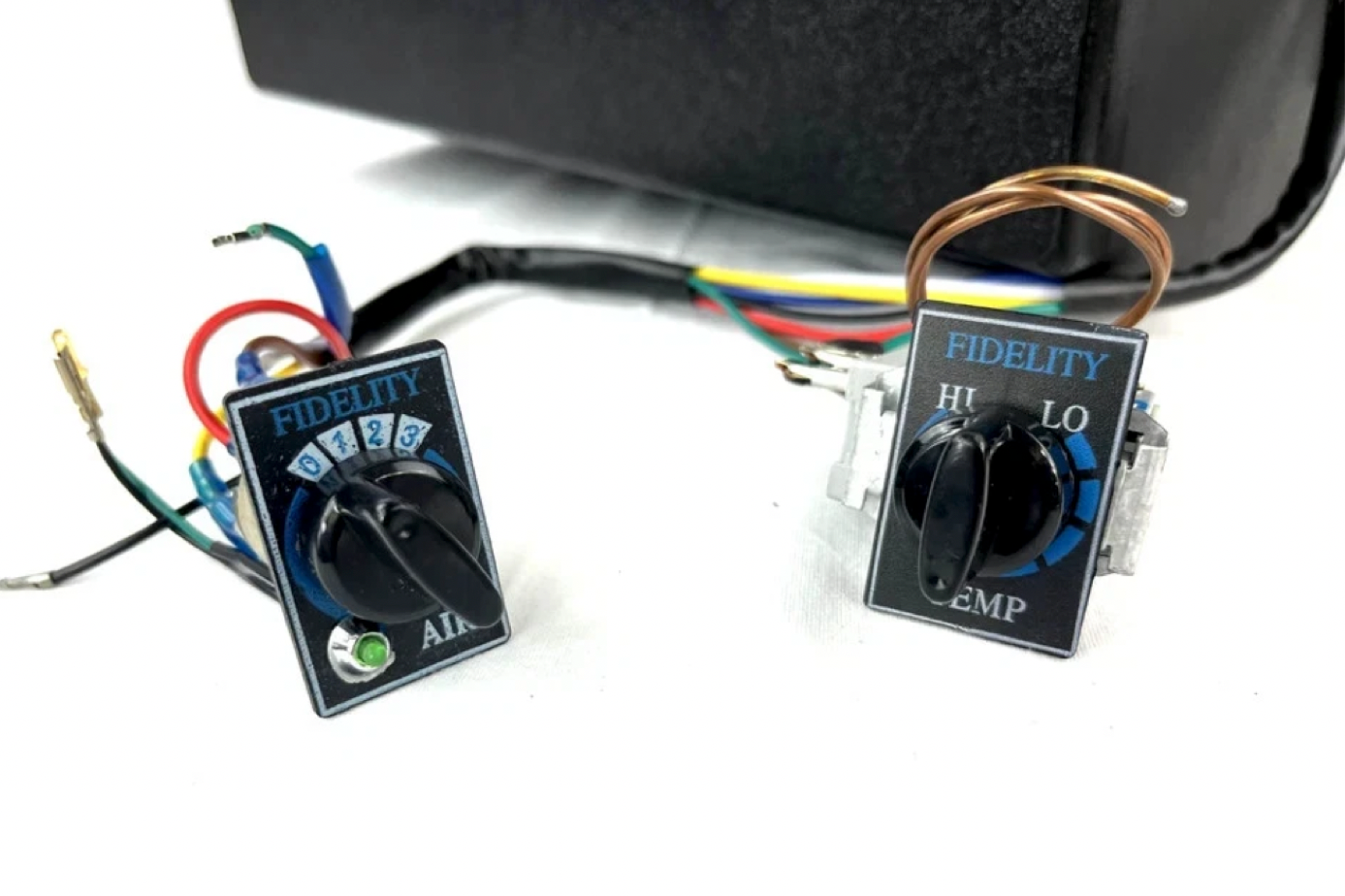

Thermostat and rotative 3-speed blower switch

12 VOLTS DOUBLE SHAFT BLOWER MOTOR

Mounting bracket drain hose and T included

22,220 BTU capacity 359 CFM

DIMENSIONS: L17" X D12½" X H6½"

10' Flex Duct Hose 4 Round Black Vents

Compressor

Model: C5H14  SD508 5H14 2A Grove Pulley 12v coil

Also available 8 Groove SERPENTINE  Pulley 12v coil

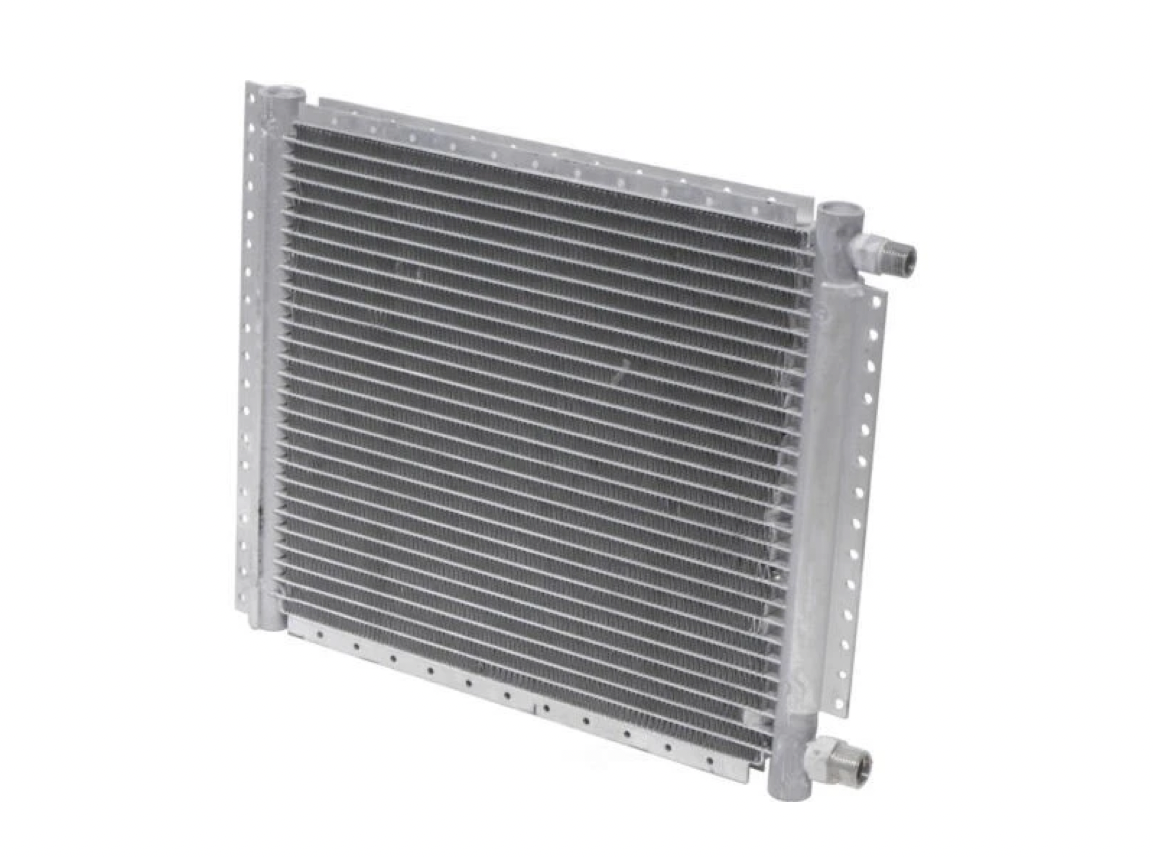

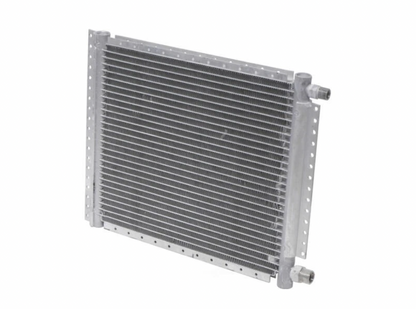

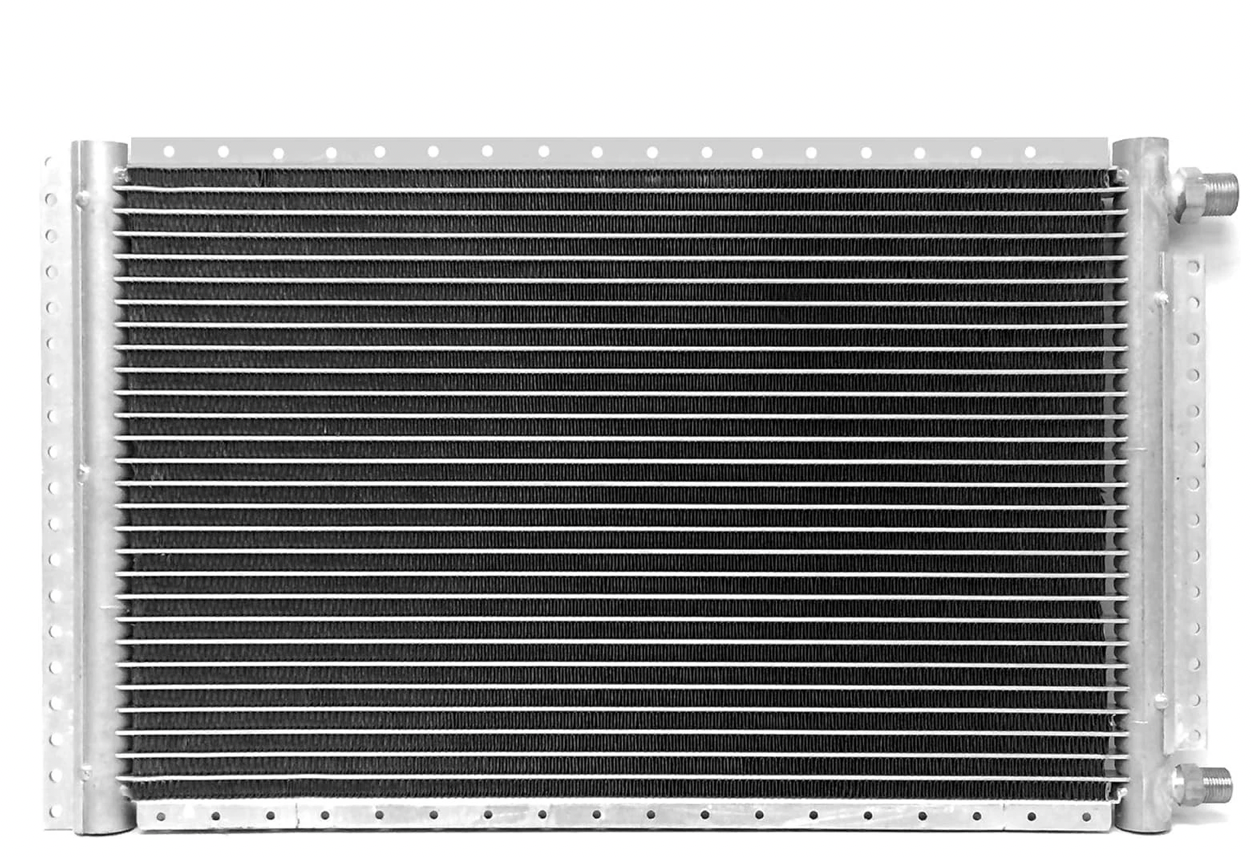

Condenser

Model: CPF141820

PARALLEL FLOW (micro-tube technology)

14"H X 20"L .70"(20mm)W

4 Rails Aluminum

#8 O-ring IN  #6 O-ring OUT

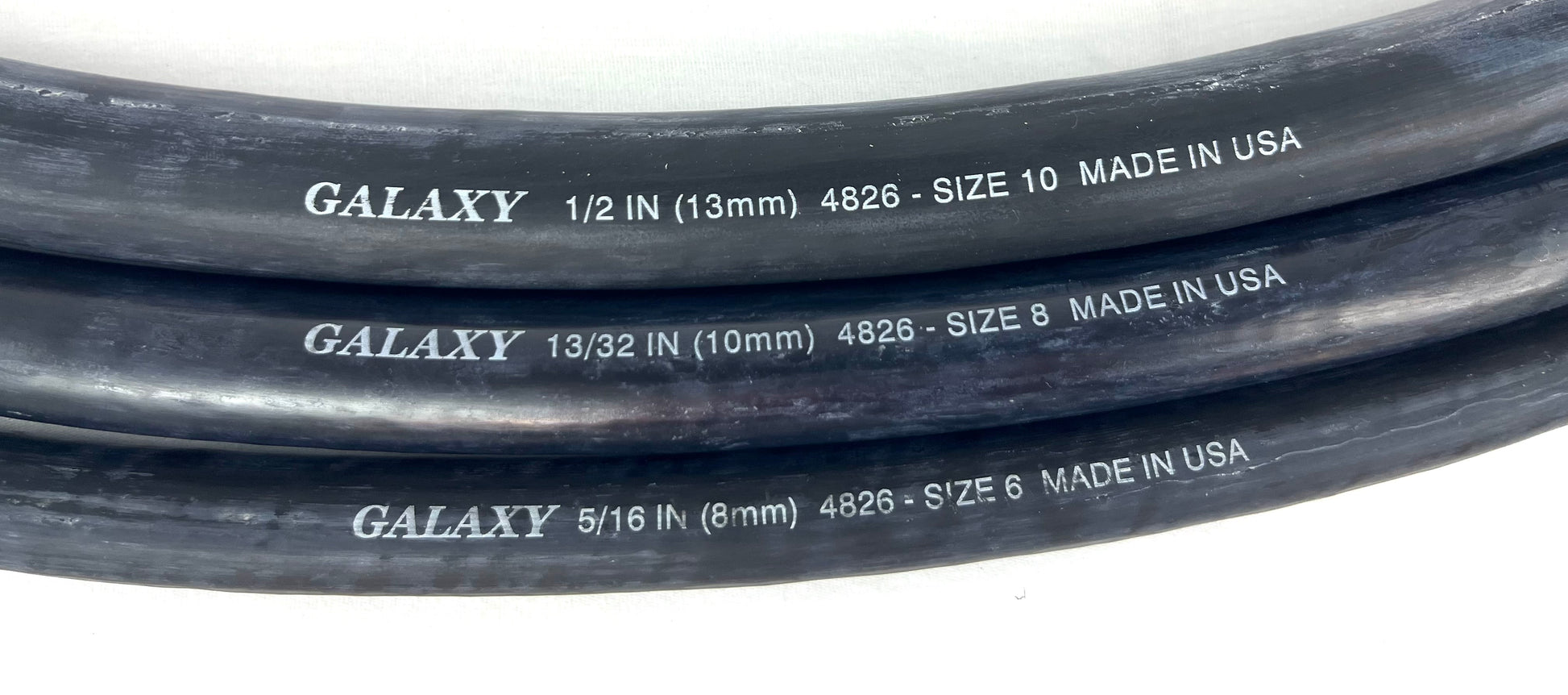

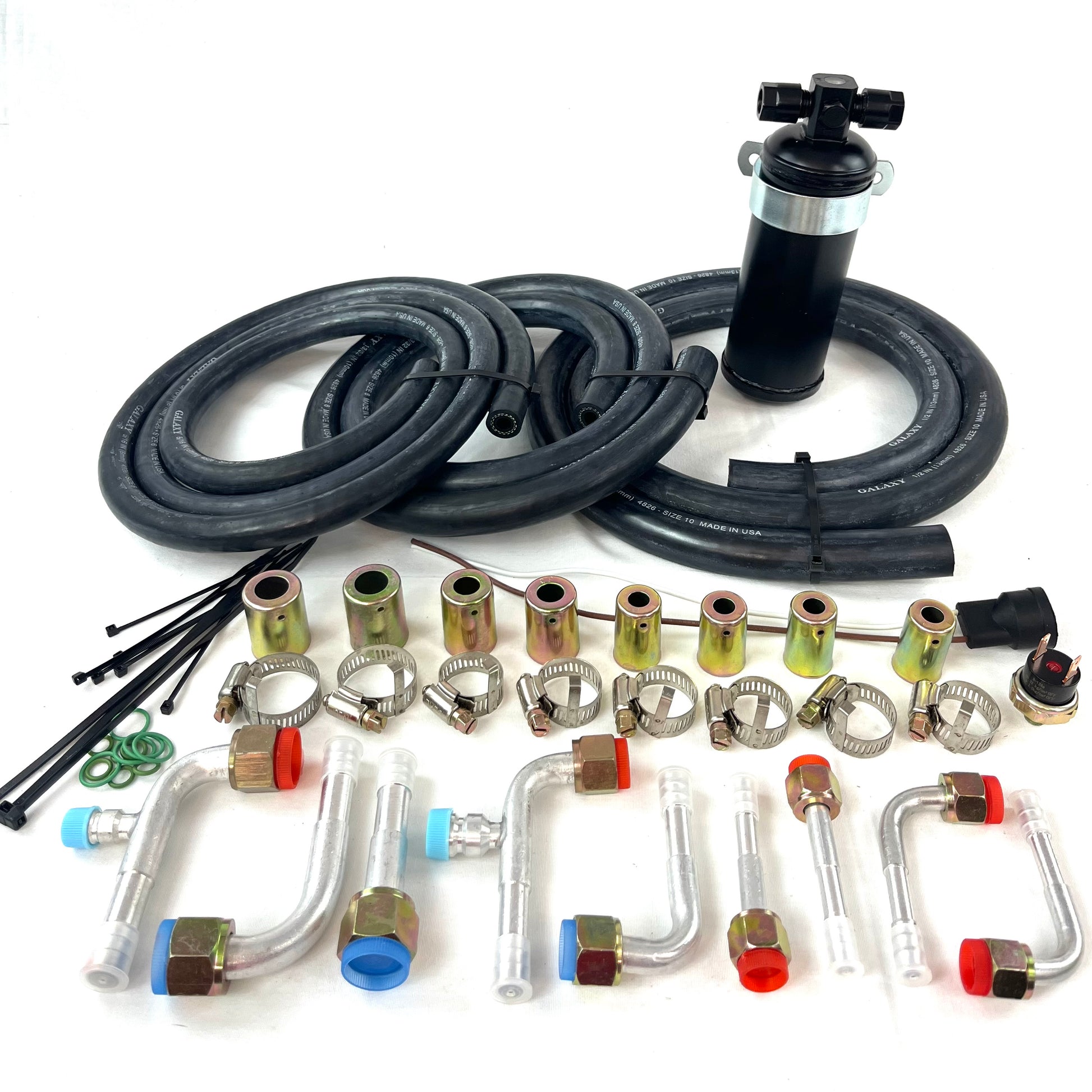

Hoses Set

LONG HOSE IDEAL FOR BIG SIZE CAR OR TRUCK

Model: H6516,H81332, H1012

A/C HOSE

• #6 5/16 = 9' feet
• #8 13/32 = 5' feet
• #10 1/2 = 8' feet

(NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply)

Fitting Set

Model: FTSET404

• 1-N° 10 90° O-ring Fitting w/R134a Serv Port
• 1- N° 8 90° O-ring Fitting w/R134a Serv Port
• 1- N° 10 Straight O-ring Fitting
• 1- N° 10 90° O-ring Fitting
• 2- N° 6 90° O-ring Fitting
• 1- N° 8 90° O-ring Fitting
• 2- N° 6 Straight O-ring Fitting
• Set include metal FERRULES and CLAMPS

If you decided use a/c clamps you don't need special crimper tool

(YES... We include both systems)

O-ring set is included

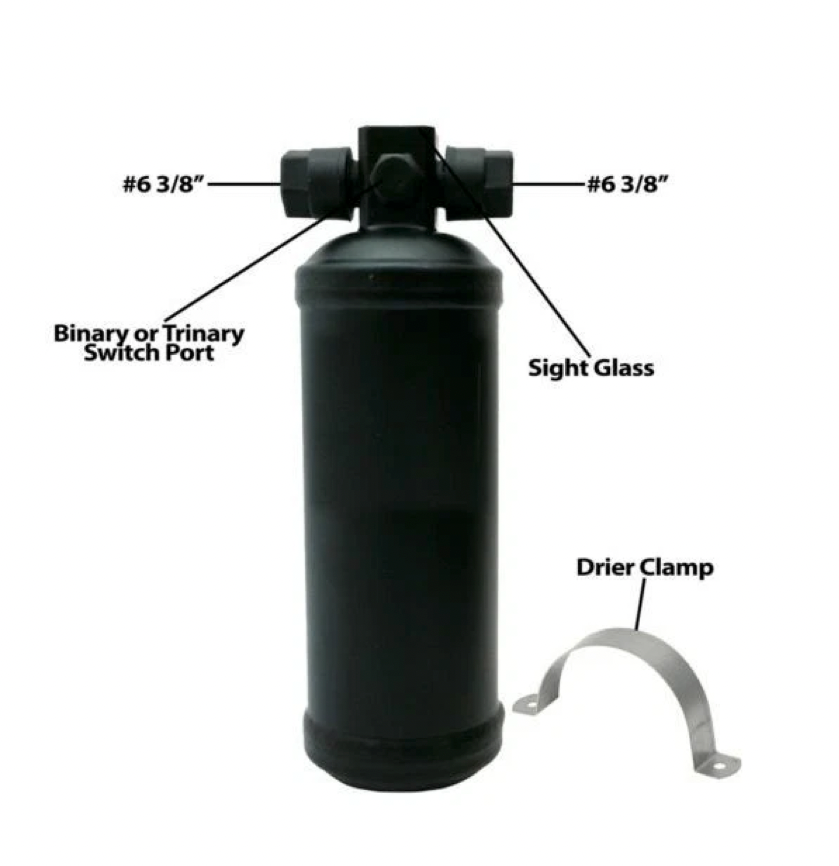

Filter Drier
Model: FD100A ALUMINUM
Model: FD100B BLACK
2½"Diameter 7½"Hight  Sight Glass
#6 ⅜ X ⅜ O-ring connections both sides

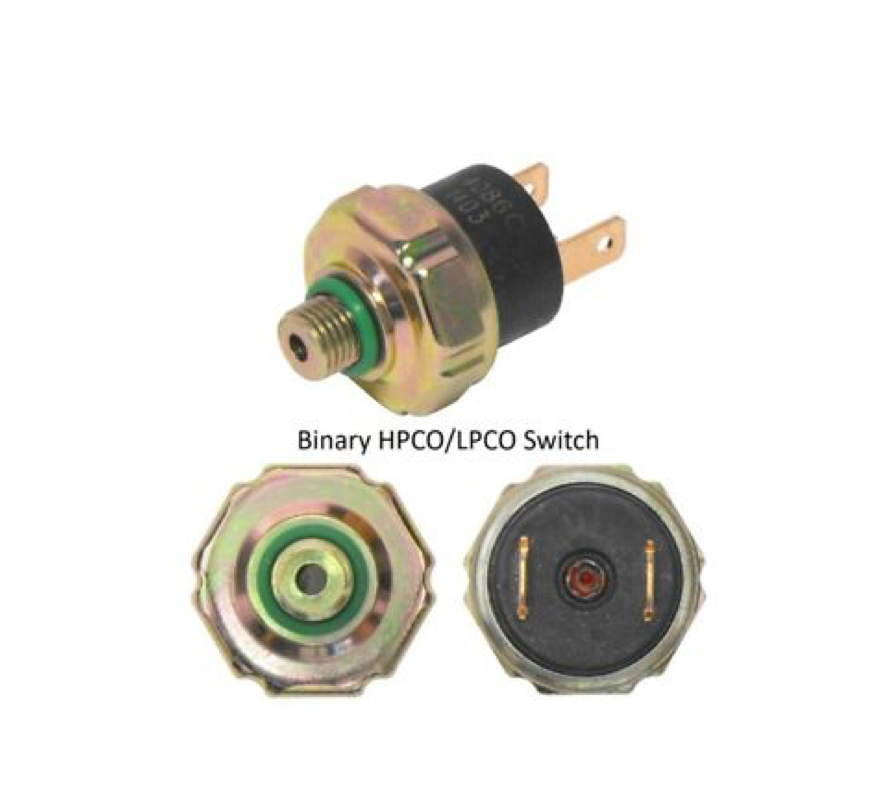

(HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED)
 (NOTE: Aluminum or Black) if you have a preference let us know leaving a message

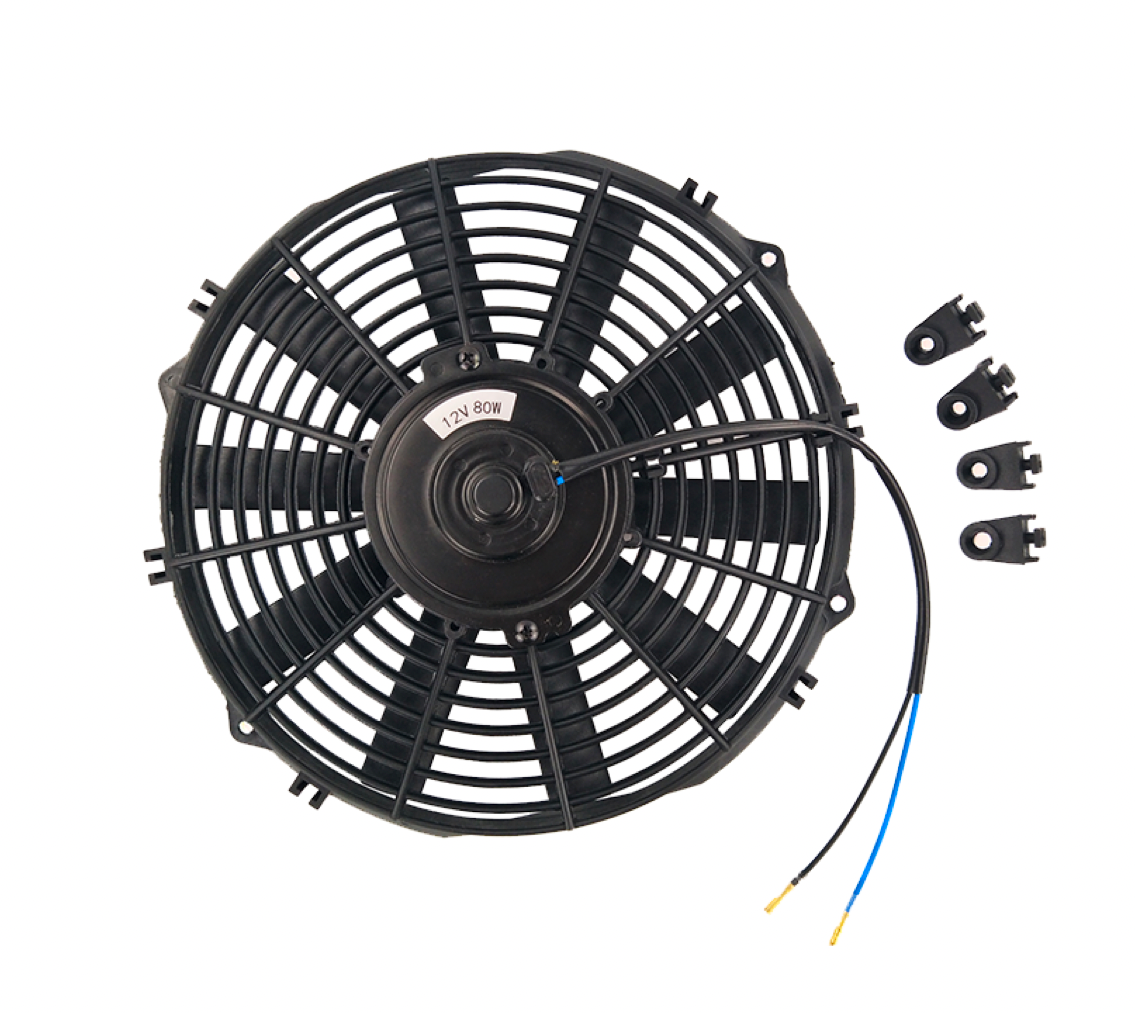

Condenser Fan

Model: CF1214
14" Diameter
12 Volts 80W 6 AMP
Reversible Puller or Pusher
4 Mounting Brackets included

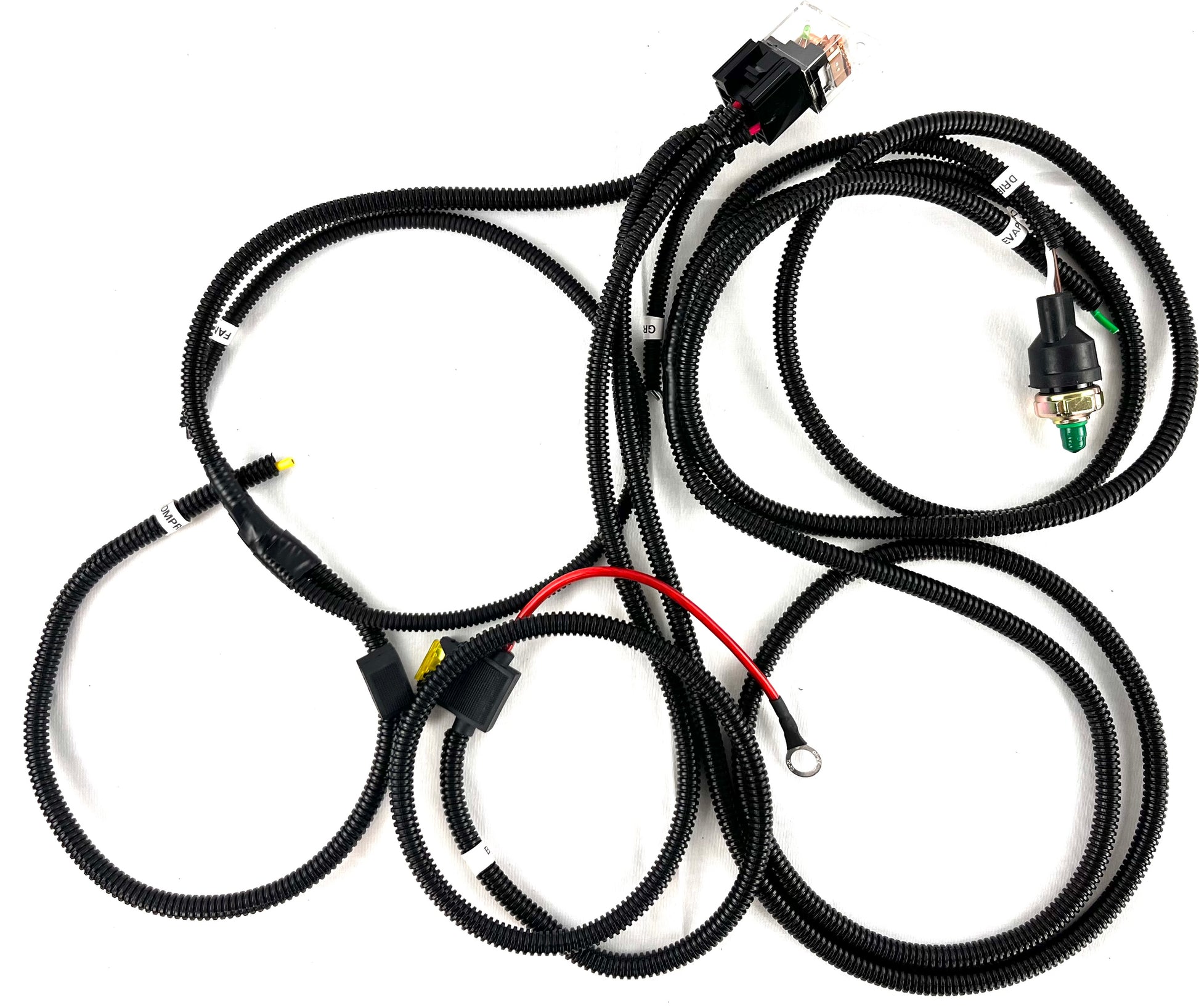

Electrical Harness

all ours kits come with   “Plug and Play”  Electrical harness to easily connect all the components designed for a regular size car or trucks applications.  for special Lengths applications please contact us extra charges maybe apply

FAQ.... Please contact us we will be happy to help you make the best decision

SE HABLA ESPAÑOL

Located in Florida USA.

Nationwide FREE shipping

FREE Shipping for continental U.S. only. International buyers, including Puerto Rico, Alaska, and Hawaii, Please contact for quote before buying.

We includes full DIY installation guidelines, also we can provide you a technical support over the phone or via email during the installation process no extra cost, even so we recommend that the installation be done by a certified professional We are not responsible for any damage caused to you or your vehicle.

Return policy, this item can be returned in its original condition and package for a full refund or replacement within 30 days.

NOTE: Gas R-134a, compressor mounting bracket, heater hoses and control valve is not included, we sold separately  We can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc.
