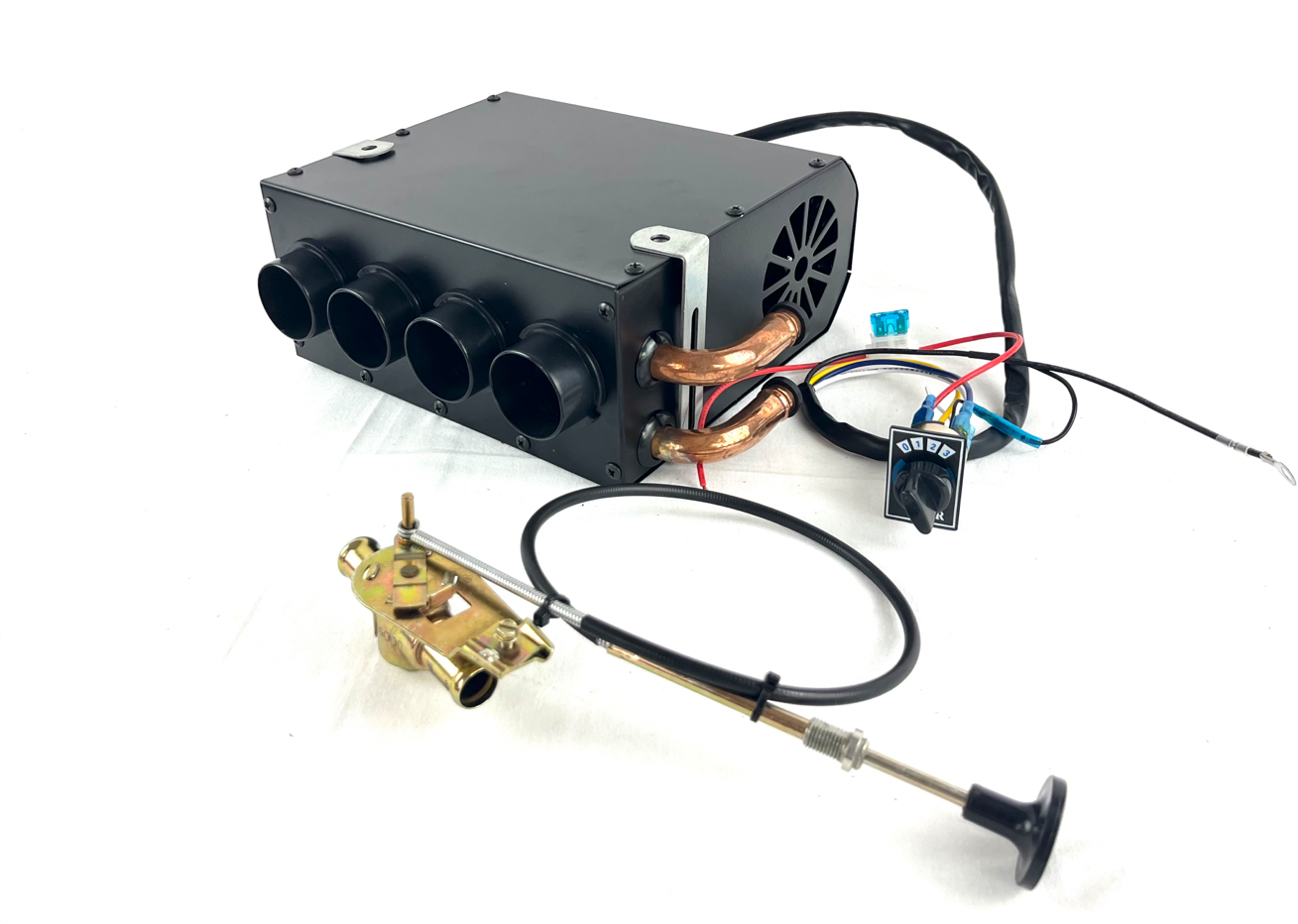

4 Ports Universal Under Dash Heater 12V Speed Switch Control Valve Kit 12,000BTU

We are a 100% U.S.-based business operating out of Florida. We create local jobs and fully comply with all U.S. tax obligations. When you choose our products, you support an American company dedicated to quality, integrity, and exceptional service.

Our company offers premium universal A/C kits compatible with classic cars, hot rods, antique vehicles, trucks, and a wide variety of custom projects. Designed for performance and reliability, our products are ideal for restorations, upgrades, and complete custom builds.

Contact us for special orders.

727 647 2158

BRAND NEW HEATER COMBO

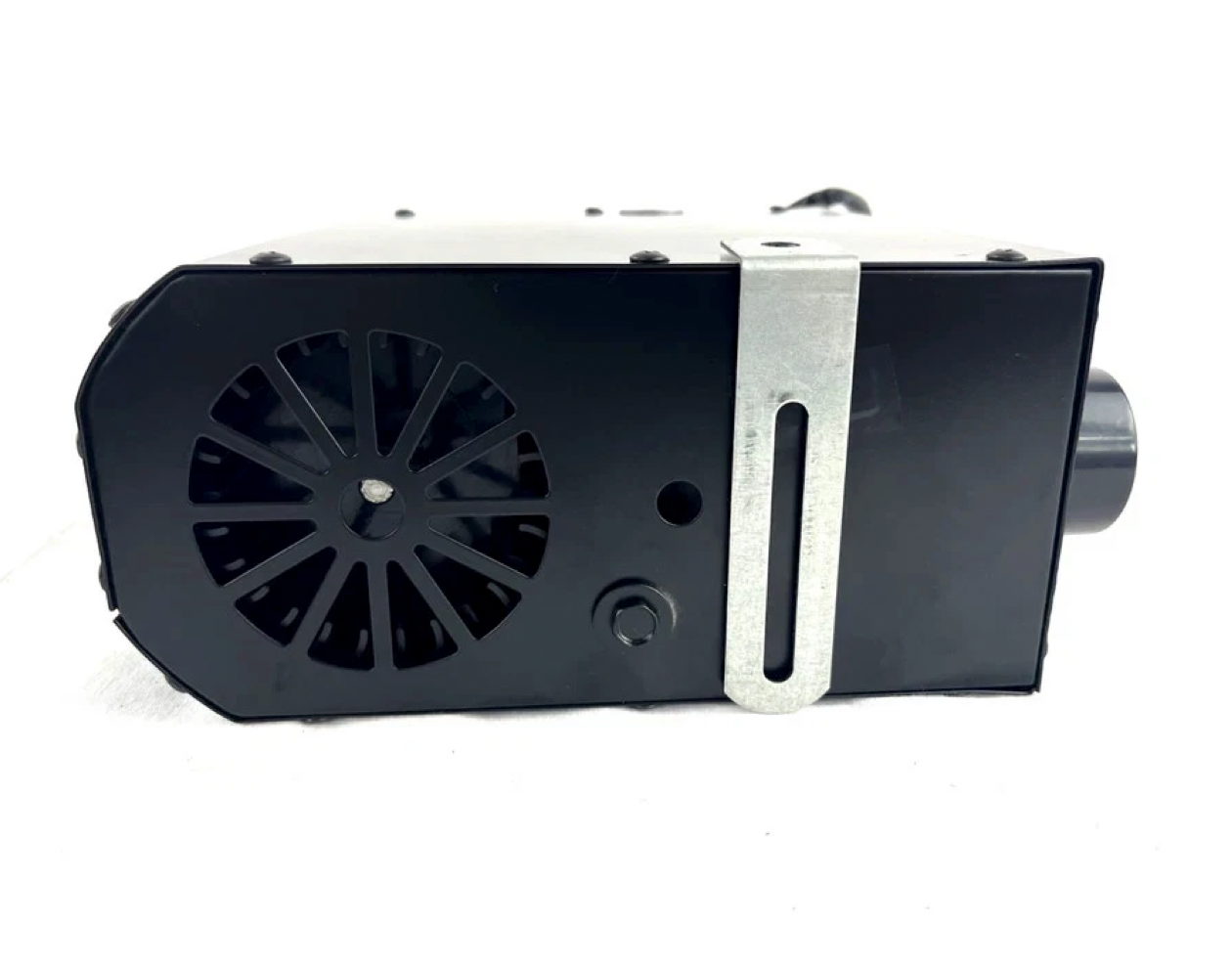

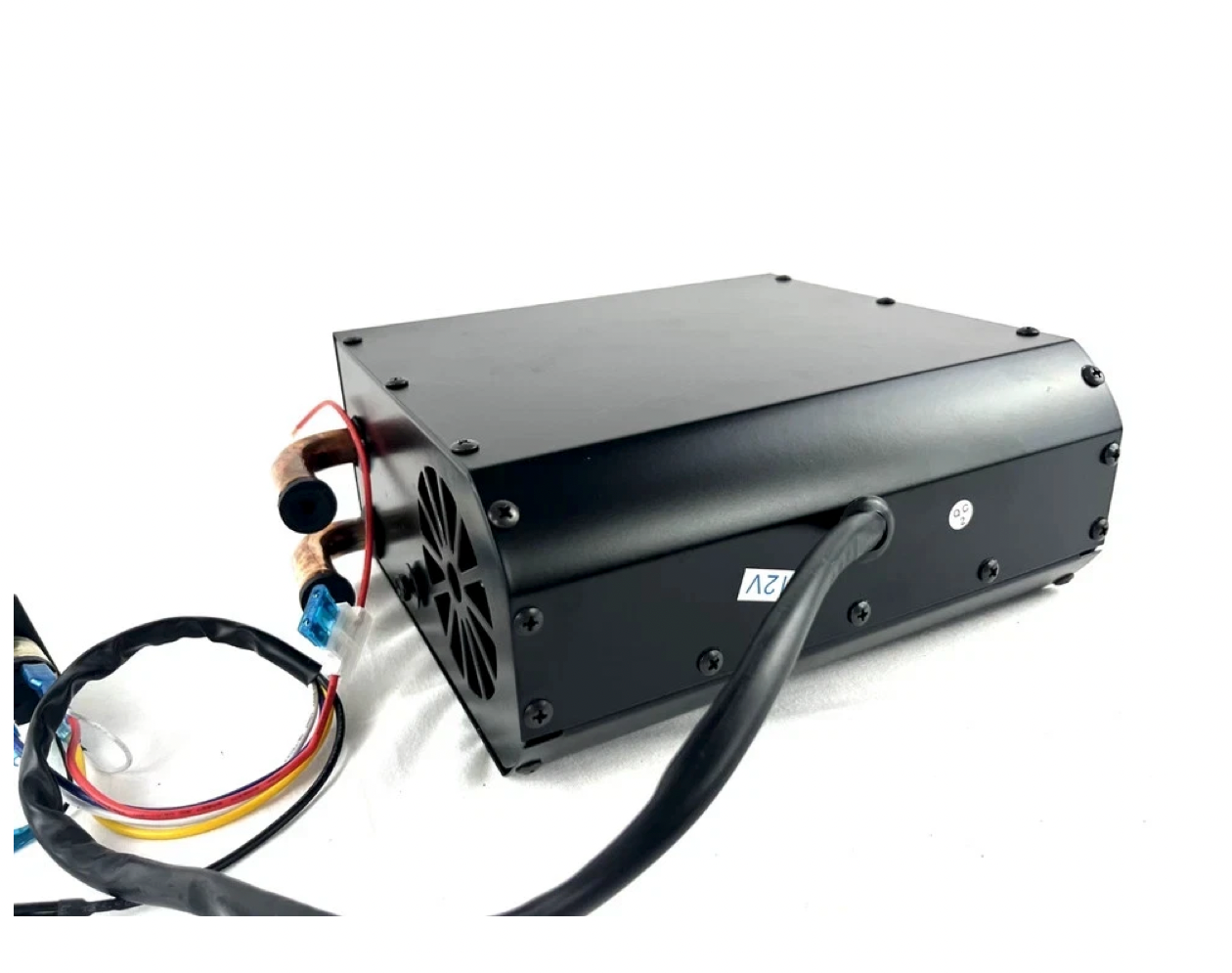

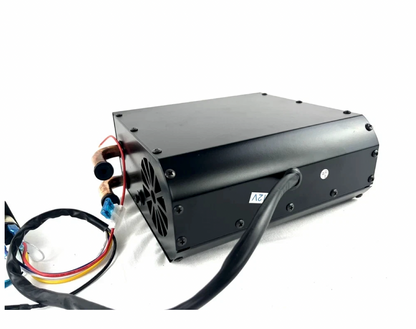

UNIVERSAL UNDER DASH HEATER UNIT 12V 12,000 BTU

SPEED SWITCH & HEATER CONTROL VALVE w/CABLE

Description:

Under Dash Heater Is a Kind of Energy-saving Heater That Functions in Exactly the Same Way That Your Factory Cooling System Used to. Hot Coolant from the Engine Passes Through the Heater Core, the Blower Motor Forces Air Through the Core, and Warm Air Is Expelled into the Passenger Compartment of Your Vehicle.

No Fuel Consumption, Can Provides More Heat Output than Battery-powered Heater in Low Electricity Consumption

Features:

1.Energy-efficient Heater, Can Provides More Heat Output than Battery-powered Heater in Low Consumption

2.Make Full Use of Hot Coolant, Functions in the Same Way As Engine Cooling System, Environmentally Friendly

3.High Efficient Copper Pipe Heating Core Helps to Warm up the Air Through the Core in Seconds

4.Powerful Blower Motor and 4 Holes Air Outlets Provides Strong Warm Air Flow to Passenger Compartment

5.Comes with Mounting Brackets and Speed Control Switch, Support Under Dash Installation

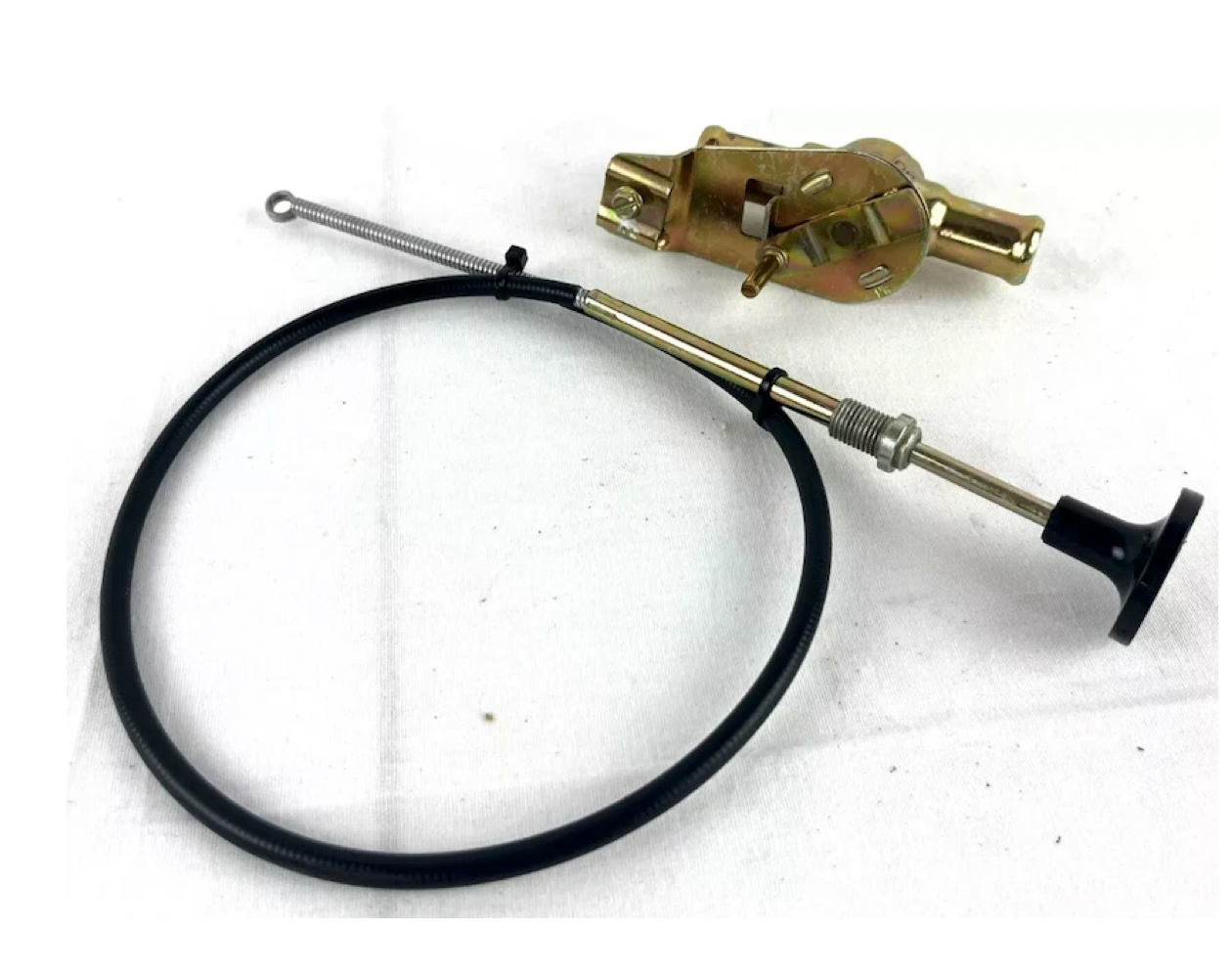

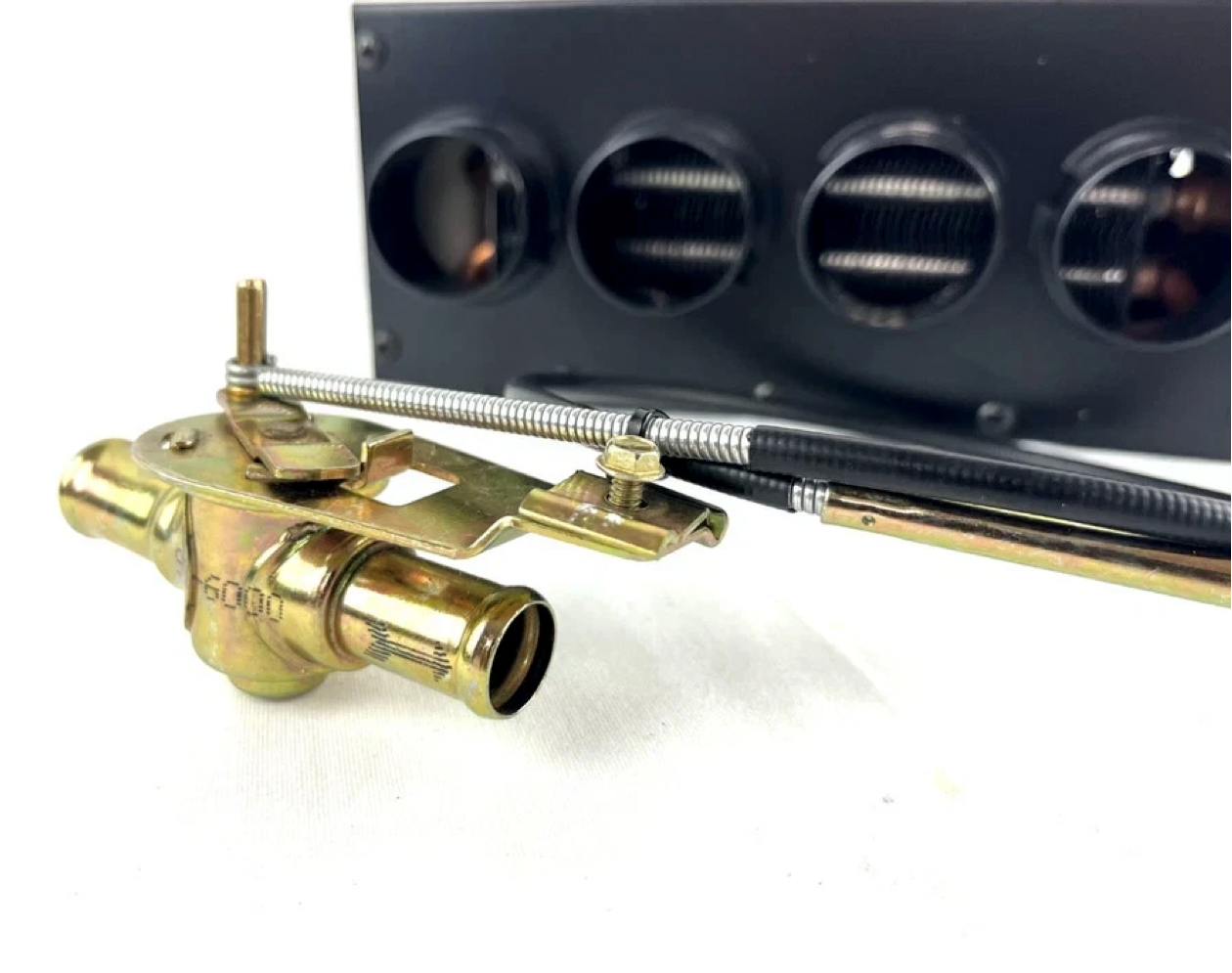

6. HEATER CONTROL VALVE W/CABLE AND KNOB

Specification:

Color: BLACK

Optional Voltage: 12v

Power Supply: 8a

Material: Copper, Iron

Weight: About 6 LBS

Size: 9"L X 8¼W" X 3¾H  4 OUTLET  1"¼

Fitting Required - 5/8'' (16mm) Inner Diameter Water Hose

Applicable Models: Trucks, Minivans, Excavators, Harvesters and so on.

Instructions:

1、Make Sure the Direction of Flow Through the Cooling System

2、Connect the Hot Coolant Hoses to the Inlet and Outlet of Heater

3、Wire Heater and Switch into Your Vehicle’s Electrical System

The Red Wire of Switch Is Connected with Positive Pole of Power Supply and Heater

The Blue Wire of Switch Is Connected with Negative Pole of Heater

The Black Wire Is Connected with Negative Pole of Power Supply

Note:

1.in Order to Install the Heater, You Have to Connect Heater to Your Engine Cooling System

2.It Also Has a Blower That Need to Be Wired into Your Vehicle’s Electrical System for Blowing Warm Air

FAQ.... Please contact us we will be happy to help you make the best decision

SE HABLA ESPAÑOL

Locate in Florida USA. Nationwide Free shipping

FREE Shipping for continental U.S. only. International buyers, including Puerto Rico, Alaska, and Hawaii, Please contact for quote before buying.

We includes full DIY installation guidelines, also we can provide you a technical support over the phone or via email during the installation process no extra cost, even so we recommend that the installation be done by a certified professional We are not responsible for any damage caused to you or your vehicle.

Return policy, this item can be returned in its original condition and package for a full refund or replacement within 30 days

NOTE: Gas R-134a, compressor mounting bracket, heater hoses and control valve is not included, we sold separately  We can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc.
