12700 BTU 12V Electric Car AC Kit Universal Underdash Compressor Air Conditioner



🇺🇸 We are a 100% U.S.-based business operating out of Florida. We create local jobs and fully comply with all U.S. tax obligations. When you choose our products, you support an American company dedicated to quality, integrity, and exceptional service.🇺🇸

Our company offers premium universal A/C kits compatible with classic cars, hot rods, antique vehicles, trucks, and a wide variety of custom projects. Designed for performance and reliability, our products are ideal for restorations, upgrades, and complete custom builds.

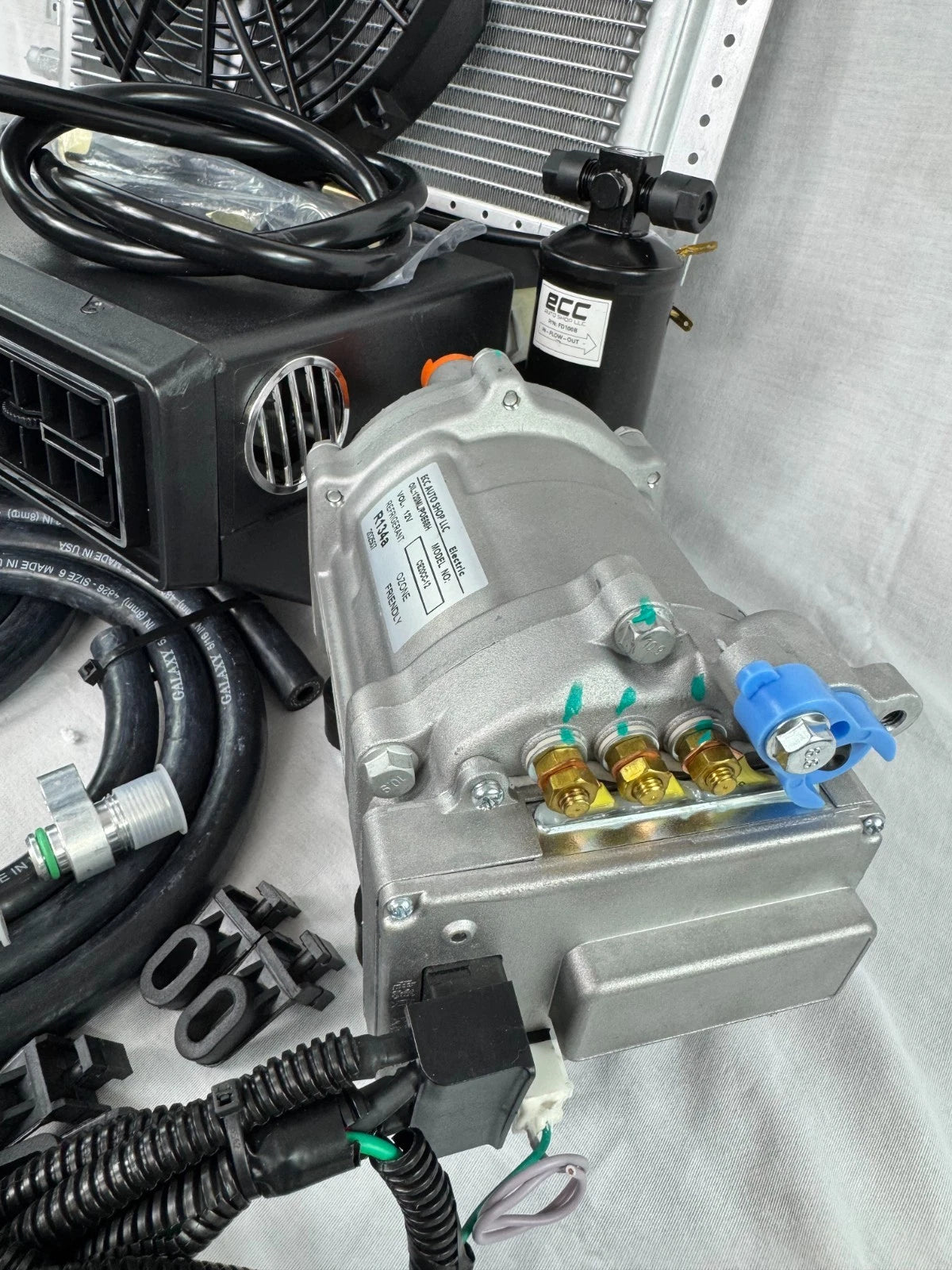

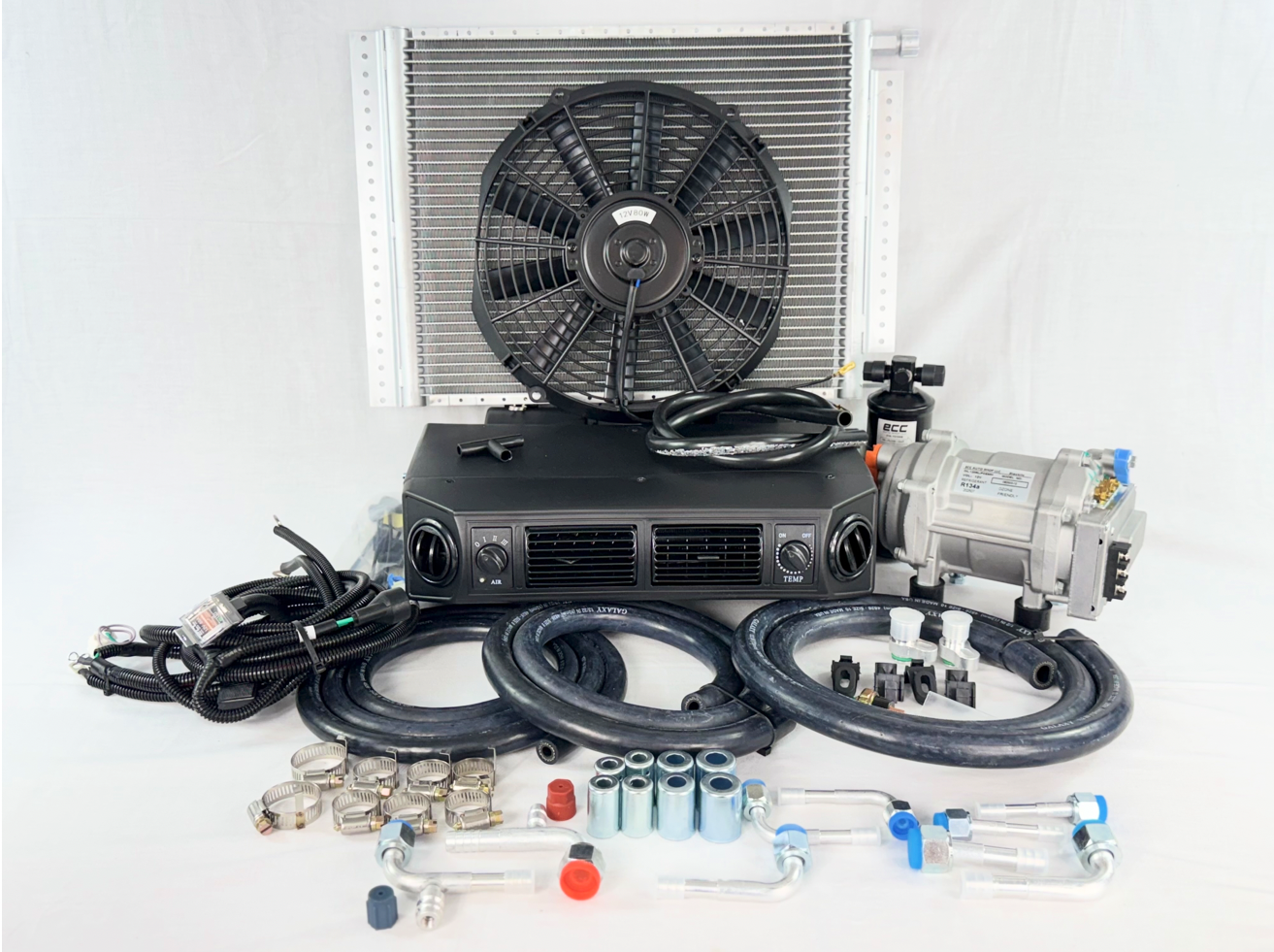

 THE KIT INCLUDES:

⚡ 100% ELECTRIC 🔋 COMPRESSOR ⚙️

12 VOLTS DC WITH ELECTRICAL HARNESS

A/C KIT UNIVERSAL UNDERDASH EVAPORATOR

HEAT & COOL 404-100 ELECTRICAL HARNESS

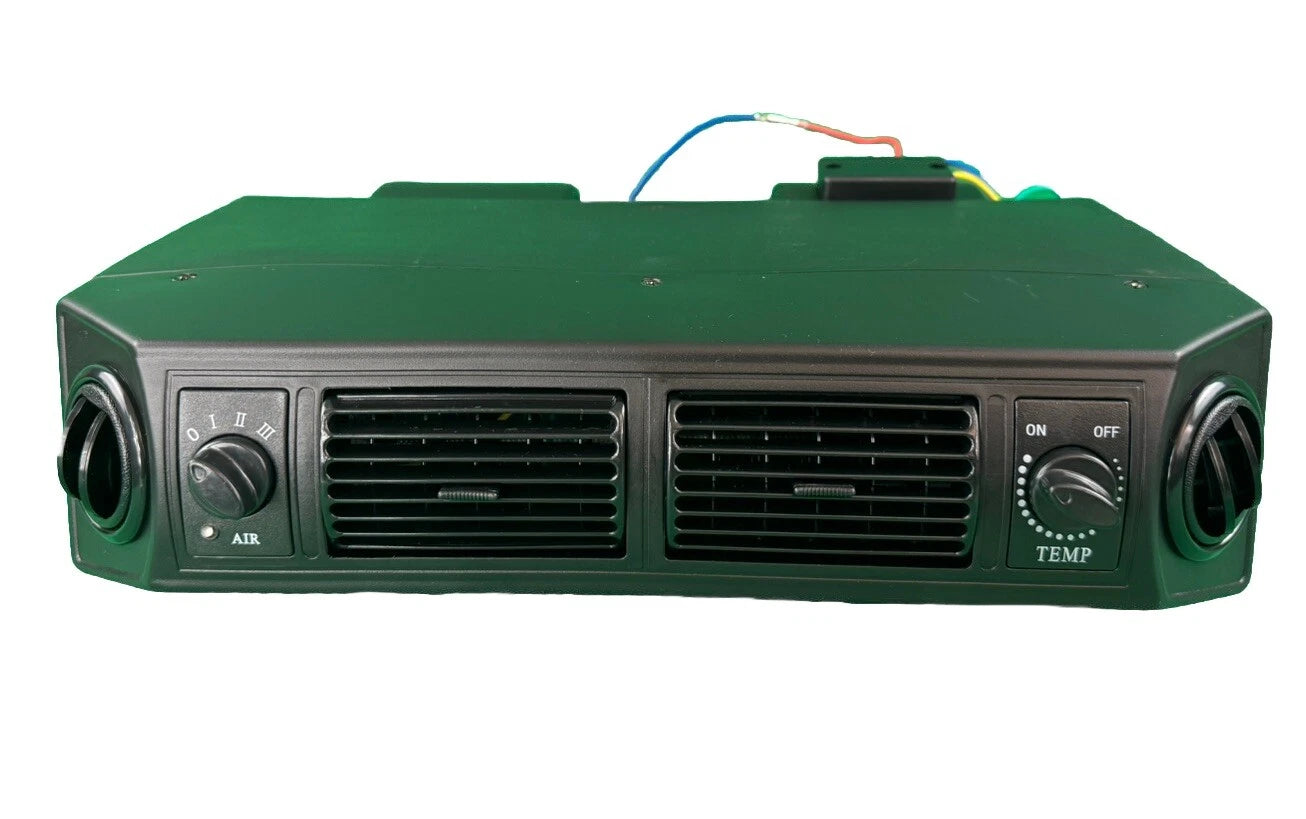

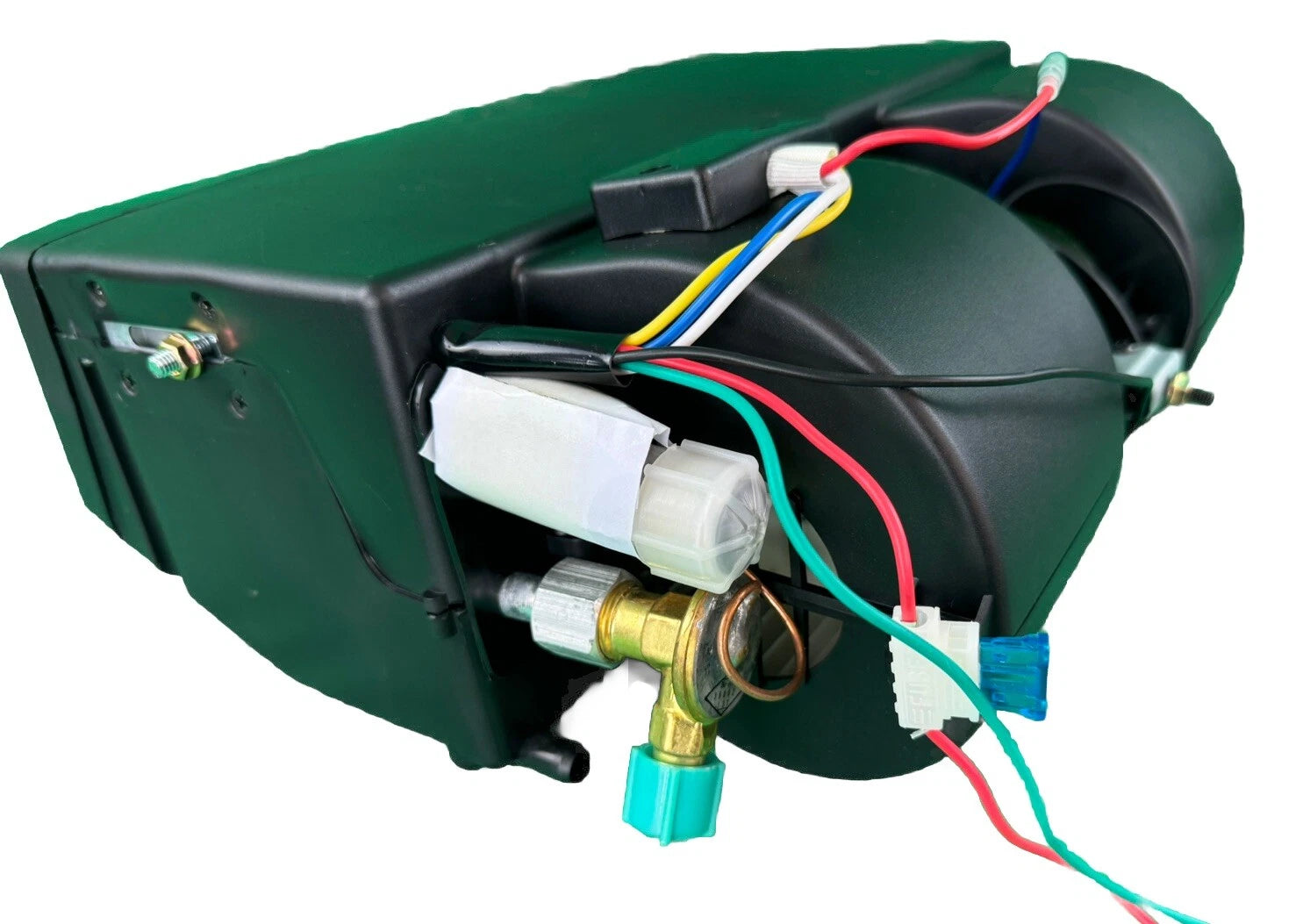

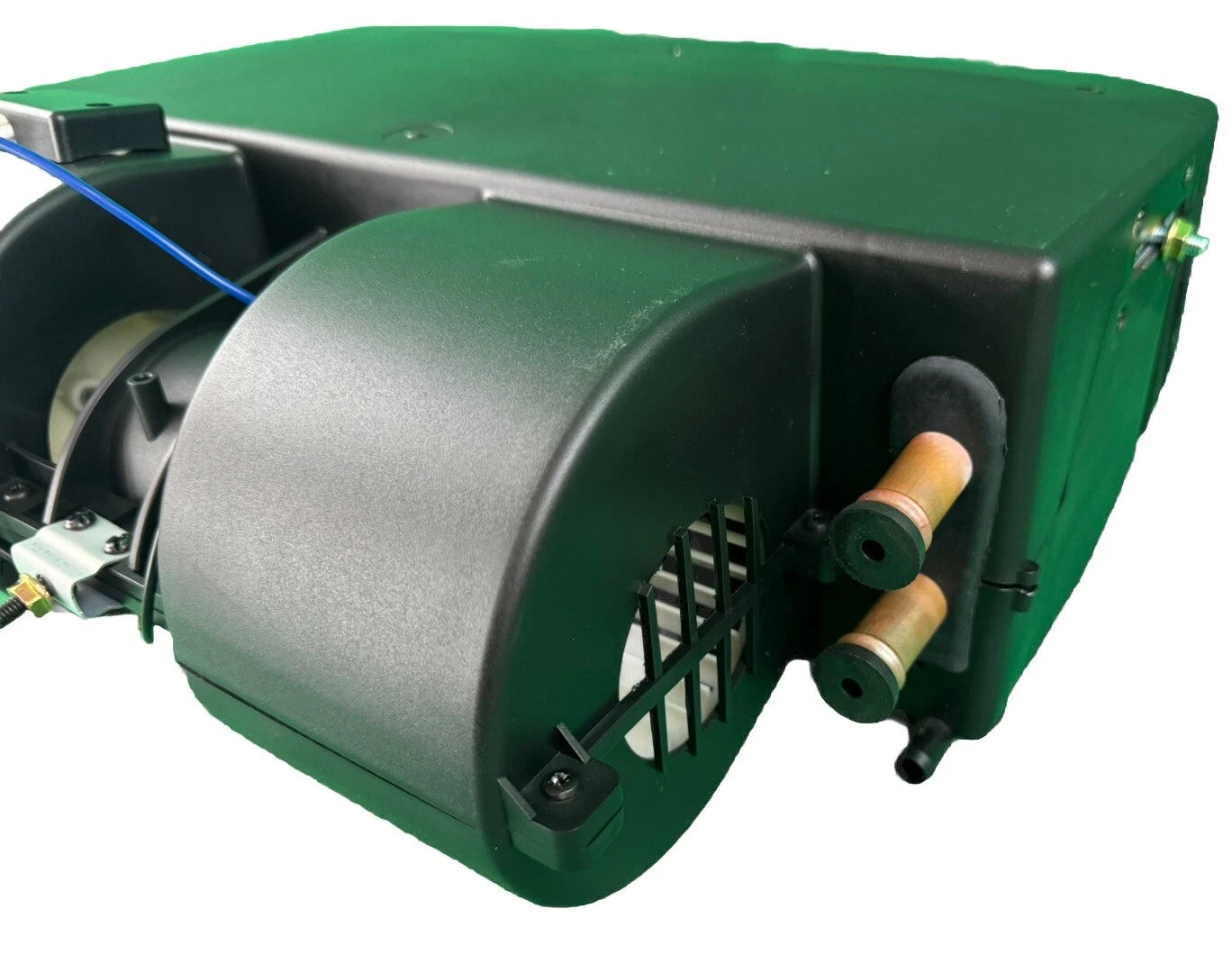

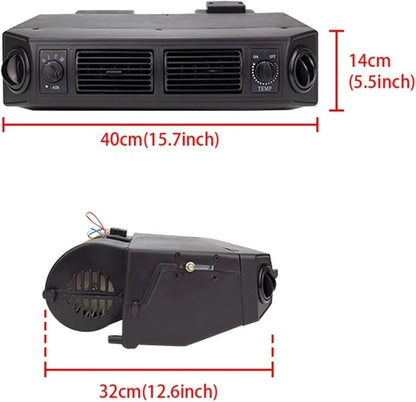

Universal Under-Dash Evaporator Unit

Model: E-404-100

Heat & Cool

32 pass 4way all aluminum coil

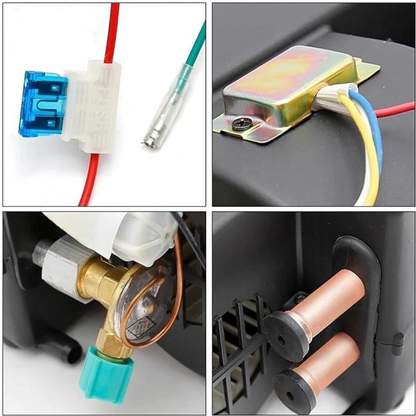

Expansion valve 1.5 Ton

Thermostat and rotative 3-speed blower switch

12 VOLTS DOUBLE SHAFT BLOWER MOTOR

Mounting bracket drain hose and T included

12,700 BTU capacity 359 CFM

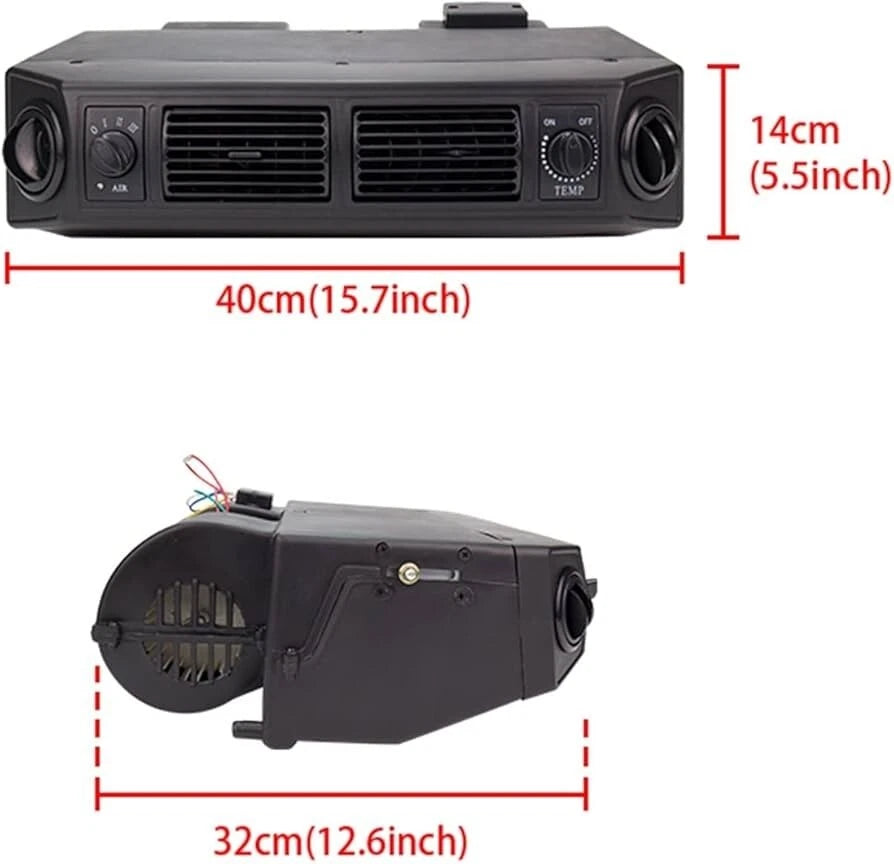

DIMENSIONS: L15¾" X D12½" X H6"

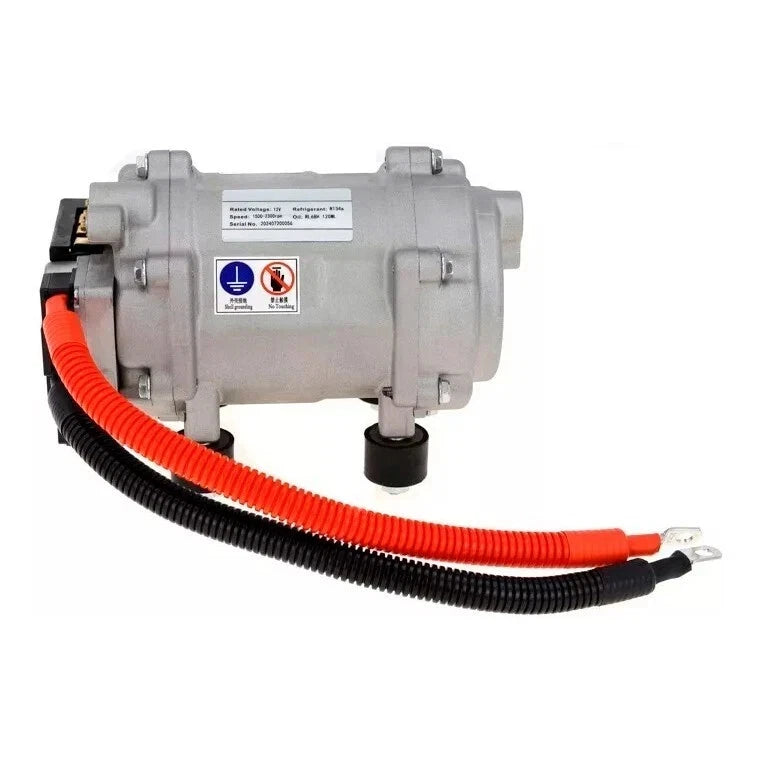

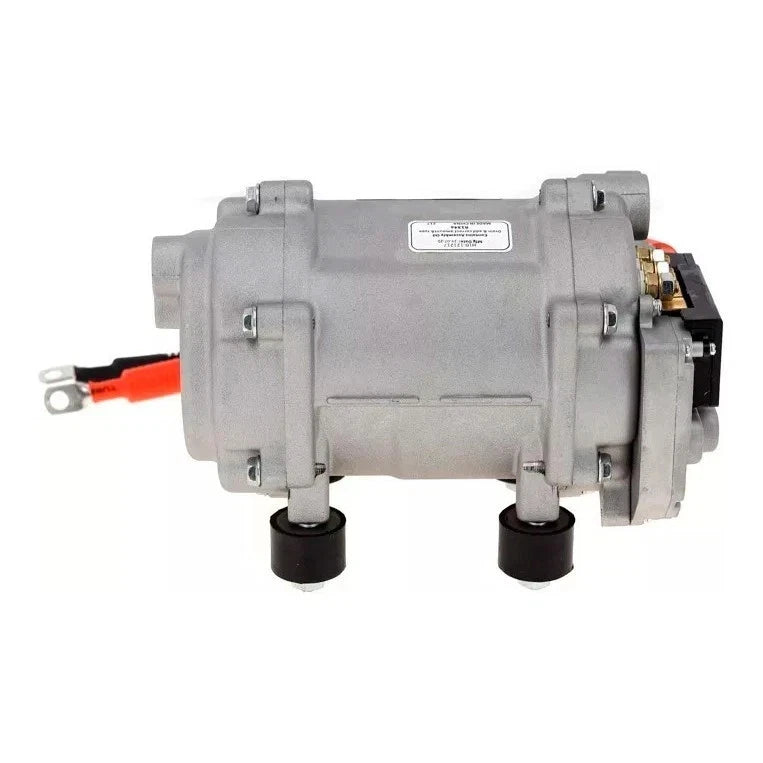

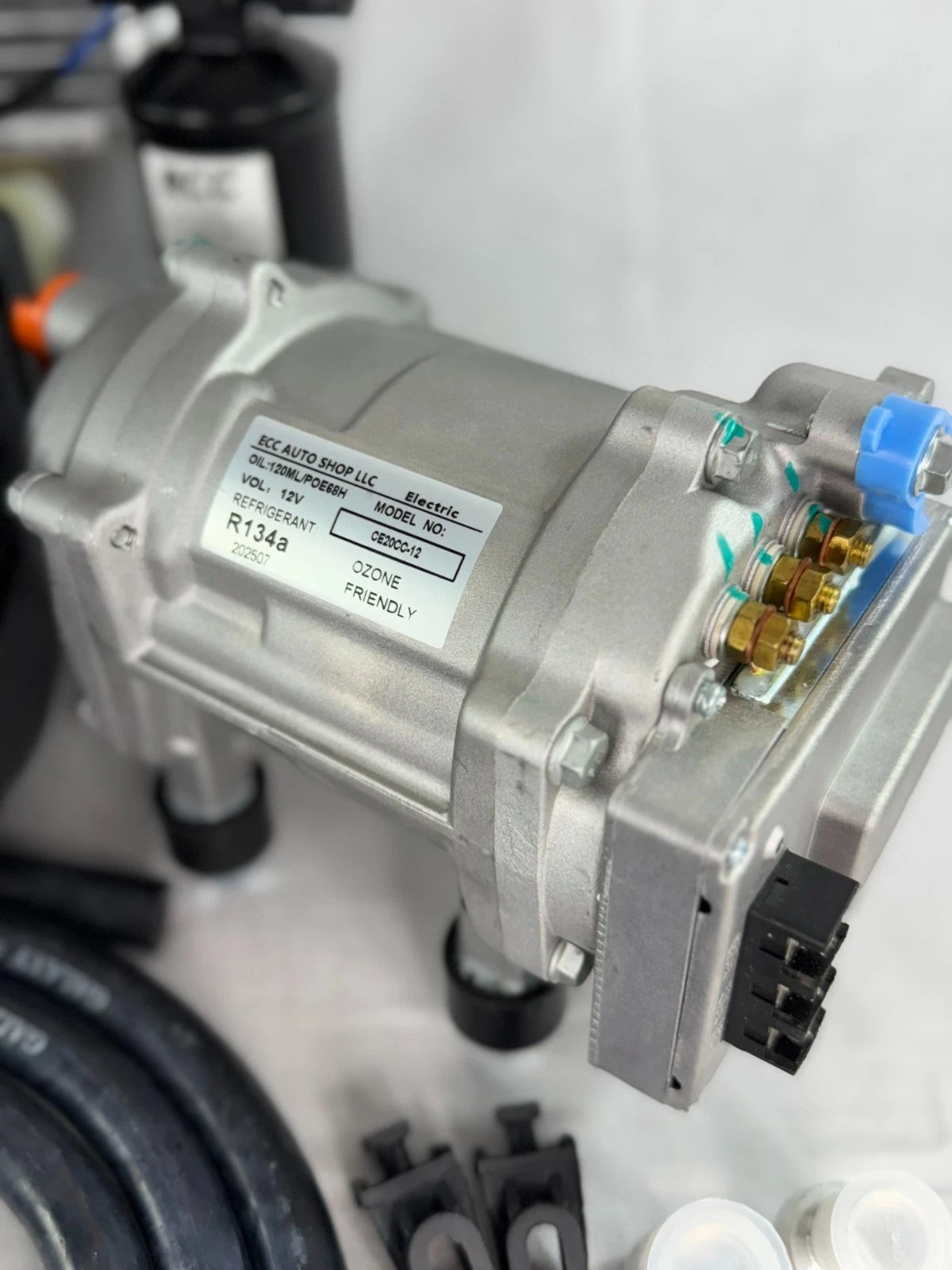

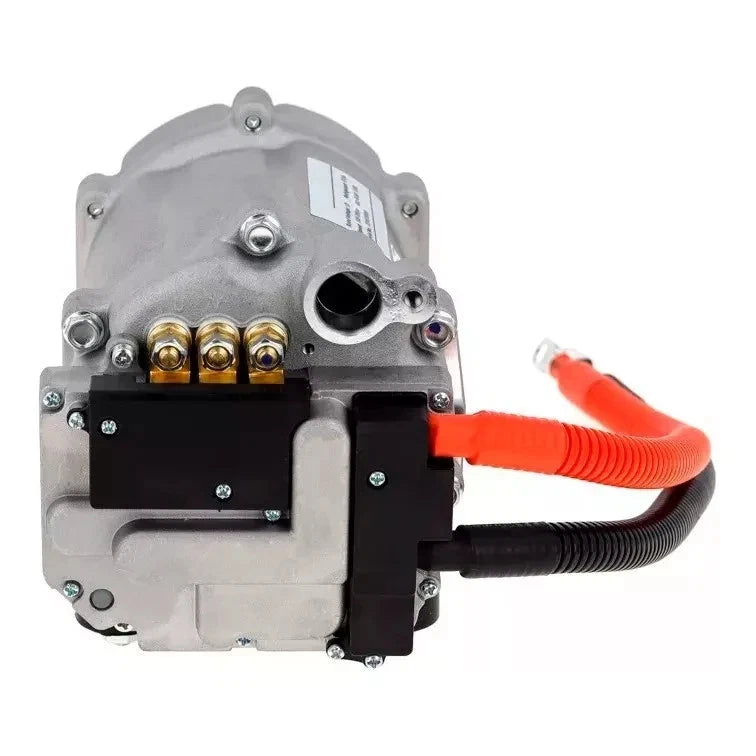

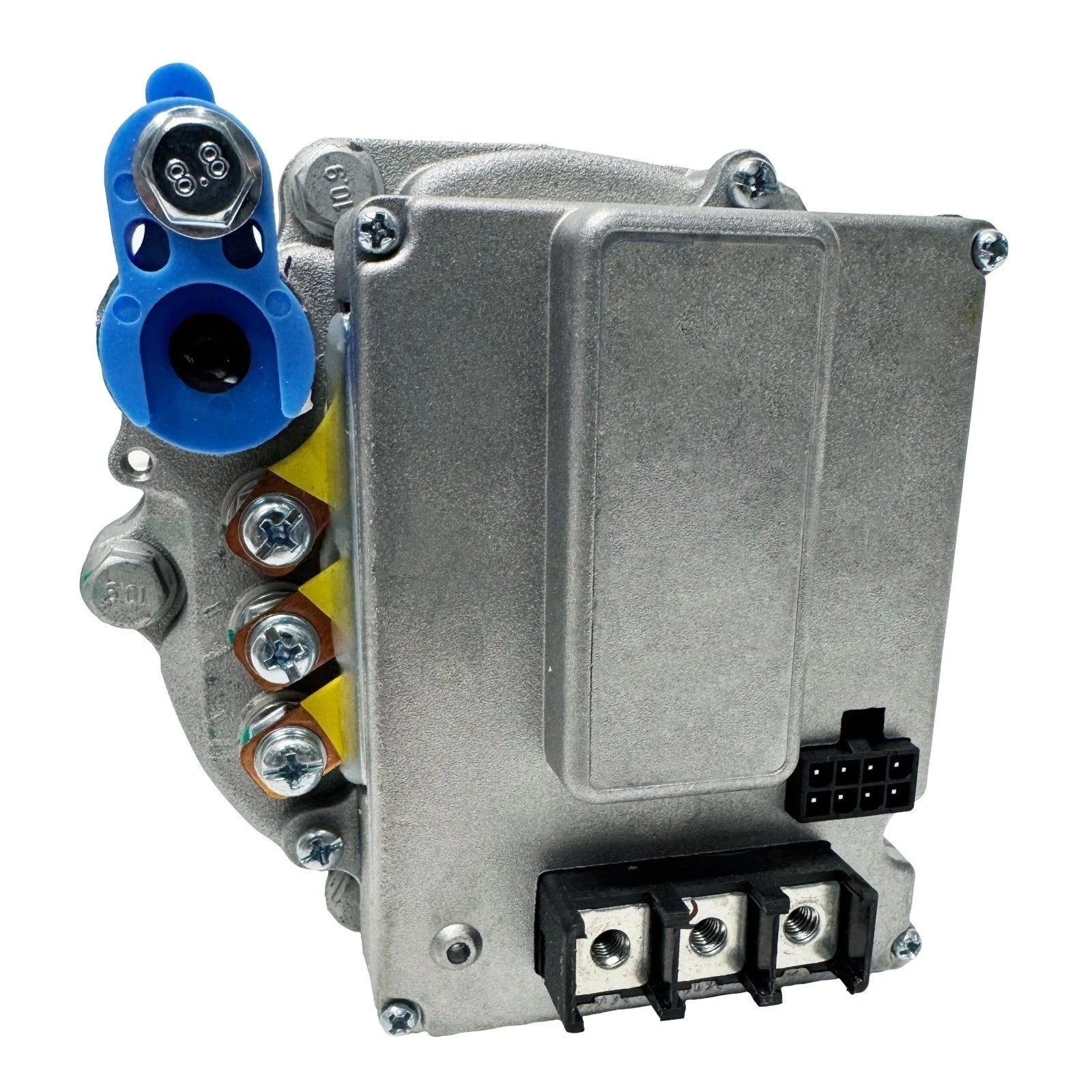

Compressor

MODEL: CE20CC-12



Compressor

⚡ 100% ELECTRIC 🔋 COMPRESSOR ⚙️

12 VOLTS DC WITH ELECTRICAL HARNESS

 Model: CE20CC-12

Compressor Model: CE20CC-12

Compressor type Integrated electric scroll compressor

Suitable refrigerant R134a

Compressor displacement 20cc/r

Oil injection quantity RL68H(POE)/120ml(or according to customer requirements)

Compressor driver Integrated

Motor type Permanent magnet DC speed regulating synchronous motor

Drive control Equipped with special controller

Insulation class Grade F

Total mass(oil) 4.7kg

Cooling mode Suction refrigerant cooling

Suction diameter/seal φ18.3/O ring radial seal

Exhaust port diameter/seal φ15.5/O ring radial seal

Speed range 1500 rpm~2300 rpm

Withstand Seal pressure 3.5MPa

pressure test Breaking pressure 6.5 MPa(high pressure side)/2.5 MPa(low pressure side)

Class of protection IP67 (compressor connectors and docking parts used together)



✅ Recommended Alternator  120 AMP IDLE SPEED ✅

 Also available BELT DRIVE:

Model: C5H142A12V SD508 5H14

Sanden Style 8PK SERPENTINE Pulley  12v coil



CONTACT US FOR SPECIAL ORDER

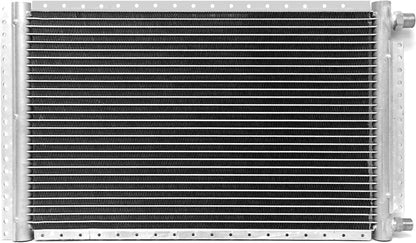

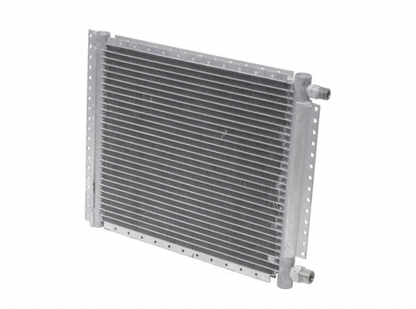

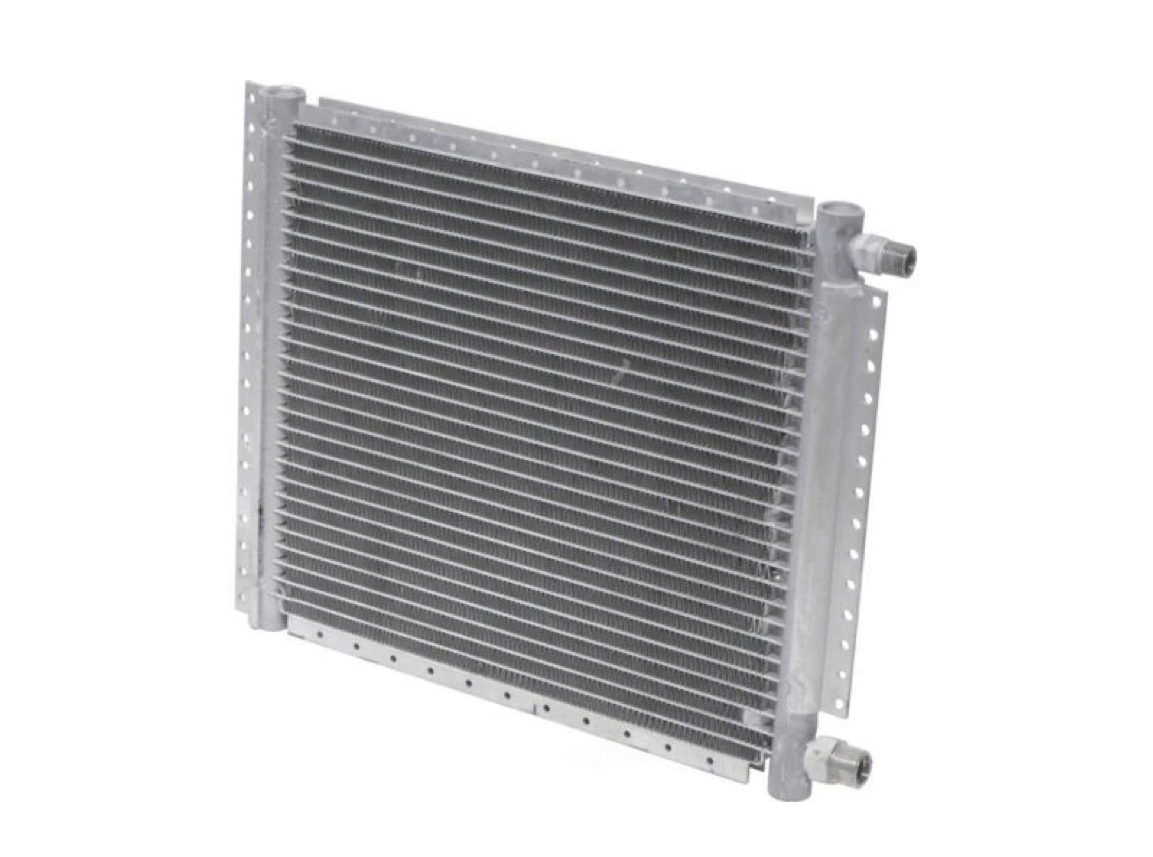

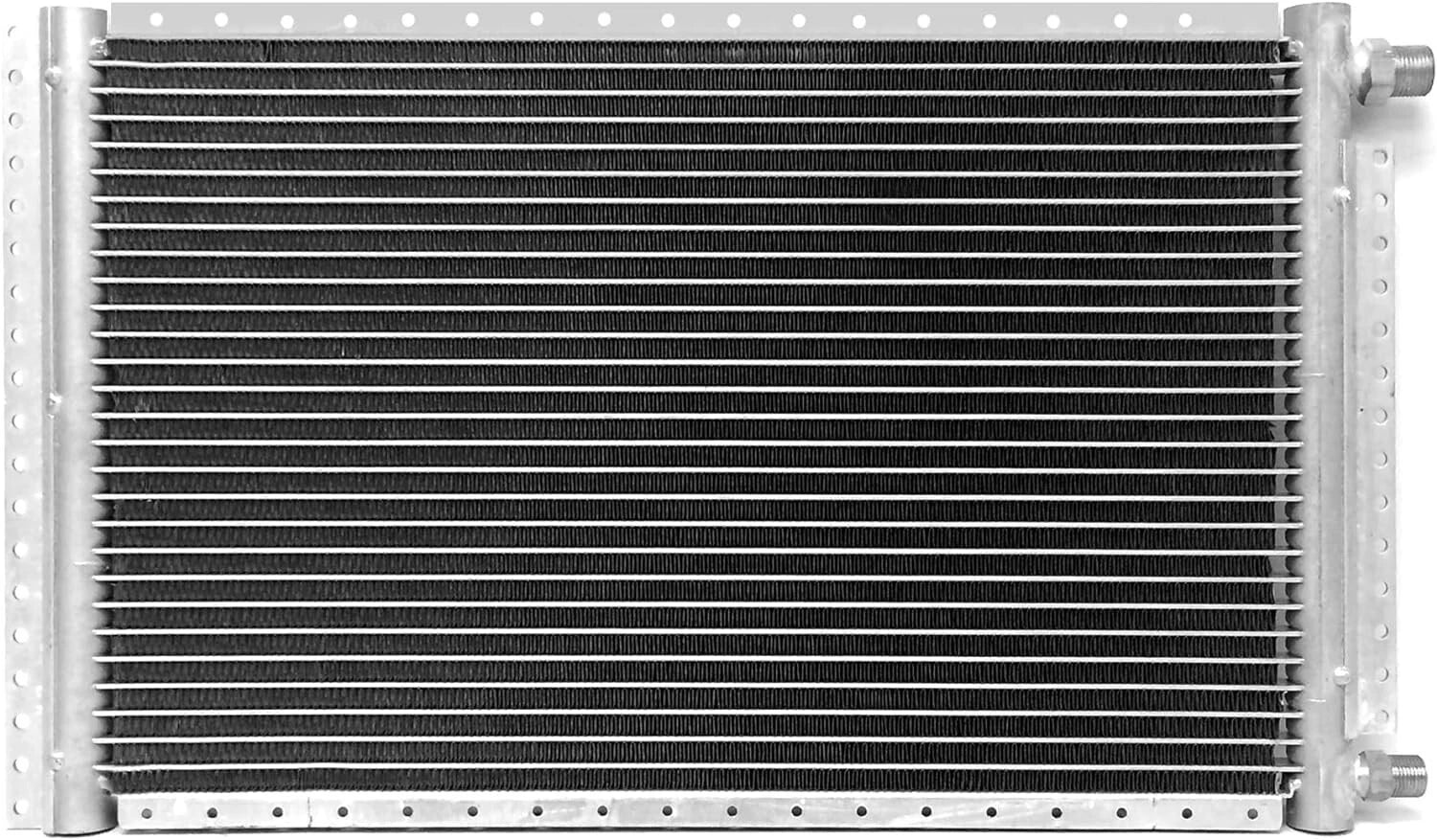

Condenser

Model: CPF141820

PARALLEL FLOW (micro-tube technology)

14"H X 18"L .70"(20mm)W

4 Rails Aluminum

#8 O-ring IN  #6 O-ring OUT

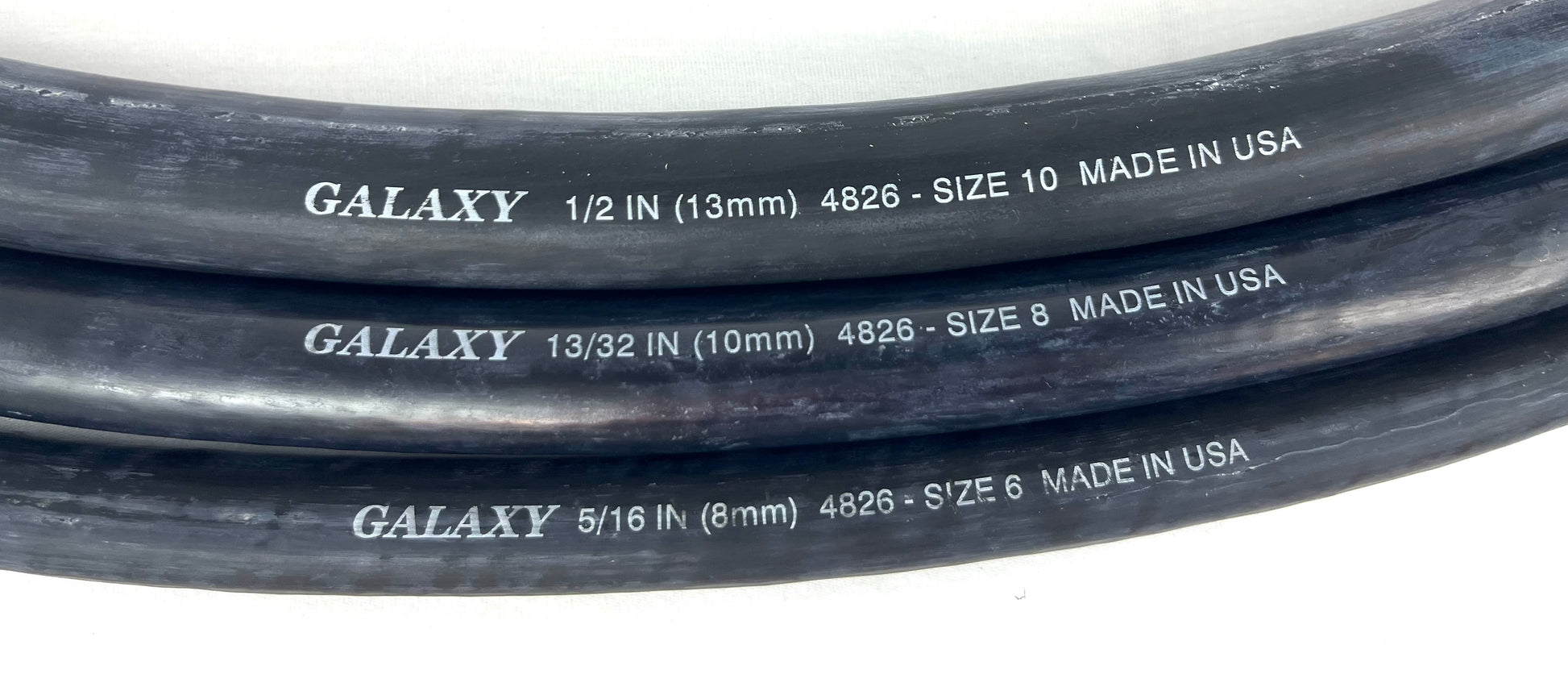

Hoses Set

Model: H6516,H81332, H1012

A/C HOSE

• #6 5/16 = 6'feet
• #8 13/32 = 4'feet
• #10 1/2 = 5' feet

(NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply)

Fitting Set

Model: FTSET404

• 1-N° 10 90° O-ring Fitting w/R134a Serv Port
• 1- N° 8 90° O-ring Fitting w/R134a Serv Port
• 1- N° 10 Straight O-ring Fitting
• 1- N° 10 90° O-ring Fitting
• 2- N° 6 90° O-ring Fitting
• 1- N° 8 90° O-ring Fitting
• 2- N° 6 Straight O-ring Fitting
• Set include metal FERRULES and CLAMPS

If you decided use a/c clamps you don't need special crimper tool

(YES... We include both systems)

O-ring set is included

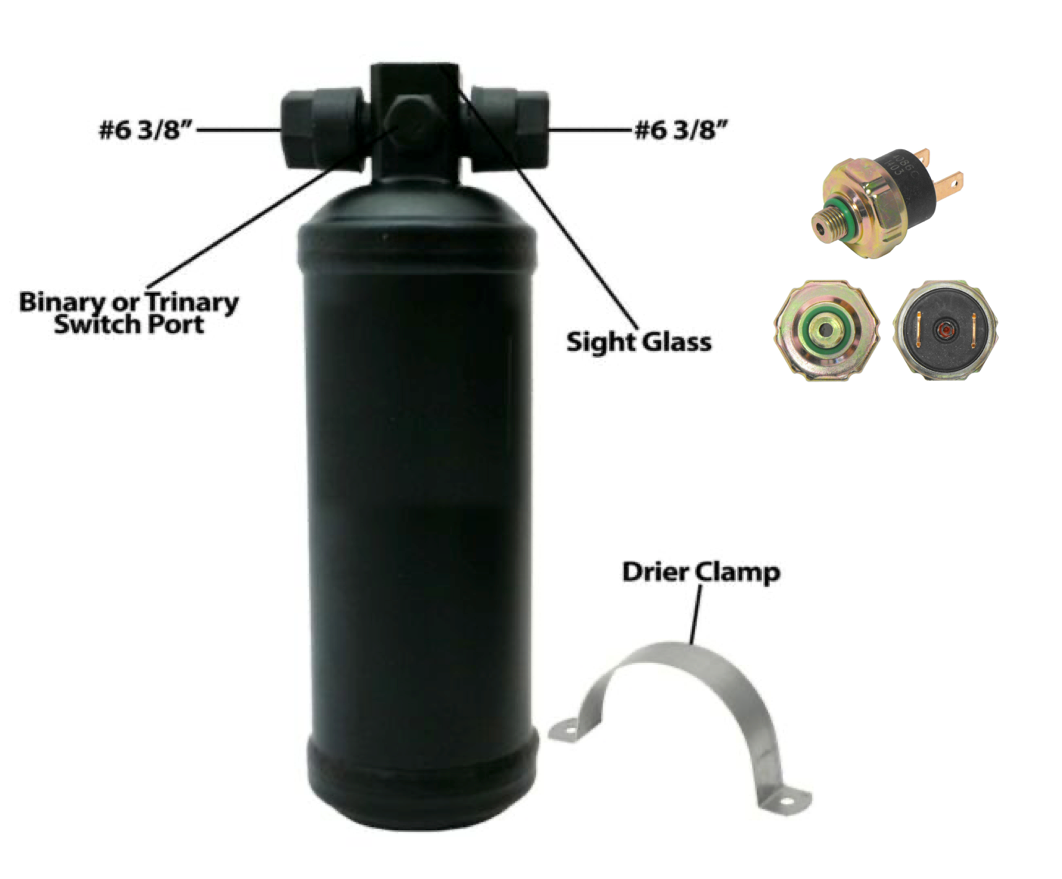

Filter Drier
Model: FD100B BLACK
2½"Diameter 7½"Hight  Sight Glass
#6 ⅜ X ⅜ O-ring connections both sides

(HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED)
 (NOTE: Aluminum or Black) if you have a preference let us know leaving a message

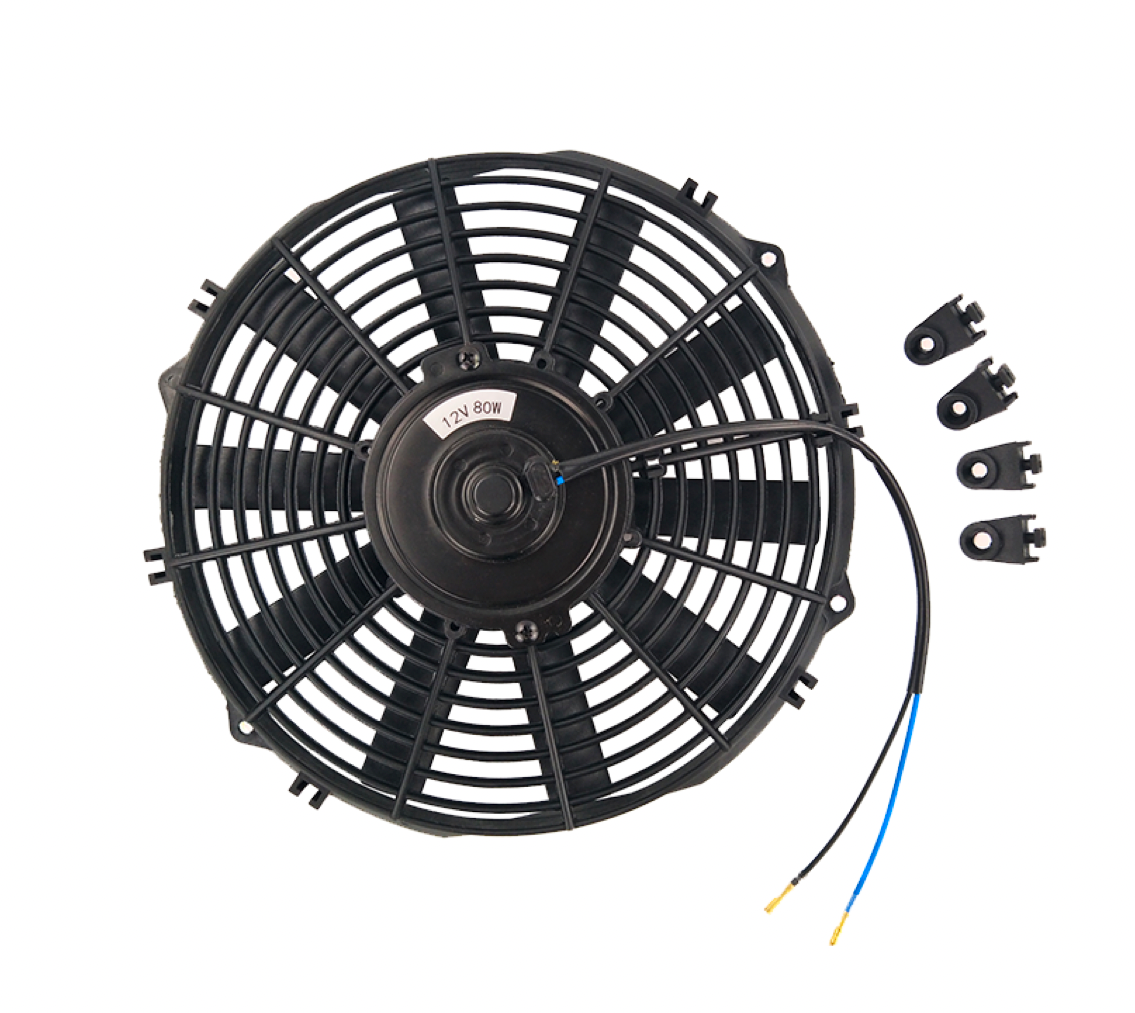

Condenser Fan

Model: CF1212
12" Diameter
12 Volts 80W 6 AMP
Reversible Puller or Pusher
4 Mounting Brackets included

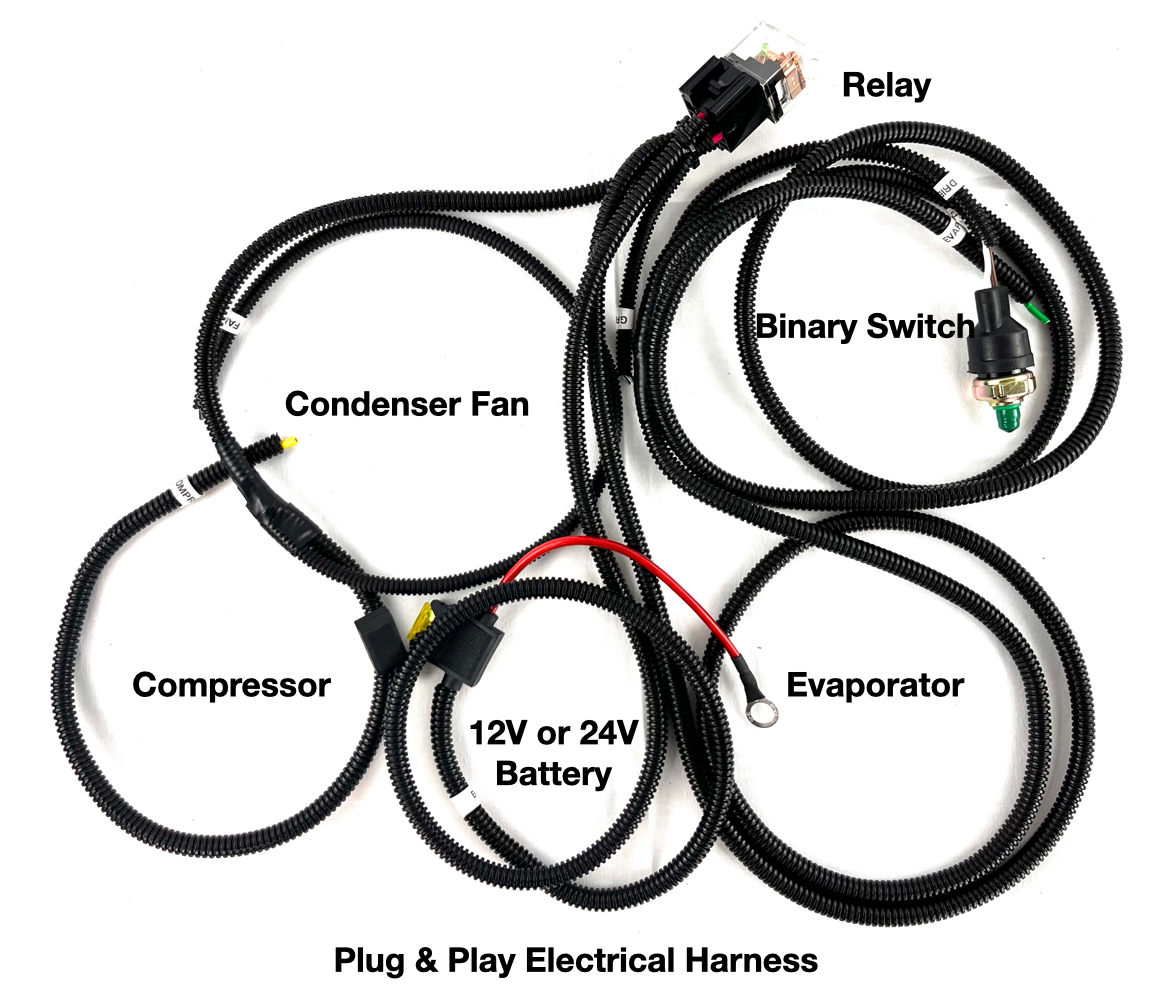

Electrical Harness

all ours kits come with   “Plug and Play”  Electrical harness to easily connect all the components designed for a regular size car or trucks applications.  for special Lengths applications please contact us extra charges maybe apply

 FAQ.... Please contact us we will be happy to help you make the best decision

 SE HABLA ESPAÑOL Located in Florida USA. Nationwide FREE shipping.



 FREE Shipping for continental U.S. only. International buyers, including Puerto Rico, Alaska, and Hawaii, Please contact for quote before buying.
We includes full DIY installation guidelines, also we can provide you a technical support over the phone or via email during the installation process no extra cost, even so we recommend that the installation be done by a certified professional We are not responsible for any damage caused to you or your vehicle.

Return policy, this item can be returned in its original condition and package for a full refund or replacement within 30 days

Please Note: Gas R134a, compressor mounting bracket, heater hoses, and control valve are not included (sold separately).
We can help you source any extra parts for special applications, including brackets, belts, fittings, adapters, connectors, and more.

✅ Easy to find compatible components
✅ Support for custom setups
